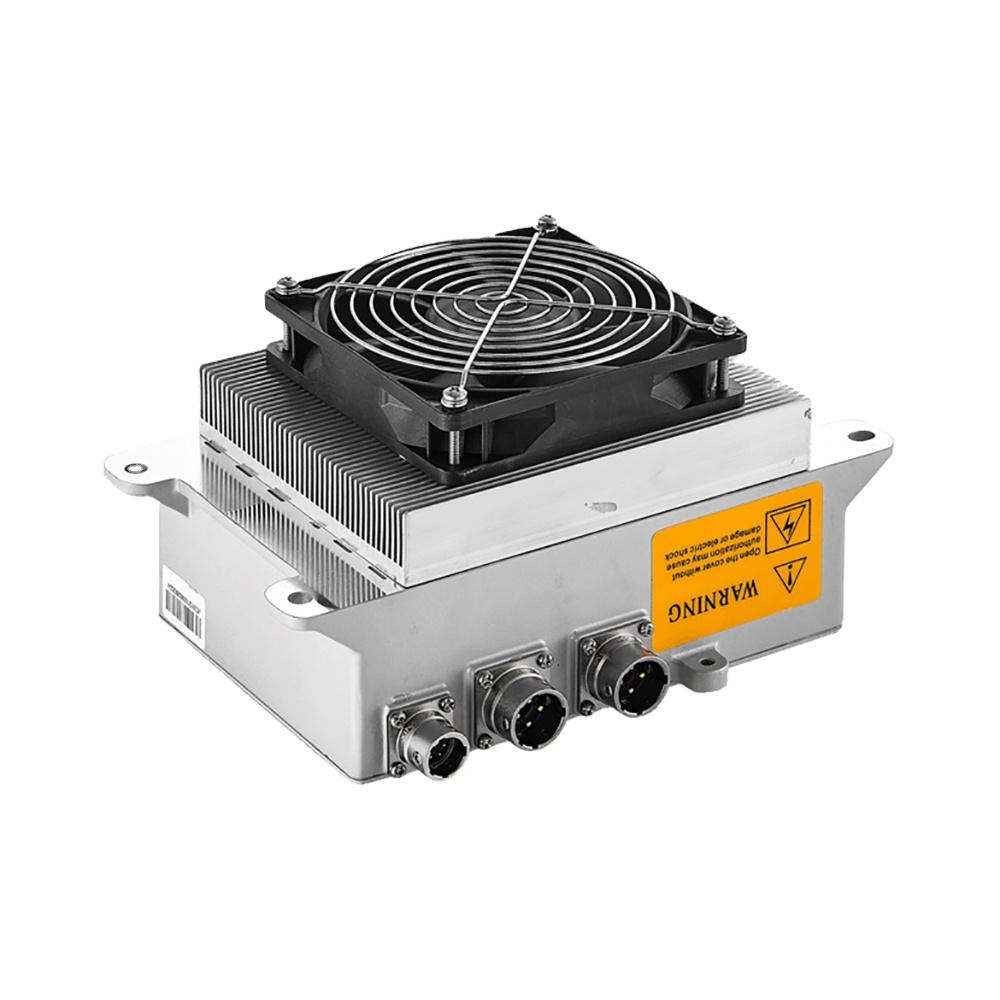

3.3KW On Board Battery Charger/OBC portable ev charger

3.3KW On Board Battery Charger/OBC portable ev charger
Product Details:
Place of Origin: China
Brand Name: On Board Battery Charger
Certification: CE
Model Number: 3.3KW On Board Battery Charger
Payment & Shipping Terms:
Retail Price: 550 USD
Wholesale Price: Negotiable
Packaging Details: Customized plywood cases
Payment Terms: T/T
Details
Input Voltage: AC 90~265V Rated Power: 3.3KW
Output Voltage: 18-68VDC/25-99VDC/34-132VDC/50-198VDC/110-440VDC/170-650VDC Output Current: 40A/40A/32A/23A/10A/6A
Dimension: 148x98x27(mm) Weight: 5.2kg

Description

3.3KW On Board Battery Charger/OBC Charger


An on board battery charger is used in an electric vehicle (EV) or hybrid electric vehicle (HEV) to charge the traction battery. The On-Board charger system described in the material below converts the AC input from the grid to a DC input which charges the battery.


Product Description:
CAN bus communication system is adopted to charge the power battery of ev safely and automatically.The On Board Battery Charger dynamically adjusts the charging current or voltage based on information from the battery management system (BMS).Charger can receive a variety of charging parameters, and has the automatic wake up function, real-time report charger related information and status.
OBC Charger can also control the maximum input current, with stable charging, high conversion efficiency, a variety of protection functions, safe and reliable, strong seismic capacity and other characteristics.





Parameter Specification:

Item

Data

Input

Product Name

3.3kw LiFePO4 charger

AC Input Range

AC 90~265V

Frequency

45-65Hz

Input current

≤16A

power factor

≥0.99 Half loading

Efficiency

≥93 Full loading

Dimension

148x98x27(mm)


standby consumption

≤10W

Main Output

Output mode

CV/CC

Output Voltage

3300W@220VAC;1600W@110VAC

CV Accuracy

±1%

CC Accuracy

±2%

Work environment

reletive temp 5%~95% nocondensation

Working temperature

-35℃~+85℃

Storage temperature

-55℃~+100℃






Detailed Images:

3.3KW OBC Charger.jpg

OBC Charger.jpg

On Board Battery Charger.jpg
