1.125A Car Charger Cable ev Connector Portable Home Fast Charger
Product model：DSD-EV125/250P
Rated voltage：400V/750 DC
Rated current：125A/250A
Details:
DC charging socket
Features
1. Comply with the standards and requirements of the charging of electric vehicle charging interface"discussion paper
2 beautiful shape and support before installation mode
3. Superior protective performance, protection grade IP55 (working condition)
Reliability of materials, fire-retardant, environmental protection, wear-resistant, anti-UV
Electrical performance:
Rated operating current: 125A/250A
2 Operating voltage: 400V/750 DC
Insulation resistance:> 2000MΩ (DC500V)
4. Terminal temperature rise: <50K
5. Withstand voltage: 3200V
Vibration resistance: comply with the requirements of JDQ53.36.1.1-53.36.1.2
Contact resistance: 0.5mΩ Max
Mechanical behavior:
1. Mechanical life: no load-swappable> 10000
2. Coupling insertion force: ≤ 160N
Material application:
1 Case Material: thermoplastic flammability rating UL94V-0
Pin: copper alloy, the surface of the silver-plated + top of thermoplastics
3 seals: rubber or silicone
Ambient temperature
Working environment temperature: -30 ℃ ~~ +50 ° C
Contact parameters and functions defined
2.Parameter Specification:
The contact Number / label | Functional definition |
1-（DC+） | Connect the DC power supply and battery positive |
2-（DC-） | DC power supply is connected to battery negative |
3- (PE) | Connected powered device ground and the vehicle chassis ground |
4-(S+) | Charging communication CAN_H |
5-(S-) | Charging communication CAN_L |
6-(↓) | CAN communication with shielded cable |
7-(A+) | Non-car charger for electric vehicles, low-voltage auxiliary power is |
8-(A-) | Low-voltage auxiliary power negative non-car charger for electric vehicles |
Model | Contact No | Wiring specifications | Remark |
DSH-EV125S | 8 | 2*25mm2+1*16mm2+2*2.5mm2+2*0.75mm2 | Cable length is configured according to the customer |
DSH-EV250S | 8 | 2*50mm2+1*16mm2+2*2.5mm2+2*0.75mm2 |

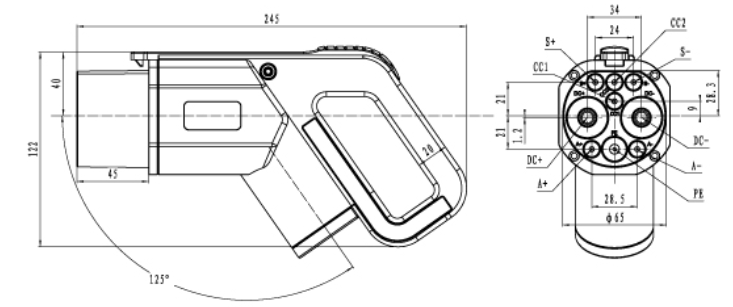

3.Detailed Images：
