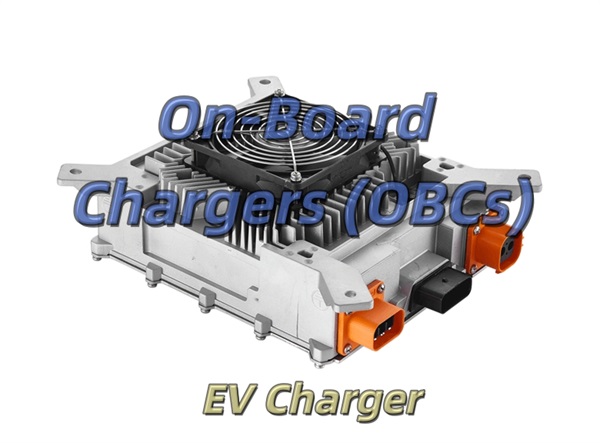

The electric vehicle (EV) revolution has accelerated advancements in charging technology, with the on-board charger (OBC) playing a pivotal role in the charging process. Integrated directly into EVs, the OBC converts alternating current (AC) from the power grid into direct current (DC) to charge the vehicle’s battery efficiently. This article explores the key performance aspects of on-board chargers, including efficiency, power ratings, charging modes, safety features, and smart capabilities, highlighting their importance in the evolving EV ecosystem.

1. Efficiency and Power: The Core of OBC Performance

High Efficiency for Optimal Energy Use

The efficiency of an on-board charger determines how effectively it converts AC power to DC with minimal energy loss. Modern OBCs achieve efficiencies of 90% or higher, thanks to advanced power electronics and thermal management. Higher efficiency not only reduces electricity waste but also lowers operational costs for EV owners.

Power Ratings: Faster Charging with Higher kW

The power rating of an OBC, measured in kilowatts (kW), directly impacts charging speed. Most EVs today feature OBCs ranging from:

• ● 3.3 kW to 7.4 kW (common in entry-level EVs)

• ● 11 kW to 22 kW (found in premium models for faster AC charging)

Higher power ratings enable quicker battery replenishment, making EVs more convenient for daily use.

2. Charging Modes: Flexibility for Different Needs

On-board chargers support multiple charging modes to accommodate various scenarios:

Level 1 Charging (Trickle Charging)

• ● Uses a standard 120V household outlet

• ● Adds 3-5 miles of range per hour

• ● Ideal for overnight charging or emergency top-ups

Level 2 Charging (Faster AC Charging)

• ● Requires a 240V outlet (common in homes and public stations)

• ● Delivers 15-60 miles of range per hour

• ● The most practical solution for daily EV charging

DC Fast Charging (Bypassing the OBC)

• ● Uses high-power DC stations (50 kW to 350 kW)

• ● Directly charges the battery, skipping the OBC

• ● Provides 80% charge in 20-40 minutes

• ● Best for long-distance travel and rapid recharging

3. Thermal Management and Safety Features

Efficient Cooling Systems

Prolonged charging generates heat, which can degrade performance. Modern OBCs use:

• ● Liquid cooling (for high-power chargers)

• ● Active air cooling (for standard models)
  These systems maintain optimal temperatures, ensuring consistent charging speeds and longer component lifespan.

Built-in Safety Protections

OBCs incorporate multiple safeguards, including:

• ● Overvoltage & overcurrent protection

• ● Short-circuit prevention

• ● Temperature monitoring & automatic shutdown
  Additionally, they comply with UL, IEC, and other safety certifications, ensuring reliable operation.

4. Smart Charging and Vehicle Integration

Seamless Communication with BMS & Powertrain

The OBC works closely with the Battery Management System (BMS) and vehicle control unit to:

• ● Optimize charging rates based on battery health

• ● Prevent overcharging or deep discharging

• ● Enable bidirectional charging (V2G/V2H) in some models

Smart Grid & Connected Charging

With IoT-enabled OBCs, EVs can:

• ● Schedule charging during off-peak hours for lower electricity costs

• ● Integrate with renewable energy sources (solar/wind)

• ● Support vehicle-to-grid (V2G) energy sharing

Conclusion: The Future of On-Board Chargers

As EVLithiumcharger evolve, on-board chargers are becoming more efficient, powerful, and intelligent. Innovations like higher power density, bidirectional charging, and AI-driven optimization will further enhance their role in the EV ecosystem. For consumers, this means faster, safer, and smarter charging—key factors driving the mass adoption of electric vehicles.

By understanding the capabilities and advancements in OBC technology, EV owners and enthusiasts can make informed decisions about their charging needs, ensuring optimal performance and sustainability.
