An on board charger (OBC) plays a vital role in electric vehicles (EVs) by converting alternating current (AC) from the power grid into direct current (DC) needed to charge the vehicle’s battery pack. Understanding the types, characteristics and working principles of onboard chargers is conducive to a deeper understanding of how electric vehicles effectively utilize external power sources.

What is on board charger?

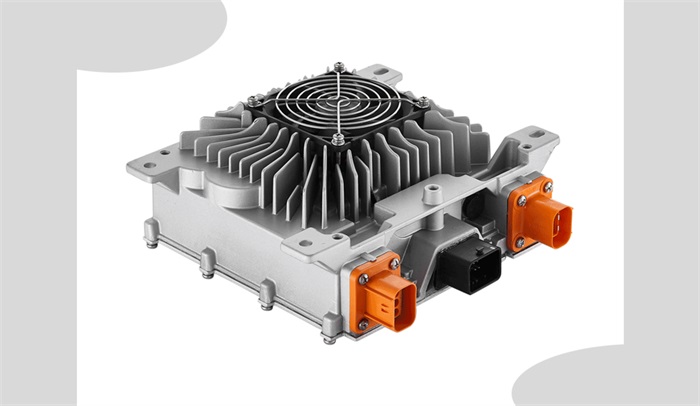

As the core of electric vehicle (EV) technology, the on-board charger (OBC) plays a critical role in managing the charging process, ensuring efficient and safe charging of the vehicle's battery.

The type characteristics of the on board charger electric vehicle

Electric vehicles (EVs) feature onboard chargers (OBCs) with varying charging capabilities and characteristics to meet diverse owner needs. Let's discuss its types and characteristics.

On board Charger (OBC) Configurations: Single-Phase vs. Three-Phase

For residential applications without three-phase power, single-phase OBCs are commonly employed, delivering charging capacities between 7.2 kW and 11 kW. In contrast, three-phase OBCs provide enhanced charging performance with capacities reaching 22 kW, though they necessitate three-phase electrical infrastructure, rendering them particularly suitable for commercial and industrial environments.

Classification of Charging Levels

● Level 1 Charging: Employing conventional 120V AC power sources, complete charging cycles typically require 8-12 hours

● Level 2 Charging: Utilizing 240V AC circuits substantially decreases charging duration to 4-8 hours

● Level 3 Charging (DC Fast Charging): Through direct DC current delivery to the battery system, charging intervals are dramatically reduced to merely 30-60 minutes

Emerging Industry Developments

Standardization initiatives are progressing toward establishing 11kW OBCs as the norm for BEVs, with PHEVs adopting 6-8kW configurations. The integration of DC charging functionality (50-250kW capacity) is anticipated to become ubiquitous across BEV platforms. While premium vehicle segments may incorporate ultra-high-speed 350kW+ DC charging solutions, mainstream BEVs are projected to feature comprehensive charging systems supporting both AC and DC protocols, accommodating evolving battery architectures and charging network expansion.

Understanding the Working Principle of Automotive On-Board Chargers

To gain a deeper understanding of any subject, one must start by learning its fundamental operational logic. Just as when using your vehicle, if you wish to understand the on-board charger and utilize it more effectively, you must first comprehend how the on-board charger works.

Conversion Process

The vehicle's battery requires direct current (DC), which the OBC supplies by converting grid-supplied alternating current (AC). This conversion occurs through two critical stages:

● Power Factor Correction (PFC): Transforms AC to DC with optimized energy efficiency

● DC/DC Conversion: Regulates output voltage and current to match battery requirements

Communication and Safety Systems

Through continuous communication with both the vehicle's control system and charging station, the OBC establishes ideal charging parameters - including power levels and protocol compliance (e.g., SAE J1772 or CCS standards). Integrated protection systems guard against potential hazards like overcharging, thermal overload, and electrical anomalies to maintain operational safety.

Advanced Bidirectional Functionality

Modern OBCs increasingly feature bidirectional power conversion, enabling:

● V2L (Vehicle-to-Load): Powering external AC devices using the vehicle's battery

● V2G (Vehicle-to-Grid): Feeding electricity back into the power grid for energy management

● V2V (Vehicle-to-Vehicle): Direct energy transfer between electric vehicles

These operational characteristics demonstrate the OBC's pivotal role in enhancing EV performance, safety standards, and energy ecosystem integration, underscoring its technological significance in electric mobility solutions.

Recognizing different on board battery types and comprehending their operational mechanisms constitutes the essential first step toward effectively utilizing external power sources through vehicle charging systems.

FAQs

What is an On board Charger in Electric Vehicles?

The on board charger (OBC) serves as a vital power conversion system in electric vehicles, converting external AC power to the DC current required for battery charging.

How Does an On board Charger Work in EVs?

The on board charger (OBC) performs the critical AC-to-DC power conversion needed to charge an EV's battery pack, typically drawing electricity from standard power outlets.

How Do On board and Offboard EV Chargers Differ?

The fundamental distinction between onboard and off board EV chargers lies in their installation location and operational flexibility. Onboard chargers (OBCs), integrated within the vehicle, enable charging through standard electrical outlets, offering unmatched portability and convenience. Conversely, offboard chargers benefit from not being subject to vehicle space and weight limitations, allowing for greater power capacity and system redundancy in their power electronic converters.

What Benefits Do On board Chargers Provide?

On board chargers (OBC) boost EV charging efficiency using three key technologies: LLC converters reduce energy loss, active PFC maximizes grid power use, and Vienna rectifiers enable compact AC/DC conversion. Together, they deliver faster, more efficient charging with improved reliability.
