|Input Voltage:||AC 220V||Rated Power:||7KW|
|Output Voltage:||Output Current:||32A|
一、Functions and Features
We are using 32-bit high-performance embedded industrial-grade processor as the central controller.
AC output configuration AC smart meter can be AC charging power measurement.
Adopt contactless swipe card device, instant debit, hardware encryption authentication processing of the card to ensure the security of card account data, and optional sweep QR code payment, cell phone APP payment.
Adopt 4.3 inch LCD touch screen, and the interface colour is bright, can realize the display of outdoor high brightness environment, and can adapt to the low-temperature setting. The charging mode is flexible. You can choose automatic charging by time, charging by amount, charging by amount, and charging by appointment. With perfect charging protection function, high safety, input over/under voltage, abnormal connection, emergency stop and other protection functions. Lightning protection, leakage, short circuit, overcurrent, ground fault, communication abnormalities and other protective measures.
The charging pile is equipped with an external communication function, RS-485 interface is standard, and Ethernet or 4G is optional. Charging information, equipment status information, etc., can be uploaded to the backend monitoring system. It can also receive and execute control commands from the backend monitoring system.

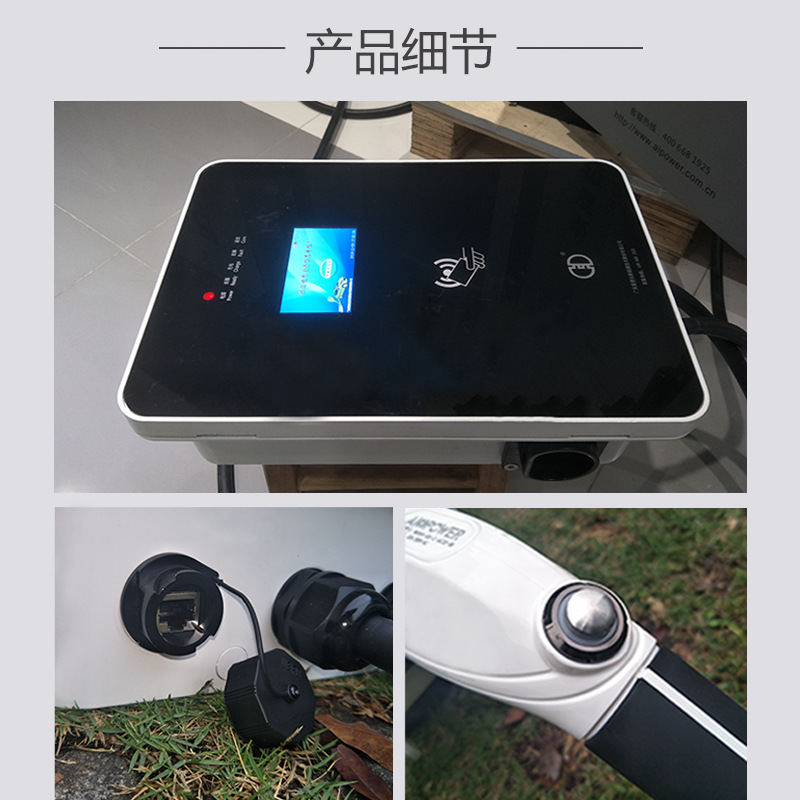

4.3 inch touch screen
RS485/ CAN/ RS232 optional
Charging Connectors meet the standard of GB/T 20234.2-2015
Rated Residual Operating Current
Support automatic mode, time mode, capacity mode, amount mode, etc
5-95%, No condensation
RFID card /QR code /APP payment (optional)
Ethernet module /4G module (optional)
Standard Power cord, about 5 meters
