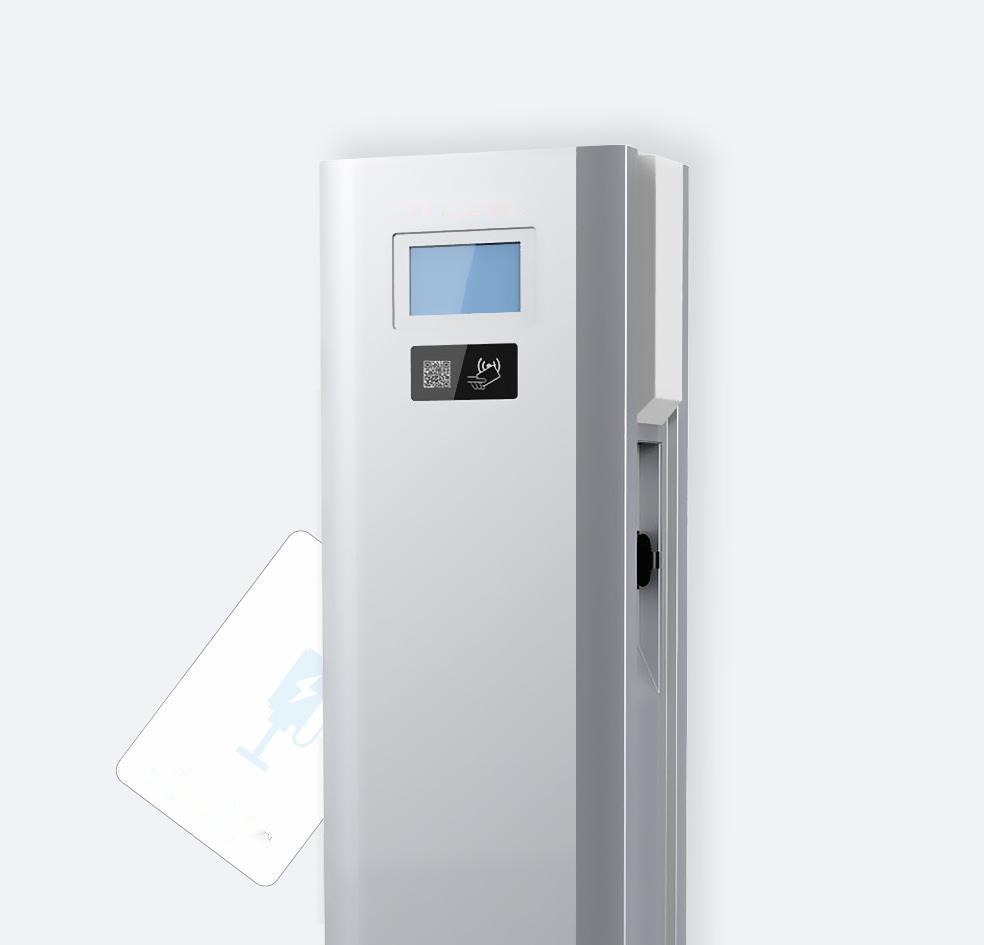

Vertical AC Charging pile

Vertical AC Charging pile
Product Details:
Place of Origin: China
Brand Name: EVL
Certification: CE
Model Number:
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms:
Details
Input Voltage: Rated Power:
Output Voltage: Output Current:
Dimension: Weight:

Description

SMART CHARGING MANAGEMENT, MAKE CHARGING MORE WORRY-FREE

leading technology level provides managers with easy and reliable system solutions to reduce management costs and effectively address parking and charging management issues.


Model

EVSE926

EVSE932

EVSE927

EVSE937

Input Voltage

AC 220V

AC 380V

AC 220V

AC 380V

Rated Current

32A

63A

32A

32A

Power

7KW

42KW

7KW

21KW

Screen

7 inch touch screen

7 inch touch screen

7 inch touch screen

7 inch touch screen

Energy Meter

2.0 level multi-function AC energy meter

Communication

Optional RS-485/CAN/RS232

Standard

National standard GB/T20234-2015

Undervoltage Protection

≤176VAC

≤304VAC

≤176VAC

≤304VAC

Overvoltage Protection

≥264VAC

≥480VAC

≥264VAC

≥480VAC

Overload Protection

≥35.2A

≥78A

≥35.2A

≥35.2A

Rated Residual Operating Current

30mA

30mA

30mA

30mA

Rated Residual Current Breaking time

≤0.1S

≤0.1S

≤0.1S

≤0.1S

Charging Mode

Automatically fill, press time, press battery, press amount, etc.

IP Grade

IP54

Operation Temperature

-20℃~+55℃

Storage Temperature

-40℃~+60℃

Altitude

≤2000M

Relative Humidity

5%~95%No condensation

Connector's Life

≥10000 Times

MTBF

MTBF≥8796h

Payment System

Have

Connectot/Outlet

Single gun / double gun optional, rechargeable gun / charging stand optional

DimensionH×W×D

1500×400×140mm

1500×400×170mm

Billing

RFID card / scan QR code / APP payment (optional)

APP

Ethernet module / 4G module (optional)
