24V 100A forklift charger Portable Lithium Battery Charger

24V 100A forklift charger Portable Lithium Battery Charger
Product Details:
Place of Origin: China
Brand Name: Forklift Battery charger
Certification: CE
Model Number: 24v 100A forklift charger
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: Wooden box or carton
Payment Terms: T/T
Details
Input Voltage: 85-265VAC Rated Power: 3KW
Output Voltage: 24V Output Current: 100A
Dimension: 350*201* 151 Weight: 7kg

Description

24V 100A forklift charger Portable Lithium Battery Charger


High Efficiency, High Power Density

Wide working voltage

low input harmonics

wide operating temperature

Support hot-swappable and parallel functions Perfect fault detection tips




Daily inspection:

Do not remove the outer cover when powered on, and visually check the operation of the charger from the outside to confirm that there is no abnormal situation. The following points are usually checked.

(1) The operating performance meets the standards and specifications;

(2) The surrounding environment conforms to the standards and specifications (see the use environment);

(3) The panel instrument shows that all the function switches are normal;

(4) No abnormal voice, vibration and smell;

(5) Whether the fan is running normally;

(6) No abnormal conditions such as overheating or discoloration;

(7) Whether the input voltage is in the normal working range;

(8) Whether the connecting line joints are fastened.




Forklift Charger Specification Sheet:


MODEL

3KW24100

Rated Input Voltage Range

85-265VAC

Rated input frequency

50/60Hz

Input power

≤3.2KVA

Maximum input current

≤17A

Maximum conversion efficiency

≥93%

Rated output voltage

24V

Rated output current

100A

Rated output power

100A@220VAC

50A@110VAC

Output and input plug specifications.

Customized according to customer requirements.

Communication

CAN BUS

Output Voltage Range

18-30V

Cooling method

Forced air cooling.

Operating temperature.

Full power output at -40°C to 50°C.

Derating output from 50°C to 75°C.

Relative humidity

10%-90% non-condensing.

Protection level

IP20

Noise.

≤55dB

Altitude

Below 2000m.

Weight

7kg (for reference only, please refer to actual measurement).



Dimension

350*201* 151

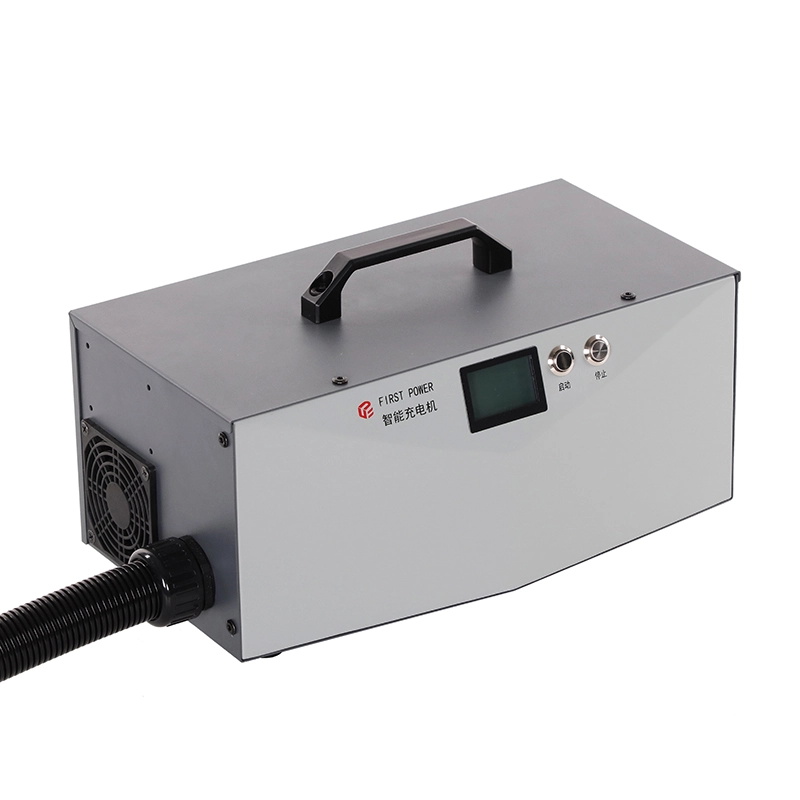

Forklift charger picture:

forklift charger.jpg3kw forklift charger.jpg

forklift battery charger.jpgforklift charger station.jpg




FAQ

Q1: What is our products advantage?

A: Company R&D team's twenty years of on-board charger, DC/DC converter research and development technology and process accumulation have formed a mature standardized software and hardware platform.


Q2: Is CAN Communication available?

A:Yes, optional


Q3: Safety Protection?

A:Yes, our charger takes very solid safety protection design.


Q4. What is your terms of payment?

A: 100%T/T in advance before shipment is Preferred, it is negotiable.


Q5: How to maintain the forklift charger?

A: The charger adjusts and cleans the sediment of the air inlet outlet every 10 days (according to the environmental conditions), so that the air inlet window is unimpeded and the air flow is maintained, which is conducive to the heat dissipation of the whole machine
