RV battery charger 3.3KW HK-M 114V 23A Enforce air cooling TC charger

Certification
280AH-CB
GBS-CE
CATL-UL
Customer Reviews
EVLithiumCharger is the partner that i have replied one for years.  Some other suppliers change sales quickly but EVLithiumCharger not.

—— James from USA

I'm Online Chat Now

RV battery charger 3.3KW HK-M 114V 23A Enforce air cooling TC charger

RV battery charger 3.3KW HK-M 114V 23A Enforce air cooling TC charger
Product Details:
Place of Origin: China
Brand Name:
Certification: CE
Model Number: HK-M
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms: T/T
Details
Input Voltage: AC90V~264V Rated Power: 3.3KW
Output Voltage: 50~198V Output Current: 23A
Dimension: 198*244*95MM Weight: 8Kg

Description

RV battery charger 3.3KW HK-M 114V 23A Enforce air cooling TC charger



Product Features:


1.High power density, small size, light weight;
TheCP and CC signals are also compatible
2.High safety: Short circuit Protection, Reverse connect protection, Overheating protect, Input protection,  no-load protection, Input under voltage protection, etc,
3.Long lifespan,high efficiency:with CAN communication intelligent alarm and PFC power Factor Correction .control and guide to connect with the charging pile.remote detection, programmed and fault inquiry
4.With cooling system:air cooling and liquid cooling.



Parameter Specification:


Basic specification

NO

Terms

Parameter

1

Input voltage range

AC90V~264V

2

Frequency

45Hz~65Hz

3

Power factor

≥0.99

4

Efficiency at full loading

≥93%

5

Mechanical impact and vibration grade

QC/T 895-2011

6

Protection grade

IP67

7

Operation temperature

- 40℃~85℃

8

Storage temperature

- 40℃~105℃

9

Control

 CAN or Enable

10

Protection

Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error

11

Size

198(length)x244(width)x95(height)(nature-cooled)

12

Cooling way

nature-cooling, liquid-cooling, Enforce Air Cooling



Nominal voltage

Max output current

Output voltage range

Cooling way

Model-lithium battery

Can control

144V

23A

50~198V

Enforce air cooling

HK-MF-144-23



Product Photos:

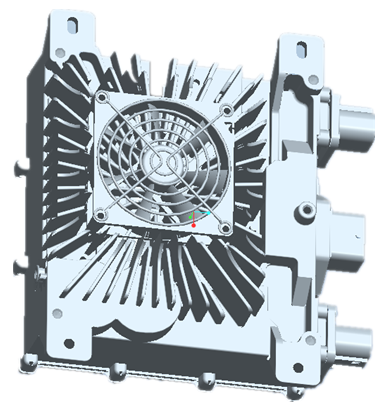

RV battery charger 3.3KW HK-M charger.png 114V 23A Enforce air cooling TC charger.png
