48V 72V 84V 96V 144V 312V 3.3KW On Board LiFePO4 Battery Charger

48V 72V 84V 96V 144V 312V 3.3KW On Board LiFePO4 Battery Charger
Product Details:
Place of Origin: China
Brand Name: 3.3KW On Board LiFePO4 Battery Charger
Certification: CE
Model Number: SMHC3
Payment & Shipping Terms:
Retail Price: 450 USD
Wholesale Price: Negotiable
Packaging Details: Customized plywood cases
Payment Terms: T/T
Details
Input Voltage: AC90V~264V Rated Power: 3.3KW
Output Voltage: 48V/72V/84V/96V/144V/312V Output Current: 10-45A
Dimension: 294*210*111mm Weight: 5.9Kg

Description

48V 72V 84V 96V 144V 312V 3.3KW On Board LiFePO4 Battery Charger


The battery charger adopts fully closed pouring and sealing heat-conducting silica gel process, with protection grade up to IP67, good shock resistance, good heat dissipation performance and long service life.The products are applicable to lithium battery, lifepo4 battery, lead-acid battery, nickel metal hydride battery, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.






Parameter Specification:


Models

Input Voltage Range

Rated Output
Voltage

Max Output
Current

SMHC3-4845A

AC90~264V

48V

45A

SMHC3-7240A

AC90~264V

72V

40A

SMHC3-8440A

AC90~264V

84V

40A

SMHC3-9632A

AC90~264V

96V

32A

SMHC3-14423A

AC90~264V

144V

23A

SMHC3-31210A

AC90~264V

312V

10A


Item

Parameters

AC Input Wide Voltage, Range

AC90V~264V

AC Input Frequency Range

40~70Hz

With APFC Function, Power Factor

≥0.98

Soft Switching Technology, Efficiency

≥93%

Protection Level

IP67

Operating Temperature

-40℃~60℃

Storage Temperature

-55℃~100℃

CAN Communication Function

Optional

12V3A Auxiliary Power Supply

Optional

LED Light Indicator For Charging Process

Standard

Noise

≤45dB

Overall Size

294*210*111mm

Net Weight

5.9Kg






Detailed Images:

3.3KW On Board LiFePO4 Battery Charger-1.jpg





48V charger .jpg






 On Board Battery 3.3KW Charger-3.jpg

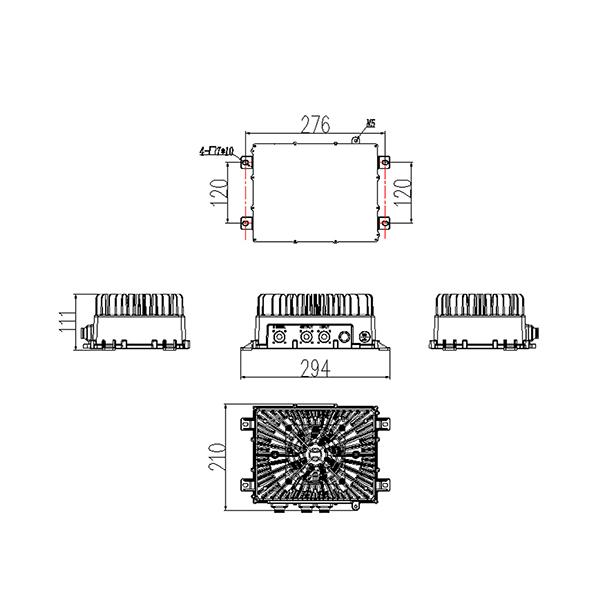

3.3KW OBC charger Dimension.jpg
