15kw on board charger obc ev charger marine battery charger

15kw on board charger obc ev charger marine battery charger
Product Details:
Place of Origin: China
Brand Name: EVL-BSM
Certification: CE
Model Number: 15KW
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: carton
Payment Terms: T/T
Details
Input Voltage: 24V-120V Rated Power: 15KW
Output Voltage: 18-132v Output Current: 100a-500a
Dimension: 567mm*454mm*620mm Weight: 56kg

Description

15kw on board charger obc ev charger marine battery charger


Electric vehicles (EVs) are often considered a new thing, but some of the first cars built in the 19th century were electric. Since then, internal combustion engine (ICE) cars have exploded in popularity, and electric cars have been largely forgotten. Electric vehicles attracted attention during the oil crisis of the 1970s and when the California Air Resources Board (CARB) developed its zero-emission vehicle (ZEV) program in the 1990s, but they did not take hold.


Since then, the electric vehicle market has expanded steadily. From the perspective of charging methods, electric vehicles are mainly divided into two categories. The first are hybrid electric vehicles (HEV) and mild hybrid vehicles (MHEV), which use ICE, regenerative braking and energy recovery to charge their own batteries. The second category is plug-in hybrid vehicles (PHEV) and battery electric vehicles (BEV), which are types that require "plug-in" charging. These vehicles require an on-board charger (OBC).


Compatible with single-phase or three-phase power supplies, the OBC delivers up to 22kW of power for the fastest charging speeds. Since all batteries require DC power for charging, the primary function of the OBC is to rectify the mains input and convert it to a suitable charging voltage for the battery (400V, or more recently 800V).




Parameter Specification:


15KW series

Model

EVL 24/500

EVL 48/250

EVL 80/150

EVL 120/100

Rated DC voltage

24V

48V

80V

120V

Rated current

500A

250A

150A

100A

Current range

≤500A

≤250A

≤150A

≤100A

Output voltage range

18-30V

38-60V

65-100V

92V-132V

Output voltage accuracy

±2%

Output ripple

≤±1%Vo

Input voltage range

380V±10%

input power

16.5KW

Input Current

43.5A

Input

A、B、C、N、PE Three-phase five-wire system

Size

567mm*454mm*620mm(L*W*H)

Weight

56kg

power factor

0.99

Harmonic THD

<10%

efficiency

92%-95%

Protective function

Over temperature, over voltage, over current, short circuit, reverse connection

Connector

Anderson/REMA/national standard charging gun/customer requirements

CAN

RS485, WiFi module, GPRS module optional

Cooling way

fan cooling

Working temperature and humidity

-20℃ to 65℃, >40℃reduce power ; 20-90%RH no condensation

Storage temperature and humidity

-40℃至85℃; 10-90%RH no condensation

IP level

IP20




Detailed Images:

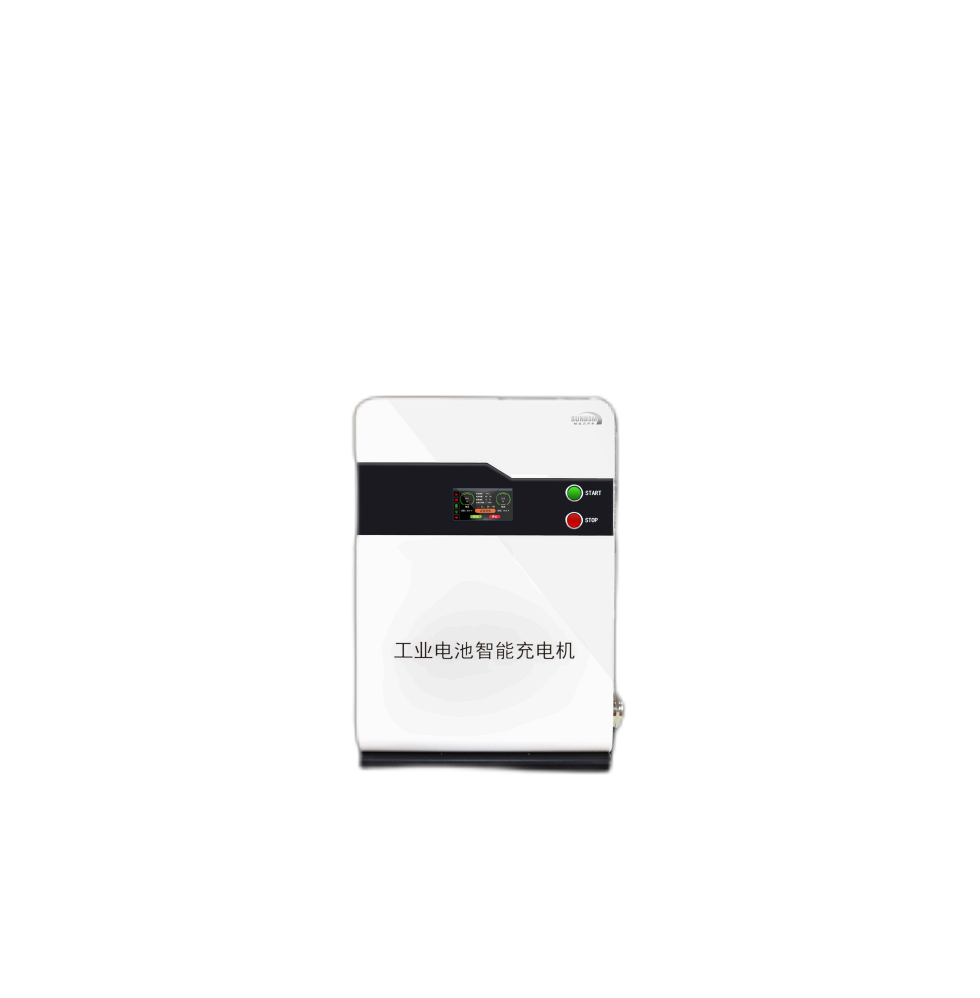

on board charger.png



obc charger.png
