Product Details:
|
| Input Voltage: | AC90V~264V | Rated Power: | 2kw |
|---|---|---|---|
| Output Voltage: | 33v-99v | Output Current: | 18A-45A |
| Dimension: | 282x168x90（mm） | Weight: | 3.8kg |

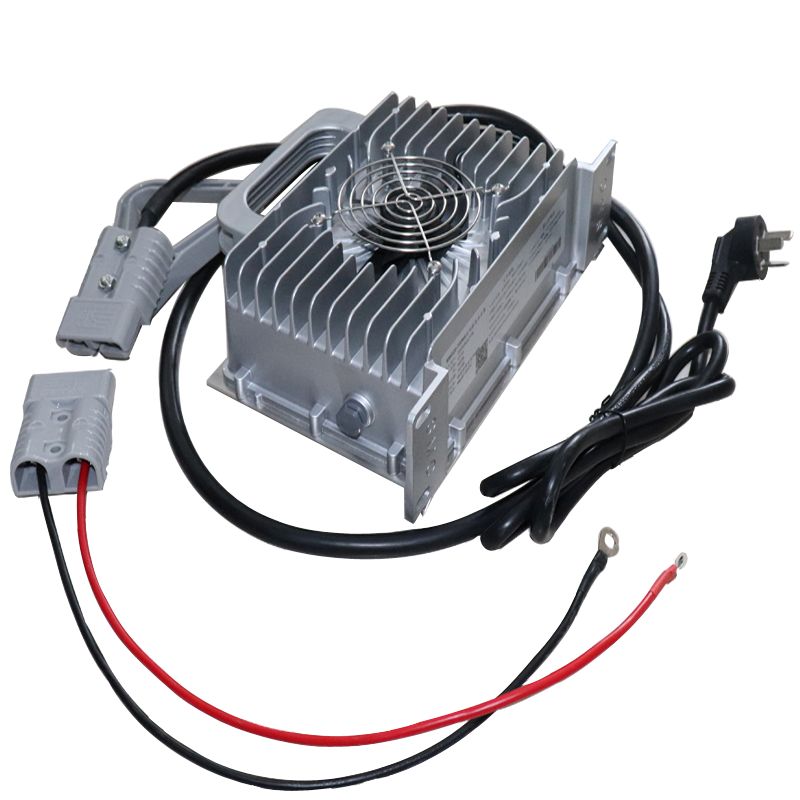

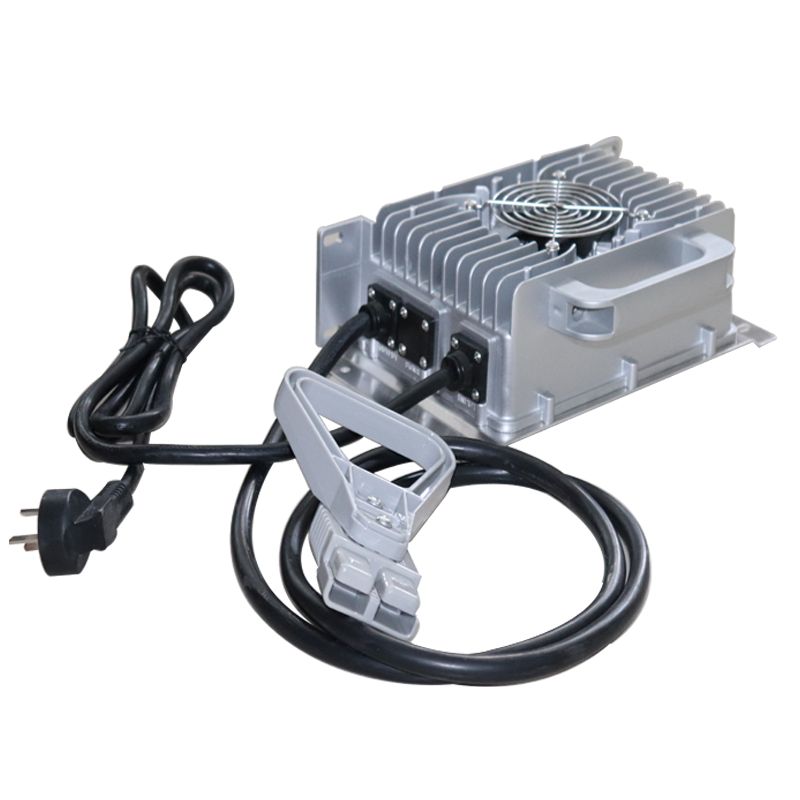

The on board charger adopts fully closed pouring and sealing heat-conducting silica gel process, with protection grade up to IP67, good shock resistance, good heat dissipation performance and long service life.The products are applicable to lithium battery, lead-acid battery, nickel metal hydride battery, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.
Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ2-2440A/2440C | AC90-264V | 24V | 30V | 40A |
SMCZ2-3640A/3630C | AC90-264V | 36V | 45V | 40A/30A |
SMCZ2-4835A/4825C | AC90-264V | 48V | 60V | 35A/25A |
SMCZ2-6030A/6020C | AC90-264V | 60V | 75V | 30A/20A |
SMCZ2-7225A/7218C | AC90-264V | 72V | 90V | 25A/18A |
SMCZ2-8022A | AC180-264V | 80V | 100V | 22A |
SMCZ2-9618A/9610C | AC90-264V | 96V | 120V | 18A/10A |
Item | SMCZ2-2kW onboard charger |
AC Input Wide Voltage Range | AC90-264V |
AC Input Frequency Range | 40-70HZ |
With APFC function, Power Factor | ≥0.98 |
Efficiency | ≥93% |
IP Level | 66/67 |
Working Temperature | -20℃ ~ +85℃ |
Storage Temperature | -55℃ ~ +100℃ |
CAN Communication | Optional |
Auxiliary Power Supply 12V3A | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Net Weight | 3.8kg |
Size | 282*168*90mm |
