2KW fully sealed export certified SMCZ2E series on board battery charger for ev

2KW fully sealed export certified SMCZ2E series on board battery charger for ev
Product Details:
Place of Origin: China
Brand Name: SMC
Certification: /
Model Number:
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details:
Payment Terms: /
Details
Input Voltage: AC90~264V Rated Power: 40~70Hz
Output Voltage: 24v~72v Output Current: 25A~35A
Dimension: 282x168x96(mm) Weight: 3.8kg

Description

2KW fully sealed export certified SMCZ2E series on board battery charger for ev


2KW fully sealed export certified SMCZ2E series on board battery ev charger adopts the completely closed potting and sealing thermal silicone technology, the protection grade can reach IP67, good shock resistance, good heat dissipation performance and long service life. The products are suitable for lithium batteries, lead-acid batteries, nickel-metal hydride batteries, etc.   Can be used for electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, cleaning vehicles, golf cart patrol vehicles, ATV, ships, communication equipment and other battery pack cycle charging.



   Product advantage

   1. Input Wide Voltag

   2. High Power Factor

   3. Fuiy-sealed poulring process

   4. High reliability

   5. High safety

   6. Dvnamic charging Curve

   7. Temperature compensation





Product parameter


Models

Input Voltage Range

Rated Output Voltage

Max Output Voltage

Max Output Current

SMCZ2E-2435A

AC 90~264V

24V

33.0V

35A

SMCZ2E-3635A

AC 90~264V

36V

49.5V

35A

SMCZ2E-4835A

AC 90~264V

48V

66.0V

35A

SMCZ2E-6030A

AC90~264V

60V

82.5V

30A

SMCZ2E-7225A

AC 90~264V

72V

99.0V

25A

Dimension: 282x168x96(mm) Net weight: 3.8g


Detailed Images

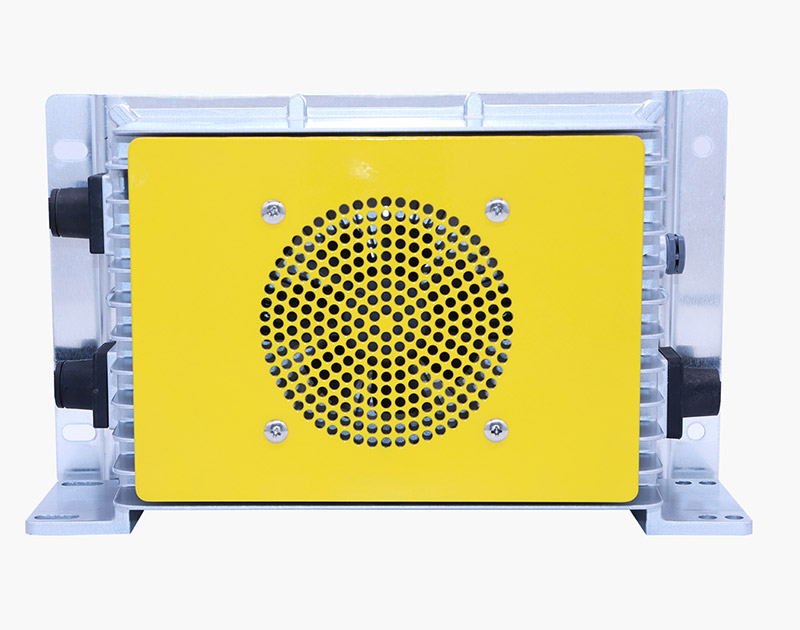

2KW fully sealed export certified SMCZ2E series on board battery ev charger2KW fully sealed export certified SMCZ2E series on board battery ev charger

2KW fully sealed export certified SMCZ2E series on board battery ev charger2KW fully sealed export certified SMCZ2E series on board battery ev charger


Technical Parameters


Item

Specifications

AC input Wide Voltage, Range

AC90V~264V

AC Input Frequency Range

40~70Hz

With APFC function, Power Factor

≥0.98

Soft Switching Technology, Efficiency

≥93.0%

Protection Level

IP67

Operating Temperature

-40℃~+ 60℃

Storage Temperature

-55 ℃~ + 100 ℃

CAN Communication Function

optional

12V5A Auxiliary Power Supply

optional

LED Light indicator for Charging Process

Standard

Noise

≤45 dB


Applications


Products are suitable for lithium batteries, lead-acid batteries, nickel-metal hydride batteries, etc., can be used in electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, sanitation vehicles, golf carts, etc. Cycle charging of patrol vehicles, ATVs, ships, communication equipment, AGV intelligent robots and other electric vehicles and special equipment.
