3kw on board charger 48v electric vehicle lithium battery charger

3kw on board charger 48v electric vehicle lithium battery charger
Product Details:
Place of Origin: China
Brand Name: EVL-BSM 3KW
Certification: CE
Model Number: 3KW series
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: carton
Payment Terms: T/T
Details
Input Voltage: 175V-264Vac Rated Power: 3kw
Output Voltage: 18-132v Output Current: 20A-100A
Dimension: 409mm*185mm*219mm(L*W*H) Weight: 10.5kg

Description

3kw on board charger 48v electric vehicle lithium battery charger


It is mainly engaged in R&D, production and sales of smart chargers and power adapters. The service industries include smart home, medical, AI robots, electric vehicle tools and other new energy industries.


The company has always taken technological innovation as the driving force for corporate development, and has a highly educated and qualified talent team with rich R&D experience in the renewable energy power supply industry and strong independent innovation capabilities. The company adheres to the corporate spirit of "integrity, innovation, dedication and cooperation", provides customers with high-quality system design, installation, technical transformation and other solution services, continuously improves customer and public satisfaction, and strives to build the company into a socially useful company. A new energy enterprise with greater contribution and global reputation.



Parameter Specification:


3KW series

Model

BSM-M 24/100

BSM-M 48/50

BSM-M 80/30

BSM-M 120/20

Rated DC voltage

24V

48V

80V

120V

Rated current

100A

50A

30A

20A

Current range

≤100A

≤50A

≤30A

≤20A

Output voltage range

18-30V

38-60V

65-100V

92V-132V

Output voltage accuracy

±2%

Output ripple

≤±1%Vo

Input voltage range

175V-264Vac

input power

3.3KW

Input Current

15A

Input

LNPE Single phase three wire system

Product Size

409mm*185mm*219mm(L*W*H)

Weight

10.5kg

Harmonic THD

<10%

efficiency

92%-95%

Protective function

Over temperature, over voltage, over current, short circuit, reverse connection

Connector

Anderson/REMA/national standard charging gun/customer requirements

CAN

RS485, WiFi module, GPRS module optional

Cooling way

fan cooling

Working temperature and humidity

-20℃ to 65℃, >40℃reduce power ; 20-90%RH no condensation

Storage temperature and humidity

-40℃至85℃; 10-90%RH no condensation

Protection level

IP20

power factor

0.99

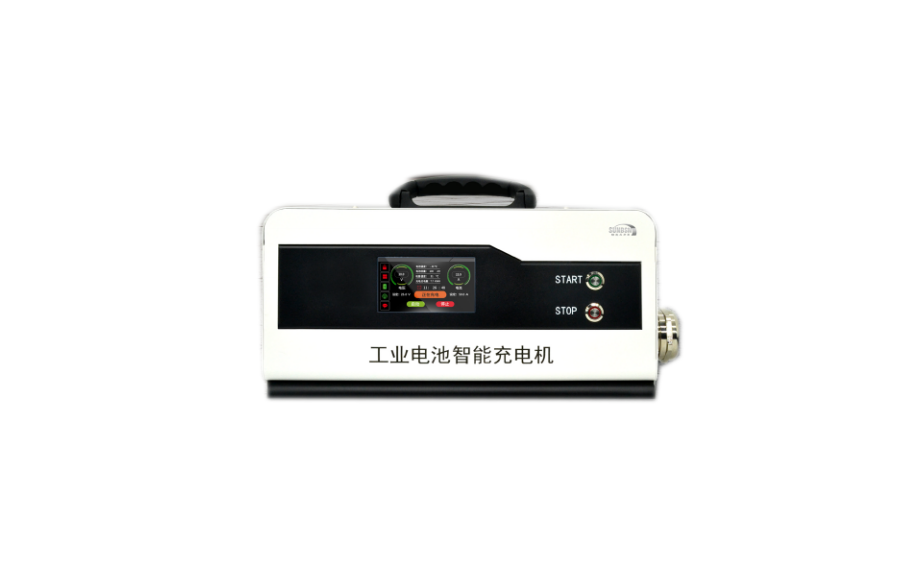

Detailed Images:


on board charger.png


on board charger.png
