6kw on board charger type 2 American standard ev charger for car

6kw on board charger type 2 American standard ev charger for car
Product Details:
Place of Origin: China
Brand Name: EVL-HW
Certification:
Model Number: HWCM3
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: carton
Payment Terms: T/T
Details
Input Voltage: Single phase 90-264VAC Rated Power: 6.6kw
Output Voltage: 48-710V Output Current: ≤32A
Dimension: 409mm*336mm*123.3mm Weight: about 10kg

Description

6kw on board charger type 2 American standard ev charger for car


We provide on board chargers for electric industrial vehicles, AGVs, civil aviation ground equipment, aerial work vehicles, electric ships, commercial lawn mowers, and lithium battery packs.

On board charger (OBCs) convert AC power provided by a household outlet or charging station into DC power to charge the high-voltage batteries that power electric vehicles and plug-in hybrid vehicles.

An on-board charger (OBC) is a power electronic device in an electric vehicle (EV) that converts alternating current from an external power source, such as a residential outlet, to direct current to charge the vehicle's battery pack.




Parameter Specification:



Item

parameter

Input voltage

Single phase 90-264VAC

power factor

≥0 .99

Input maximum current

≤32A

The output voltage

48V100A

72V80A

80V80A

96V50A

144V40A

200-430V20A

400-710V11A

Output Power

6.6kw

efficiency

 9 5 %

Output protection

Overvoltage/undervoltage protection, overcurrent protection, short circuit protection, overtemperature protection, power battery reverse connection protection

CAN

CAN/485 CAN

Operating temperature

- 20℃ - 60℃

IP grade

IP67

size

409mm*336mm*123.3mm

Applicable battery

Lead-acid batteries, lithium batteries, supercapacitors, etc.






Detailed Images:

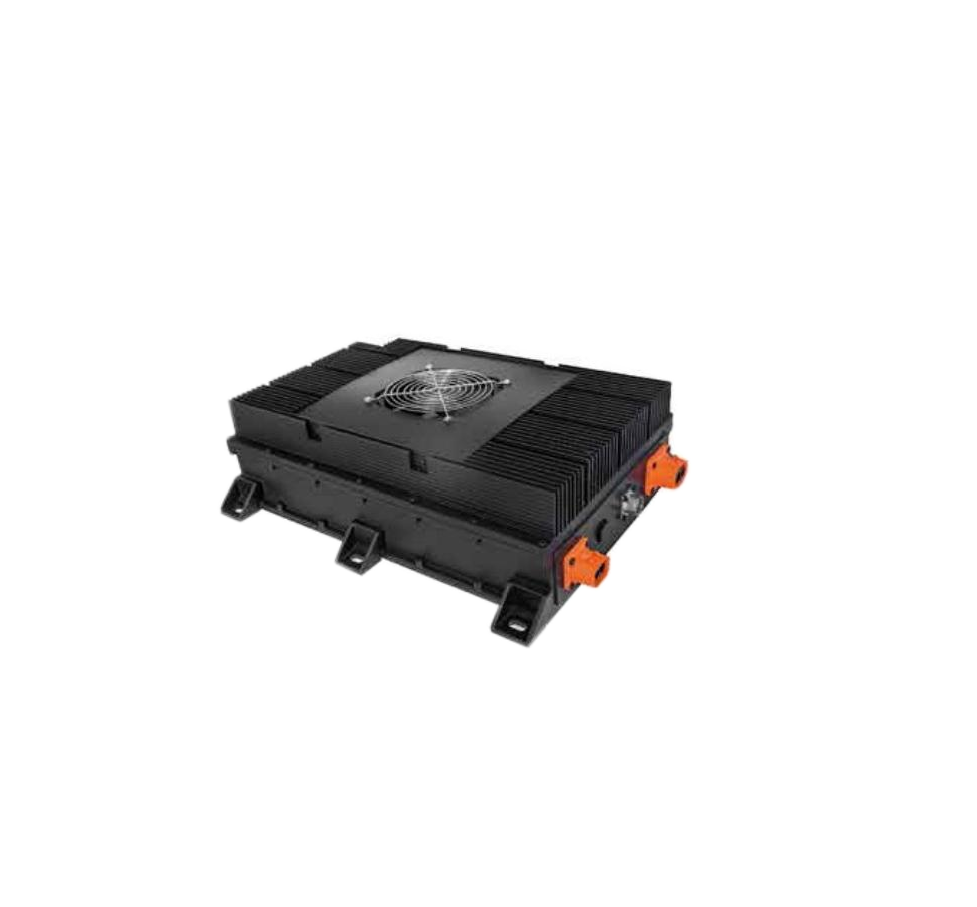

on board charger.png

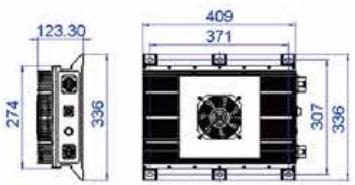

on board charger size.png


obc charger size.png
