Product Details:
|
| Input Voltage: | AC180V~260V | Rated Power: | 800W |
|---|---|---|---|
| Output Voltage: | 33.0V-82.5V | Output Current: | 12A-15A |

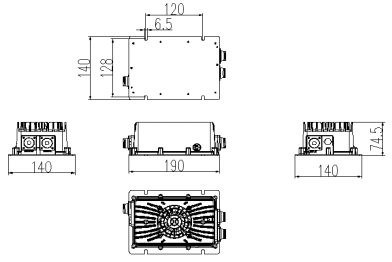

| Dimension: | 190x140x74.5（mm） | Weight: | 2KG |
The 800W car battery charger has undergone strict inspection before leaving the factory. It has high safety performance, strong protection function. The products are applicable to lithium battery, lead-acid battery, nickel metal hydride battery, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.
This product has excellent performance and is easy to operate, making it your ideal choice.
Specifications and models | Input Voltage Range | Rated Output Voltage | Max Output voltage | Max Output Current |
SMCZ7-2415A/2415C | AC90-264V | 24V | 33.0V | 15A |
SMCZ7-3615A/3615C | AC90-264V | 36V | 49.5V | 15A |
SMCZ7-4815A/4812C | AC90-264V | 48V | 66.0V | 15A |
SMCZ7-6012A/6010C | AC90-264V | 60V | 82.5V | 12A |
SMCZ7-7210A/7207C | AC90-264V | 72V | 99.0V | 10A |
Basic specification | ||
NO | Terms | Parameter |
1 | Ac Input Wide Voltage，Range | AC180V~260V |
2 | AC Input Frequency Range | 40~70Hz |
3 | With APFC Function，Power Factor | ≥0.98 |
4 | Soft Switching Technology，Efficiency | ≥93.0% |
5 | Protection Level | IP67 |
6 | Operating Temperature | -40℃~+60℃ |
7 | Storge Temperature | -55℃~+100℃ |
8 | Charging Mode | Adjustable Dynamic Charging Curve |
9 | LED Light Indicator for Charging Process | Standard |
10 | Noise | ≤45dB |
11 | Overall Size | 190x140x74.5（mm） |
12 | Net Weigh | 2.2kg |
1. Overheat protection
When the internal temperature of the charger exceeds 80℃, the charging current will reduce automatically. When it exceeds 85℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charger.
2. Short circuit protection
When the output is short circuited, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging.
3. Battery reverse connection protection
When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging without damage the charger.
4. Input low-voltage& over-voltage protection
If the input voltage is lower than 90V or higher than 264V,the charger will shut down protectively and automatically resume working with the voltage is normal again.
5. Full automatic shut down
Automatically shut down after full charge.
