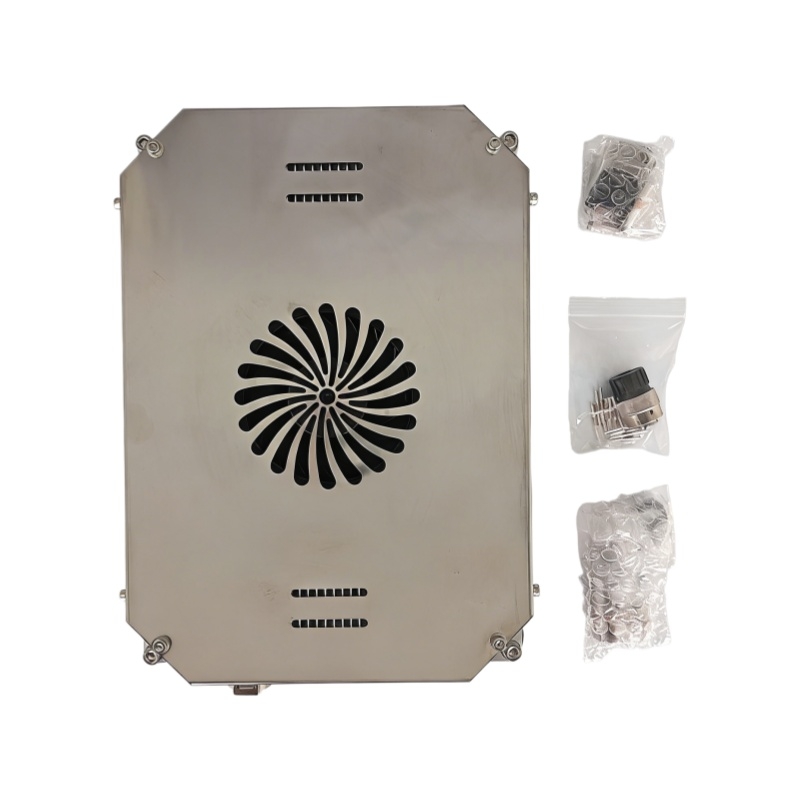

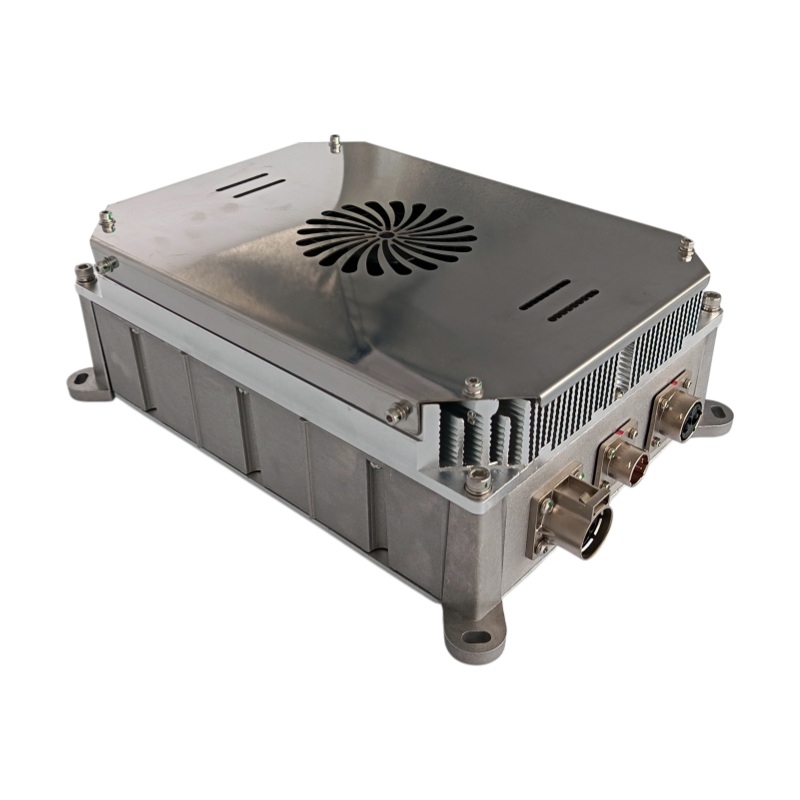

RA6P6360 6.6kW AC DC Air Cooled On Board Battery Charger OBC For EV

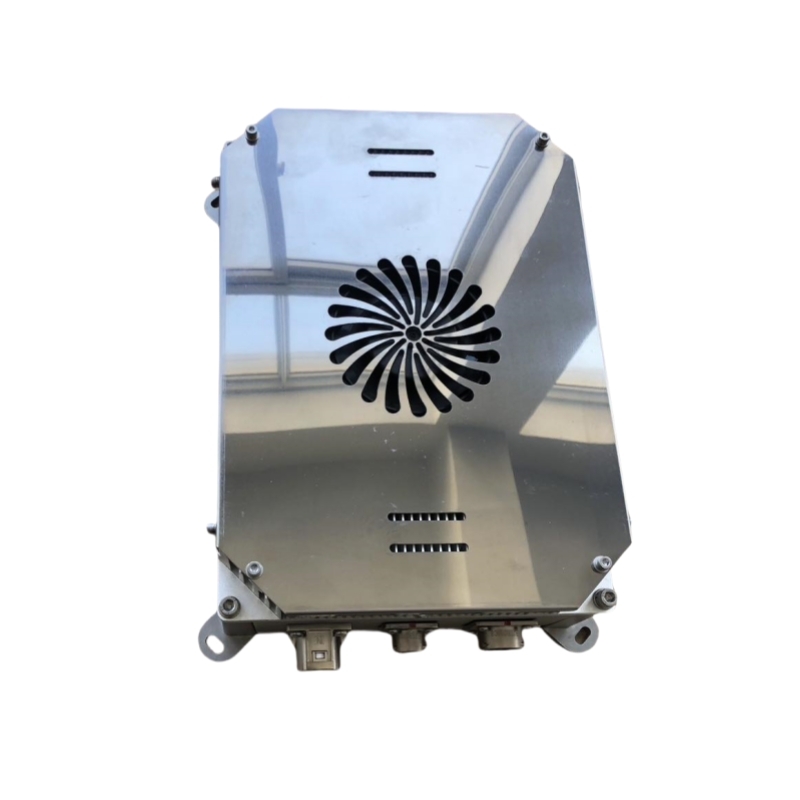

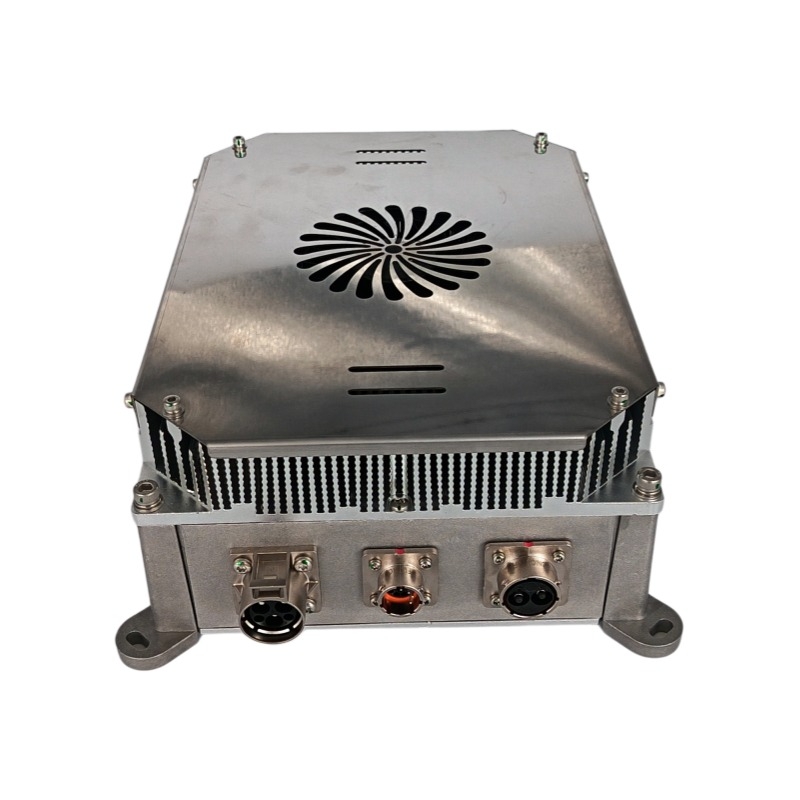

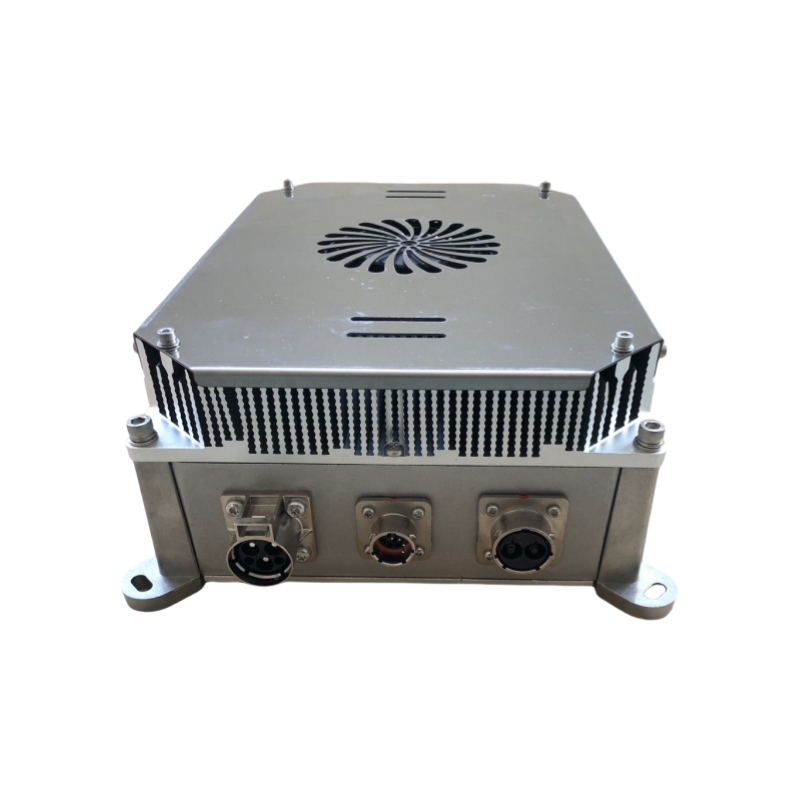

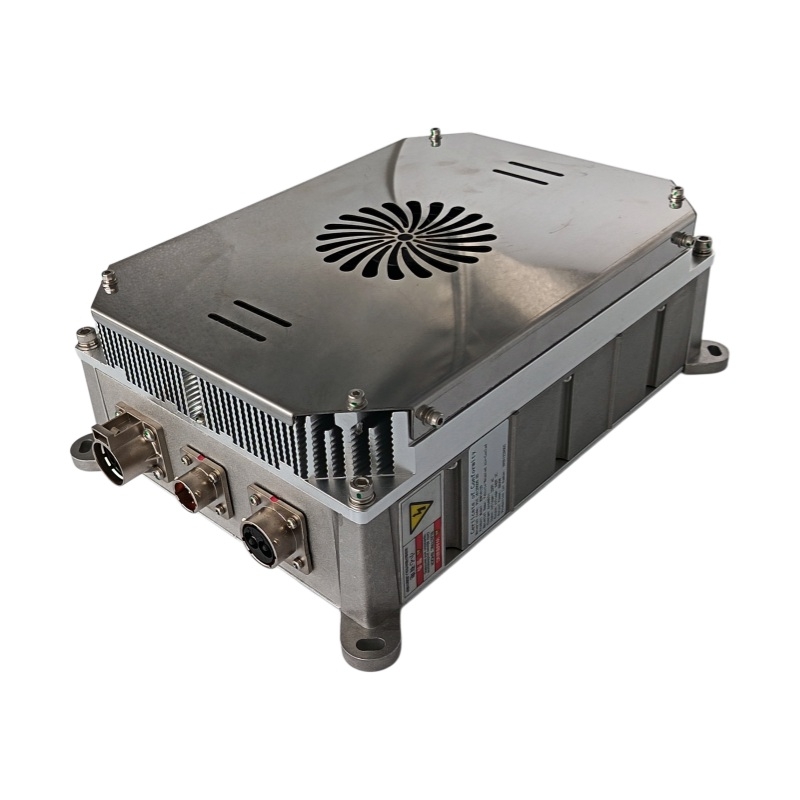

RA6P6360 On-board 6.6KW Air-Cooled OBC Charger (RA6P6) series on-board charger is a high-power density and high-efficiency charger specially developed for new energy vehicles such as new lithium-ion pure electric vehicles and logistics vehicles. The module is 90-265VAC AC input, and the DC output voltage is adjustable in the full range.

The whole machine is designed with full digital control technology, with flexible and intelligent control, good protection characteristics and strong system robustness. The built-in microprocessor communicates with the monitoring unit, and the parameters in the machine can be set by the higher-level monitoring unit or adjusted by the higher-level monitoring unit through the CAN interface

Multiple Protection Functions

● Input over-voltage

● Under-voltage protection

● Output over-current protection

● Output over-voltage protection

● Output short-circuit protection

● Over-temperature protection

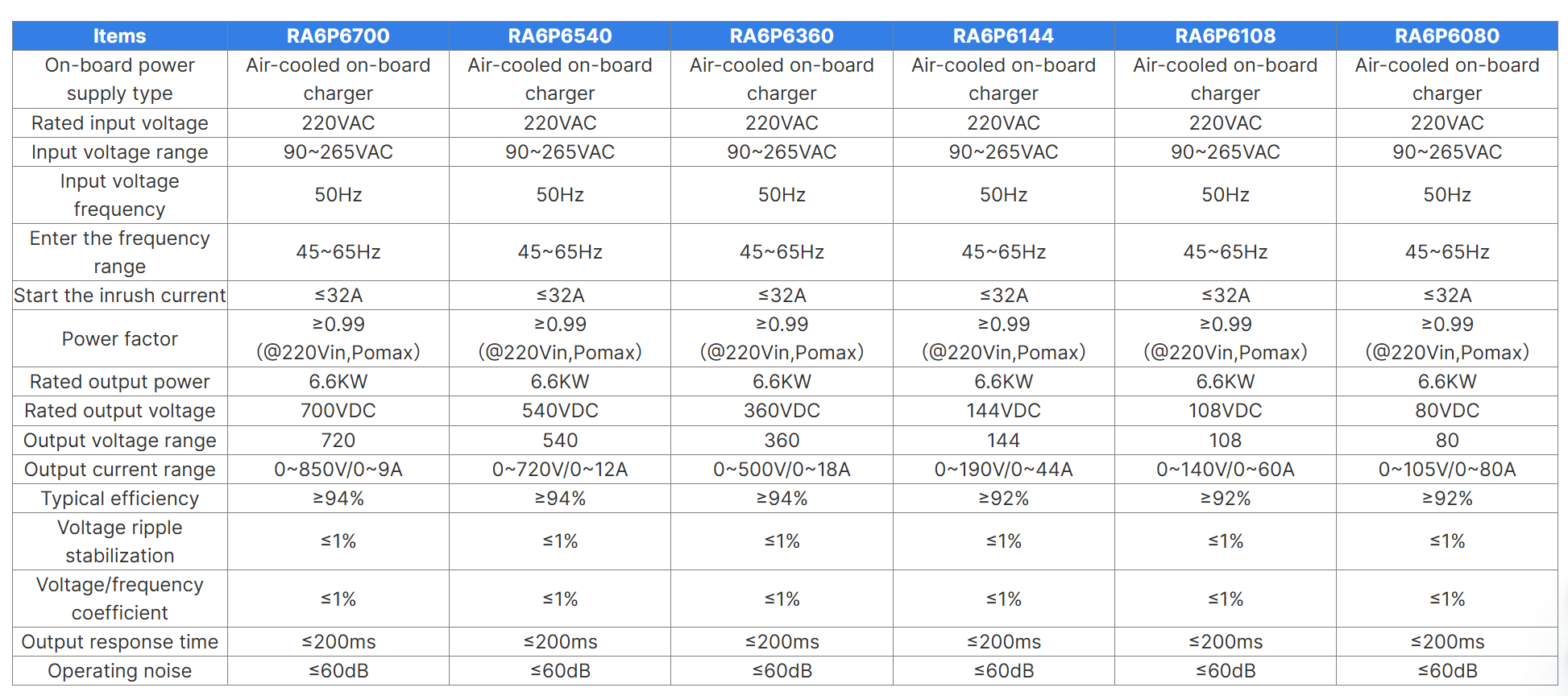

Key Specifications

Electrical characteristics

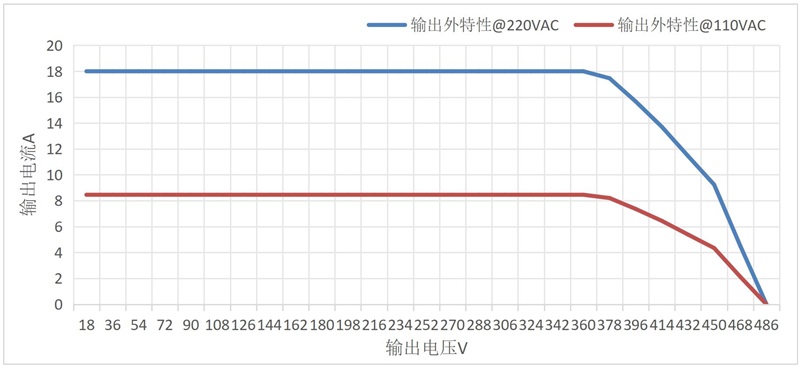

Characteristic Curves

Dimension of 6.6KW On Board Charger

Warning

The input/output end of the power supply should be supplemented with a blown fuse or other overcurrent protection device;

The possible electrical hazards at the output end of the product must be considered to ensure that the end product user will not come into contact with the product; The manufacturer of the terminal equipment must design the appropriate protection scheme to ensure that the operation will not cause danger due to accidental contact of the engineer or tool with the source terminal;

Once the safety protection of the equipment is damaged, the equipment must stop working and refer to the relevant maintenance regulations.

When the power supply device is switched from a cold environment to a warm environment, condensation may cause leakage hazards, so the grounding requirements must be strictly implemented.

Only a qualified person can connect the equipment to the power supply.

The power supply must be shut down for five minutes, so that the capacitor has sufficient discharge time before the power supply equipment can be maintained.

Pay attention to the use of safety: there are safety warning signs, high pressure signs, avoid hand contact, so as to avoid electric shock, burns
