SMCN20 series 1200W fully sealed on board charger for electric car ATV ships other battery pack cycle charging

SMCN20 series 1200W fully sealed on board charger for electric car ATV ships other battery pack cycle charging
Product Details:
Place of Origin: China
Brand Name: SMC
Certification:
Model Number: SMCN20
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details:
Payment Terms: /
Details
Input Voltage: AC90V~264V Rated Power: 40~70Hz
Output Voltage: 24v~84v Output Current: 12a~25a
Dimension: 335x192x106(mm) Weight: 4.5kg

Description

SMCN20 series 1200W fully sealed on board charger for electric car ships other battery pack cycle charging


SMCN20 Series 1200W Fully Sealed Chager adopts the completely closed potting and sealing thermal silicone technology, the protection grade can reach IP67, good shock resistance, good heat dissipation performance and long service life. The products are suitable for lithium batteries, lead-acid batteries, nickel-metal hydride batteries, etc.   Can be used for electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, cleaning vehicles, golf cart patrol vehicles, ATV, ships, communication equipment and other battery pack cycle charging.


Product parameter


Models

Input Voltage Range

Rated Output Voltage

Max Output Voltage

Max Output Current

SMCN20-2425A

AC 90~264V

24V

33.0V

25A

SMCN20-3625A

AC 90~264V

36V

49.5V

25A

SMCN20-4820A

AC 90~264V

48V

66.0V

20A

SMCN20-6020A

AC 90~264V

60V

82.5V

20A

SMCN20-7215A

AC 90~264V

72V

99.0v

15A

SMCN20-8412A

AC 90~264V

84V

115.5V

12A

Dimension: 335x192x106(mm) Net weight:4.5kg

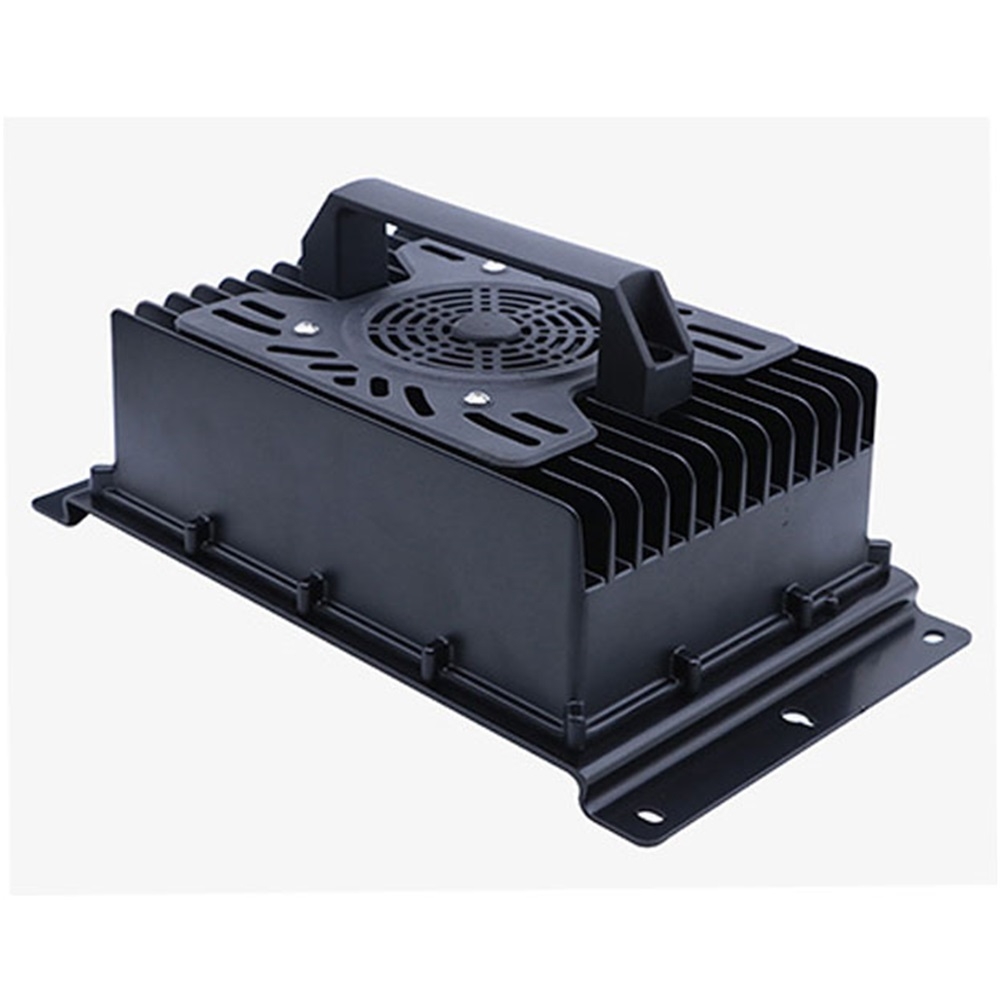

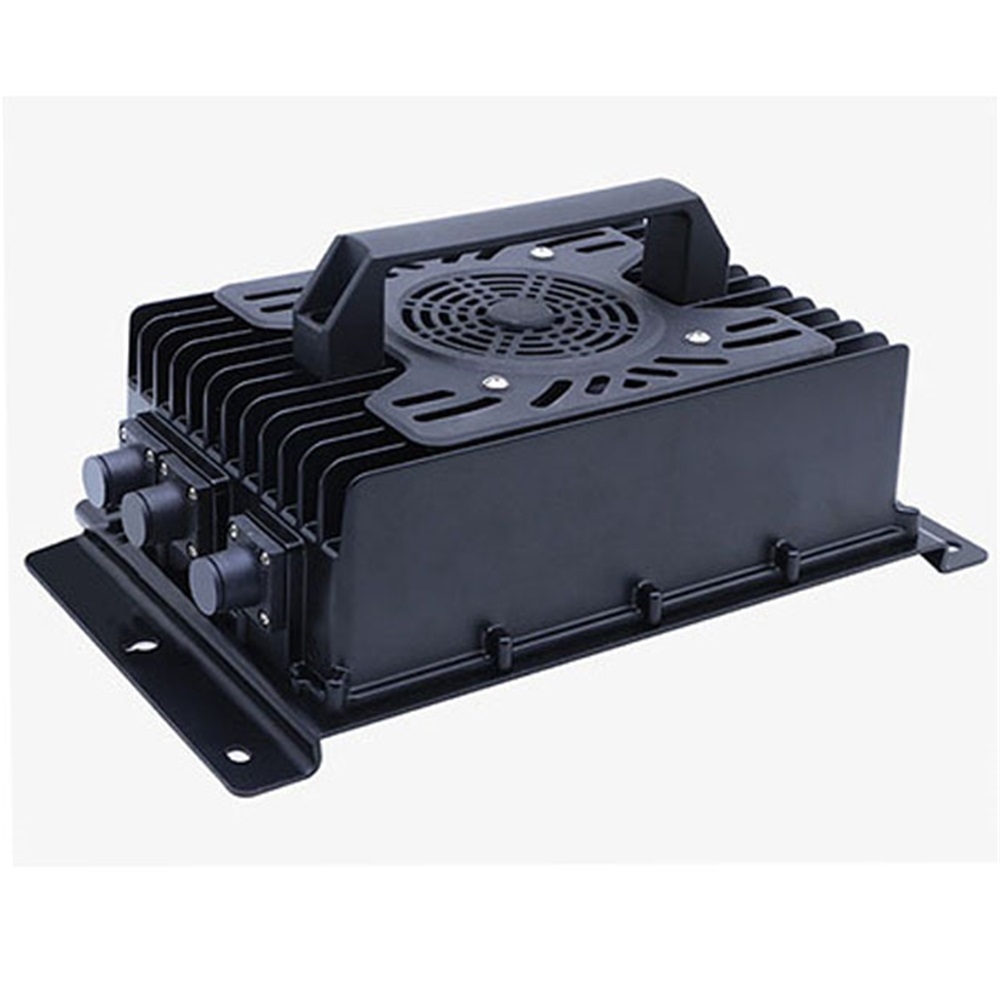

Detailed Images





Technical Parameters


Item

Specifications

AC input Wide Voltage, Range

AC90V~264V

AC Input Frequency Range

40~70Hz

With APFC function, Power Factor

≥0.98

Soft Switching Technology, Efficiency

≥93.0%

Protection Level

IP67

Operating Temperature

-40℃~+ 60℃

Storage Temperature

-55 ℃~ + 100 ℃

CAN Communication Function

optional

12V5A Auxiliary Power Supply

optional

LED Light indicator for Charging Process

Standard

Noise

≤45 dB


Applications


Products are suitable for lithium batteries, lead-acid batteries, nickel-metal hydride batteries, etc., can be used in electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, sanitation vehicles, golf carts, etc. Cycle charging of patrol vehicles, ATVs, ships, communication equipment, AGV intelligent robots and other electric vehicles and special equipment.
