Business Car AC 16A Type2 connector EV Charging Station with 5m Cable

Business Car AC 16A Type2 connector EV Charging Station with 5m Cable
Product Details:
Place of Origin: China
Brand Name: EVL
Certification:
Model Number: 3030-16-XC-AS
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms: T/T
Details
Input Voltage: Rated Power:
Output Voltage: Output Current: 16A
Dimension: Weight:

Description

1.Business Car AC 16A Type2 connector EV Charging Station with 5m Cable


Features:

Charging plug meet SAE J1772 2010 standard

Power plug meet NEMA 5-15 standard

Nice appearance,hand-held ergonomic design,easy plug

Reliability of materials,antiflaming,pressure-resistant,

abrasion resistance,impact resistance and high oil.

Excellent protection performance,protection grade IP55(working condition)


Environmental performance:

Operating temperature:-30℃+50℃


Electrical performance:

Rated current:16A

Operating voltage:250V

Insulation resistance:>1000MΩ(DC500V)

Terminal temperature rise:<50k

Withstand voltage:2000v

Contact Resistance:0.5mΩ Max

Applied Materials

Case Material:Thermoplastic,flame retardant grade UL94-0

Contact bush:copper alloy,silver plating


Mechanical properties:

Mechanical life:no-load plug in/pull out10000 times

Impat of extermal force:can afford 1m drop and 2t vehicle run over pressure

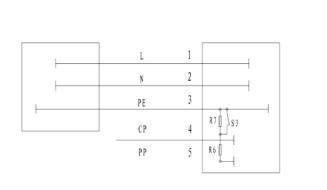

Model selection and the standard wiring





2.Parameter Specification:


Model

Rated current

Cable specification

Cable length

Cable diameter

Color

3030-16-XC-AS

16A

3×2.5m

5000mm

12mm

● / ●




3.Detailed Images:

type2 connector.png AC 16A ev cable.png
