model 2 AC EV charging station Electric Vehicle charger with 5m length cable

model 2 AC EV charging station Electric Vehicle charger with 5m length cable
Product Details:
Place of Origin: China
Brand Name: EVL
Certification:
Model Number: 2050--16-XC-ES
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms:
Details
Input Voltage: Rated Power:
Output Voltage: Output Current:
Dimension: Weight:

Description

1.model 2 AC EV charging station Electric Vehicle charger with 5m length cable


Features:

Charging plug meet 62196-2 IEC 2010 SHEET 2-lle standard

Power plug meet DIN VDE 0620-1 standarc

Nice appearance,hand-held ergonomic design,easy plug

Reliability of materials,antifllaming,pressure-resistant,

abrasion resistance,impact resistance and high oil.

Excellent protection performance,protection grade IP55(working condition)

Environmental performance

Operating temperature-30℃+50℃


Electrical Performance:

Rated current:16A

Operating voltage:250V

Insulation resistance>1000MΩ(DC500V)

Terminal temperature rise:<50K

Withstand voltage:2000V

Contact Resistance:0.5mΩ Max

Applied Materials

Case Material:Thermoplastic,flame retardant grade UL94-0

Contact bush:copper alloy,silver plating

Mechanical Properties

Mechanical life:no-load plug in/pull out>10000times

Impat of external force:can afford 1m drop and 2t vehicle run over pressure

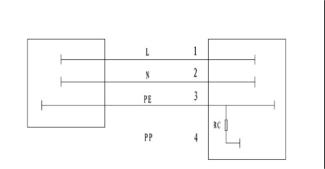

Model section and the standard wiring




2.Parameter Specification:


Model

Rated current

Cable specification

Cable length

Cable diameter

Color

2050--16-XC-ES

16A

3×2.5m㎡

5000mm

10mm

 ● / ●




3.Detailed Images:


model 2 ev cable.png ev charging cable.png
