Product Details:
|
| Input Voltage: | Rated Power: | ||
|---|---|---|---|
| Output Voltage: | Output Current: | 16A/32A | |
| Dimension: | Weight: |
1.EV Charging Cable 1060 type 2 ev cable
Features:
1. Meet the "electric vehicle conductive charging the connected device" 20110530 draft for approval standards and requirements
2.Beautiful appearance ergonomic handheld design, convenient plug.
3 pin head safety insulation design, to prevent the direct contact of manpower accident
4. Superior protective performance, protection grade IP55 (working condition)
5 Reliability material, flame retardant, environmental protection, wear resistance, weatherability, impact resistance, high resistance to oil, anti-UV
Electrical performance:
1.Rated operating current: 16A/32A
2.Working Voltage: 250V AC
3.Insulation resistance:> 1000MΩ (DC500V)
4. Terminal temperature rise: <50K
5. Withstand voltage: 2000V
6. Vibration resistance: comply with the requirements of JDQ53.36.1.1-53.36.1.2
7.Contact resistance: 0.5mΩ Max
Mechanical behavior:
1. Mechanical life: no load-swappable> 10000
2.Coupled Insertion Force: 45N <F <80N
Material application
1 Case Material: thermoplastic flammability rating UL94V-0
2.Pin: copper alloy, the surface of the silver-plated + top of thermoplastics
3 seals: rubber or silicone
Ambient temperature
Working environment temperature: -30℃ ~~ +50℃

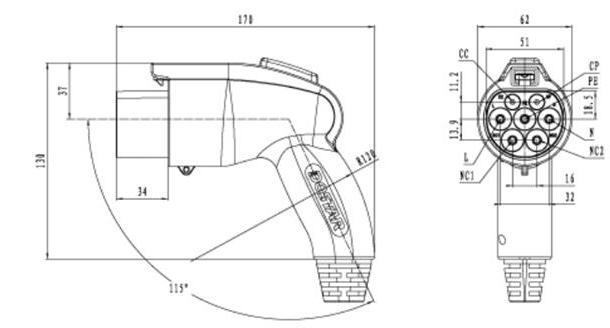

2.Parameter Specification:
erminal ID /label | Functional definition |
1-（L） | AC power |
2-（NC1） | Spare terminals |
3- (NC2) | Spare terminals |
4-(N) | Midline |
5-(PE) | Connecting the supply equipment ground and the vehicle chassis ground, whenthe charging interface to connect and disconnect the terminal phase for theother terminals first to complete the connection and finalize disconnect |
6-(CC) | Charging connection confirmation |
7-(CP) | Control confirmation |
Model | Contact No | Wiring specifications | Remark |
V2C-DSI-EV16P | 7 | 3*2.5mm2+2*0.5mm2 | Cable length isconfigured according to the customer |
V2C-DSI-EV32P | 7 | 3*6mm2+2*0.5mm2 |
3.Detailed Images：
