Type 2 Electric Vehicle Charger Portable EV Charging Cable

Type 2 Electric Vehicle Charger Portable EV Charging Cable
Product Details:
Place of Origin: China
Brand Name: EVL
Certification:
Model Number: EV Charging Cable 5020
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms: T/T
Details
Input Voltage: Rated Power:
Output Voltage: Output Current: 16A
Dimension: Weight:

Description

1.Type 2 Electric Vehicle Charger Portable EV Charging Cable


Product application: Electric vehicle electical connection


Features:

Comply GB/T 20234-2006 regulations and requirements

Nice appearance, hand-held ergonomic design, easy plug

Excellent protection performance. Protection grade IP44(working condition)


Mechanical properties:

Mechanical life: no-load plug in/pull out5000times

Coupled insertion force:≤80N


Environmental performance:

Operating temperature:-30℃+50℃

Electrical Performance

Rated current:16A

Operating Voltage:250V

Insulation resistance:500MΩ(DC500V)

Terminal temperature rise:50K

Withstand voltage:2000V

Contact Resistance0.5mΩ Max

Applied Materials

Case Material: Thermoplastic. Flame retardant grade UL94-0

Contact bush: copper alloy,silver plating




2. Detailed Images:

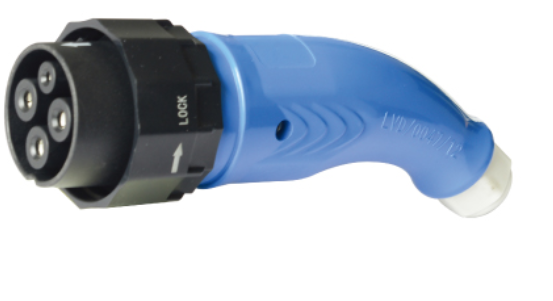

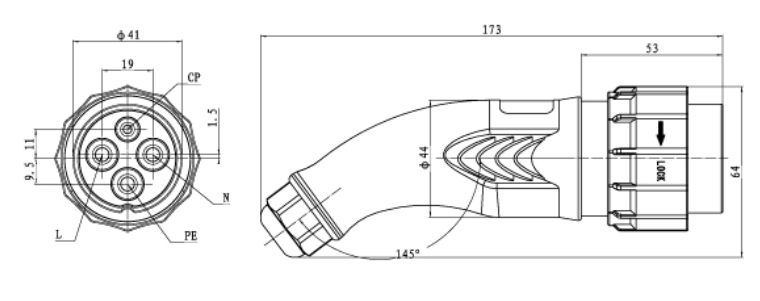

Portable EV Charging Cable.png Type 2 Electric Vehicle Charger.png

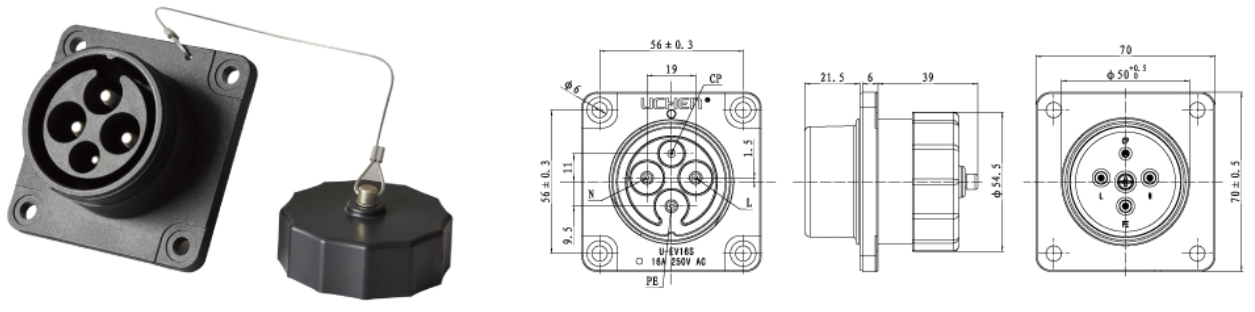

Portable charger.png
