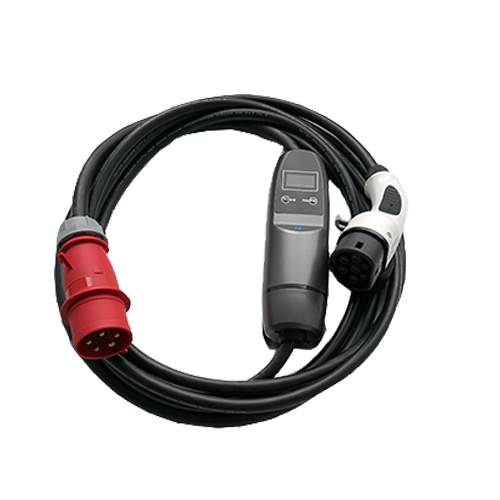

Intelligent Universal 3 phase 16A /32A type 1 portable EV charger

Specifications:

Input: 110V-400V 6A–32 A (3 phase)AC

Output: 110V-400V 6A–32 A (3 phase)AC

Charging power range: 3.5-22kW

Integrated Residual Current Device(RCD)

Operating Temperature: -25℃ to +50℃

IP Rating: In cable box: IP 65 Meets

Standards: IEC 62752 Fulfill Standards: IEC 62196-2

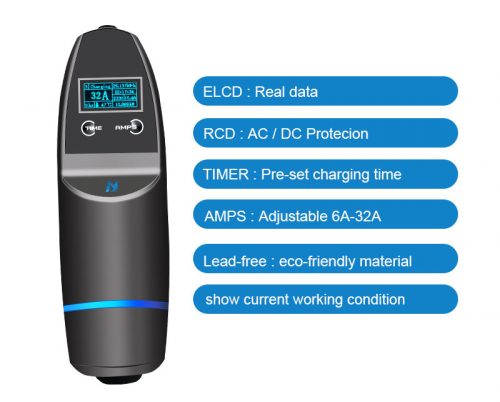

Features:

OLED display real data of charging status

Timer to pre-set charging time by pressing the button “TIME”

Current adjustable from 6A to 32A by pressing the button ”AMPS”

Universal EV charger: Portable & Wall Mounted

DETAILED IMAGES

Charge your electric car with 32a

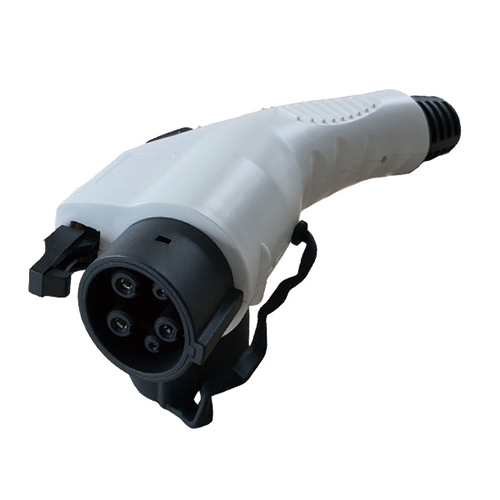

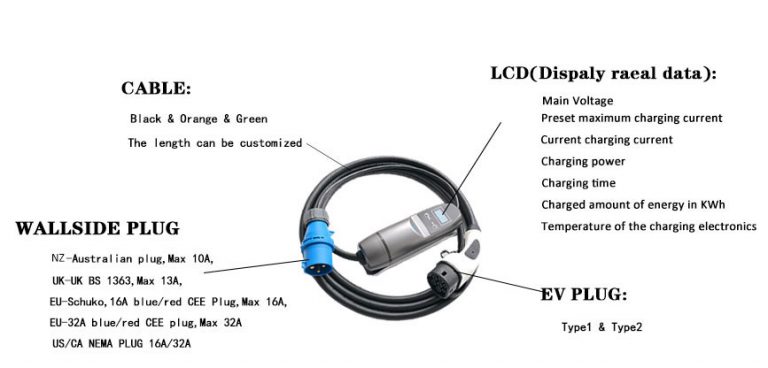

• For the vehicle side plug: ............. meets Type 1 SAE J1772 American standard or Type 2 IEC 62196 European standard

• Black, green, orange cable are available. The length of the cable of ev charger mode 2  can be customized with your requirement. The standard cable is 5m.

• For the wall side plug: We can install the wall side plug according different countries situation:

          NZ customers---------Australian plug ,Max 10A

          UK customers---------UK BS1363, Max 13A

          EU customers------ --Schuko, 16A blue CEE plug , Max 16A

          EU customers------ --32A blue/red CEE plug, Max 32A

          US customers---------NEMA 5-15,6-20, 6-30, 10-30, 10-50, L14-30, L14-50

Intelligent and efficient Smart ev charger makes charging easy and convenient.

The image shows the function of tesla 3 phase charger

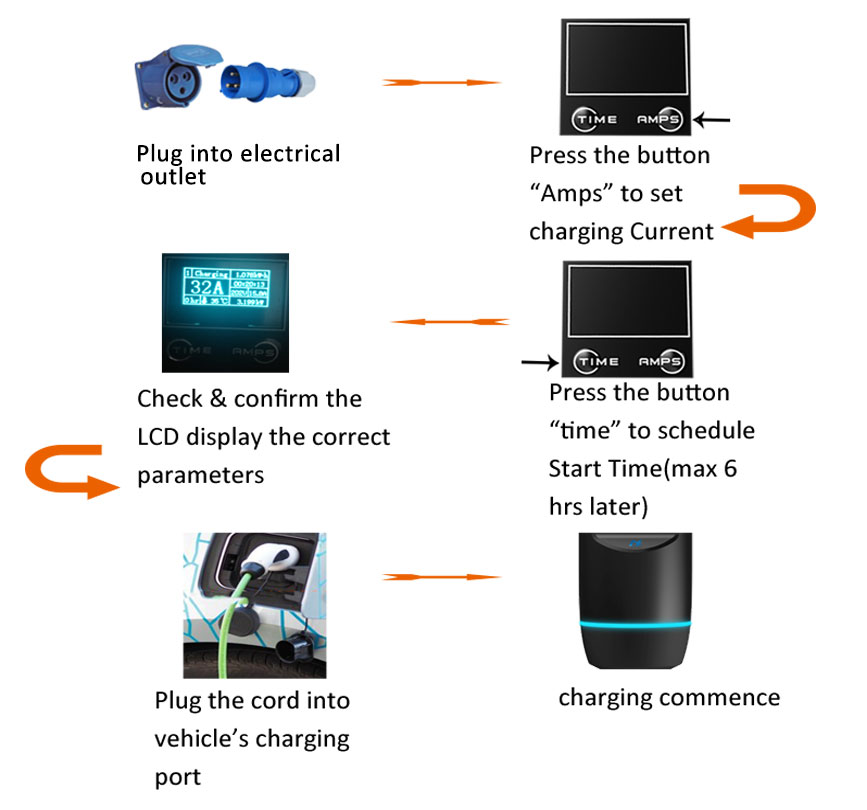

CHARGING STEPS

5 charging step of Smart ev charger
