6.6kw TC charger 512v home tiecheng charger best level 2 ev charger

6.6kw TC charger 512v home tiecheng charger best level 2 ev charger
Product Details:
Place of Origin: China
Brand Name: TC charger
Certification: CQC,UL,TUV
Model Number: HK-LF-540-14
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: Plywood Box
Payment Terms: T/T
Details
Input Voltage: AC90V~264V Rated Power: 6.6KW
Output Voltage: 163~650V Output Current: 14A
Dimension: 270(length)x230(width)x110(height) Weight: About 10kg

Description

1. 6.6kw TC charger 512v home car charger best level 2 ev charger


TC charger can be switched automatically between the floating and balancing charging and also has the protection functions of reverse connection, output short-circuit and overload and so on. TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.

Because of our unique blend of knowledge and expertise in the automotive industry and charger knowledge. With a long-standing track record in the auto industry Our quality-oriented policy and creative thinking. We offer a variety of high-performance charging solutions to a variety of automobile manufacturers. Intelligent charging stations as well as digital solutions allow charging electric vehicles to be simple and effective.


Because of our unique blend of knowledge and expertise in the automotive industry and charger knowledge. With a long-standing track record in the auto industry Our quality-oriented policy and creative thinking. We offer a variety of high-performance charging solutions to a variety of automobile manufacturers. Intelligent charging stations as well as digital solutions allow charging electric vehicles to be simple and effective.




2. 512v 6.6kw Charger Parameter Specification:



Basic specification

NO

Terms

Parameter

1

Input voltage range

AC90V~264V

2

Nominal voltage

540v

3

Max output current

14A

4

Output voltage range

163~650V

5

Model-lithium battery

HK-LF-540-14

6

Frequency

45Hz~65Hz

7

Power factor

≥0.99

8

Efficiency at full loading

≥93%

9

Mechanical impact and vibration grade

QC/T 8952011

10

Protection grade

IP67

11

Operation temperature

- 40℃~85℃

12

Storage temperature

- 40℃~105℃

13

Control

CAN or Enable

14

Protection

Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error

15

Size

270(length)x230(width)x110(height)(nature-cooled)

16

Cooling way

nature-cooling, liquid-cooling, Enforce Air Cooling

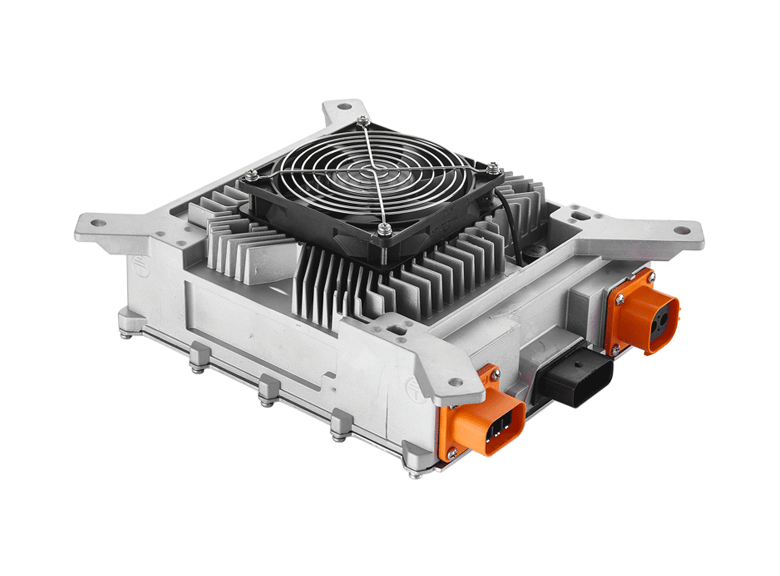

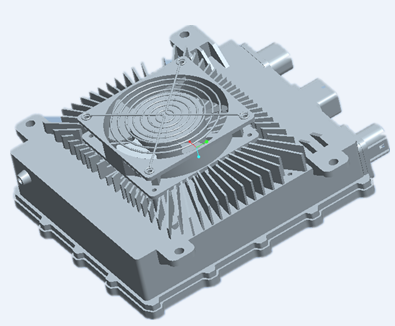

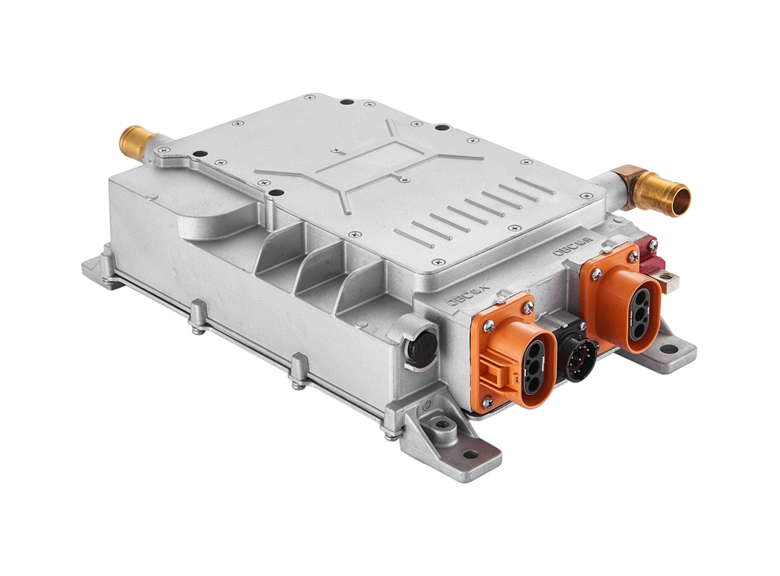

3. Detailed Images:


best level 2 ev charger.pngev charger.png



4.About us

In the end, a home EV charger is a good investment and has many benefits.

If you're thinking of installing an at-home EV charger, be connected with us for honest and impartial suggestions.

Get a quick free quote for your smart home charger today!
