Tiecheng charger 3.3kw On Board Charger 108v TC Elcon charger

Tiecheng charger 3.3kw On Board Charger 108v TC Elcon charger
Product Details:
Place of Origin: China
Brand Name: TC charger
Certification: CQC,UL,TUV
Model Number: 3.3KW HK-M Series
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: Plywood Box
Payment Terms: T/T
Details
Input Voltage: AC90V~264V Rated Power: 3.3KW
Output Voltage: 25v~700v Output Current: 7A~40A
Dimension: 198(length)x244(width)x95(height) Weight: About 10kg

Description

Tiecheng charger 3.3kw On Board Charger 108v 144v 312v TC Elcon charger


Tiecheng charger is a manufacturer of new energy vehicle car charger that works closely with us. Adhering to the concept of innovation leading and green low-carbon, we are committed to the research and development and manufacturing of core components such as car chargers and DC/DC converters for new energy vehicles, and make unremitting efforts to realize multifaceted and highly integrated technologies for car chargers to achieve high efficiency, high integration, high density and light weight of charging systems.

With innovative R&D technology, excellent manufacturing capability and superb service system, tiecheng charger has been highly recognized and trusted by our customers. Our goal is to become the best supplier of in-vehicle power system solutions with world-leading technology.


TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.






144v 3.3kw Charger Parameter Specification:

Basic specification

NO

Terms

Parameter

1

Input voltage range

AC90V~264V

2

Frequency

45Hz~65Hz

3

Power factor

≥0.99

4

Efficiency at full loading

≥93%

5

Mechanical impact and vibration grade

QC/T 8952011

6

Protection grade

IP67

7

Operation temperature

- 40℃85℃

8

Storage temperature

- 40℃105℃

9

Control

CAN or Enable

10

Protection

Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error

11

Size

198(length)x244(width)x95(height)nature-cooled

12

Cooling way

nature-cooling, liquid-cooling, Enforce Air Cooling

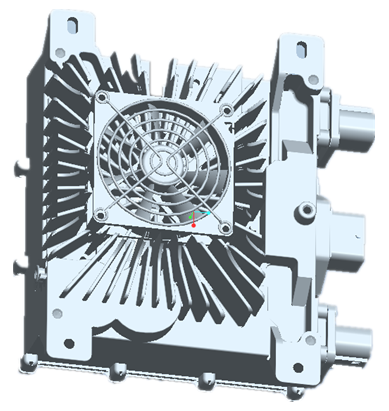

Detailed Images:

Tiecheng charger.pngOn Board Charger.png
