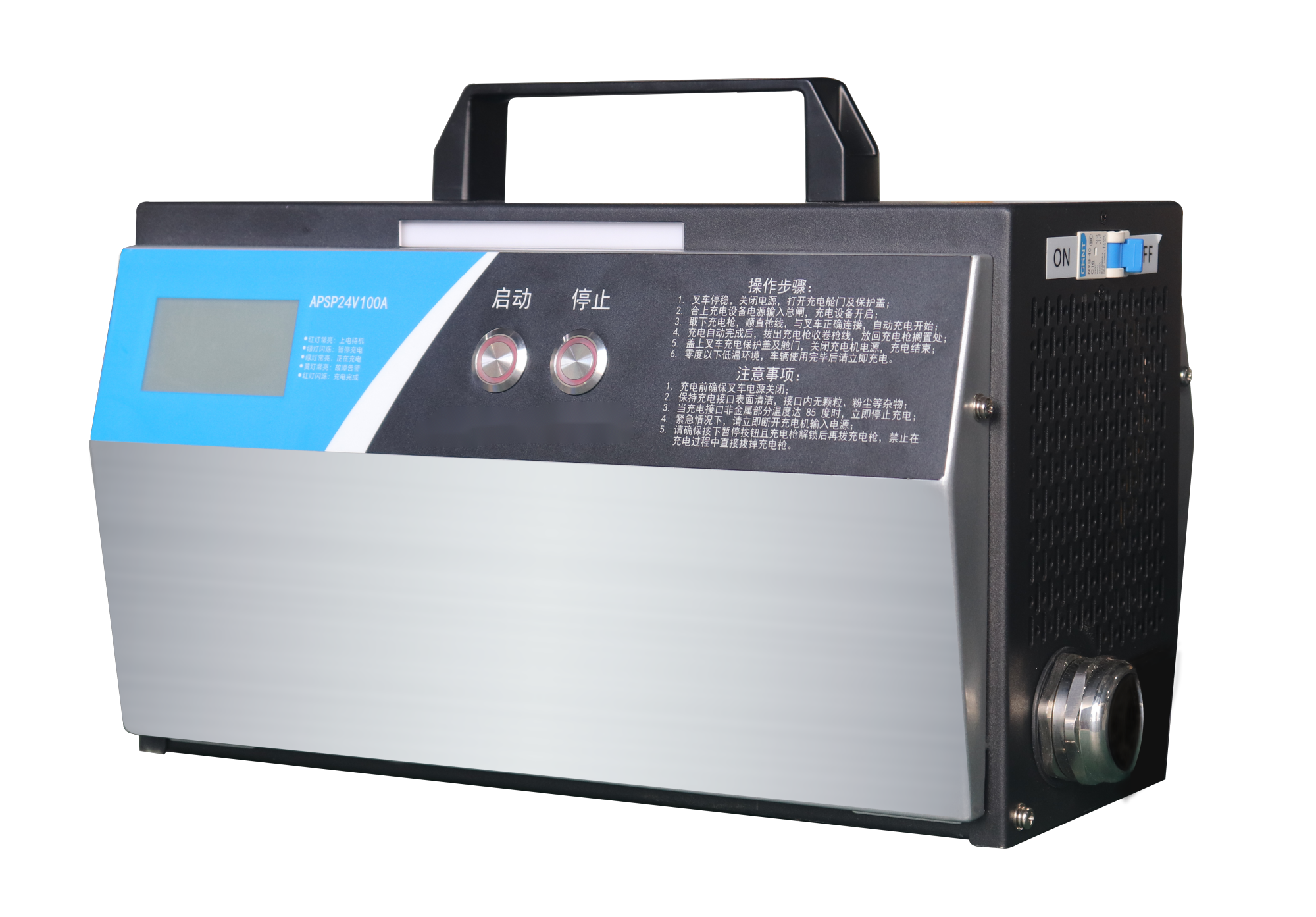

24V/48V 50A 100A lithium Battery charger

直流输出DC Output

额定输出功率Rated Output Power

1.2KW

2.4KW

2.4KW

额定输出电流Rated Output Current

50A

100A

50A

输出电压范围Output Voltage Range

16VDC 〜32VDC

16VDC〜32VDC

18VDC〜65VDC

8限流可调范围 Current Adjustable Range

5A 〜50A

5A〜100A

5A〜50A

峰值杂音Ripple Wave

W1%

稳压精度 Stable Voltage Precision

W±0. 5%

效率 Efficiency

92%。

保护 Protection

Short circuit, Overcurrent, Overvoltage, Reverse Connection and Over-Temperature Protection

交流输入AC Input

额定输入电压 Rated Input Voltage Degree

单相 220VAC

Single phase 220VAC

输入电压范围 Input Voltage Range

90VAC〜265VAC

90VAC〜265VAC

90VAC〜265VAC

输入电流范围Input Current Range

<9A

<18A

<18A

频率 Frequency

50Hz〜60Hz

功率因素(PF) Power Factor

30.99

电流失真(HD I) Current distortion

W5%

输入保护 Input Protection

过压、欠压、缺相、过流保护

Overvoltage, Under-voltage, overcurrent and Lack of phase Protection

工作环境条件Working Environment

工作环境温度

Working Environment Temperature

20°C~40°Cwork normally,

45°C~65°C reduce output,

over 65C Shutdown

存储温度 Storage Temperature

-40C〜75C

相对湿度 Relative Humidity

0〜95%

海拔 Altitude

52000m full load output,

2000~3000m according to the5.11.2 rules in GB/T3859.2- 1993,derating output

产品安全及可靠性 Product Safety And Reliability

绝缘强度 Insulation Strength

输入-输出 IN-OUT： 2800VDC/10mA/1Min

输入-外壳 IN-SHEL： 2800VDC/10mA/1Min

输出-外壳 OUT-SHELL： 500VDC/10mA/1Min

输入-输出 IN-OUT： DC500V>10MQ

输入-外壳IN-SHEL： DC500V>10MQ

输出-外壳OUT-SHELL： DC500V>10MQ

外卜形尺寸及重量Dimensions And Weight

外形尺寸(主机)Outline Dimensions

400 (D)X213(W)X278 (H)

净重 Net Weight

13.5Kg

防护等级 Protection Class

3IP20

其他Others

输出插件规格Output Connector

国标/Rema枪/Anderson

输入输出线长I/O line length

线长度约 3m About 3meters

散热方式 Heat Dissipation

强迫风冷 Forced Air-cooling
