Inductive wireless charging 300W 24v 20A Industrial robot charger

Product Details:
Place of Origin: China
Brand Name: EVL
Certification:
Model Number: PWS-600-DC-24N1
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms: T/T
Nominal Capacity: Nominal Voltage:
Internal Impedence: Operating Votage:
Dimension: Battery Weight: About 24kg

Product Description

1.Inductive wireless charging 300W 24v 20A Industrial robot charger


Overview:

The PWS-600-DC-24N1 charger is a device that uses the resonant electromagnetic induction principle to achieve non-contact charging and powering of 24V DC electrical devices. The device can be used with lithium batteries, lead-acid batteries, capacitive loads, etc.

The charger input uses 220VAC±20%, 50/60Hz power supply, output power up to 600W, output voltage 20-30VDC, nominal output voltage 24VDC, rated charging current 20A.

The transmitter chassis uses LEDs for status indication, providing a clear visual indication of the current charger operating status.


This charger consists of four major parts: transmitter chassis, transmitter coil, receiver chassis and receiver coil.





Note: The schematic diagram only shows the name of each part, the specific "4 installation dimensions and wiring port description" shall prevail.

1    Transmitter chassis

2    Transmitter chassis antenna head

3    Transmitter chassis power cable input

4    Transmitter coil

5    Transmitter chassis and transmitting coil connection cable

6    Transmitter chassis and transmitting coil connection line butt terminal

7    Receiver Coil

8    Receiver Chassis

9    Receiver chassis and receiving coil connection line

10   Receiver chassis and receiving coil connection line docking terminal

11   Receiver chassis antenna head

12   485 communication cable

13   Battery cable, red and black total 2pcs

14   Robotics




2.Parameter Specification:



Technical specifications

Parameter

Input Voltage

AC220V±20%

Input Frequency

50/60Hz±5%

Output power

MAX. 600W

Output Voltage

MAX. 30V

Output Current

MAX.20A

Output voltage error

±0.5%

Maximum transmission efficiency

84%

Vertical transmission distance

30mm~90mm

Horizontal degrees of freedom

30mm

Charging method

Constant current, constant voltage, trickle current

Waterproof grade

IP65

Voltage stabilization accuracy

±0. 1V

Current stabilization accuracy

±0.2A

Voltage Ripple

≤0.5%

Communication Interface

RS485

Operating ambient temperature

-25~+50℃

Storage ambient temperature

-30~+60℃

Transmitter chassis weight

8.8±0. 1KG

Transmitter coil weight

6.1±0. 1KG

Receiver chassis weight

2.8±0. 1KG

Receiver coil weight

5.5±0. 1KG

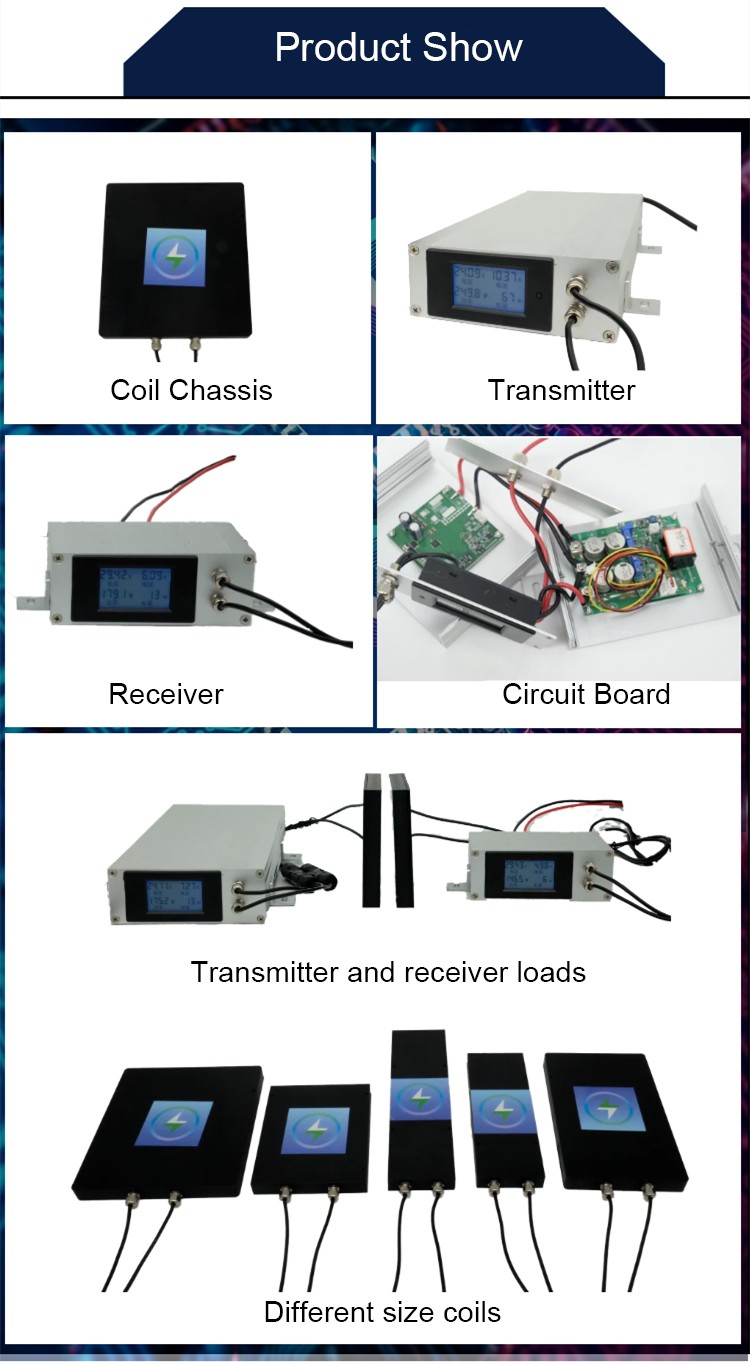

3.Detailed Images:

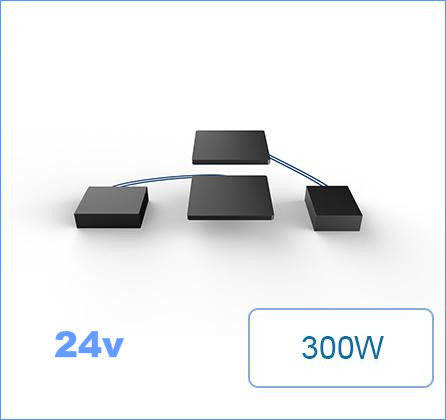

300W wireless charging.png

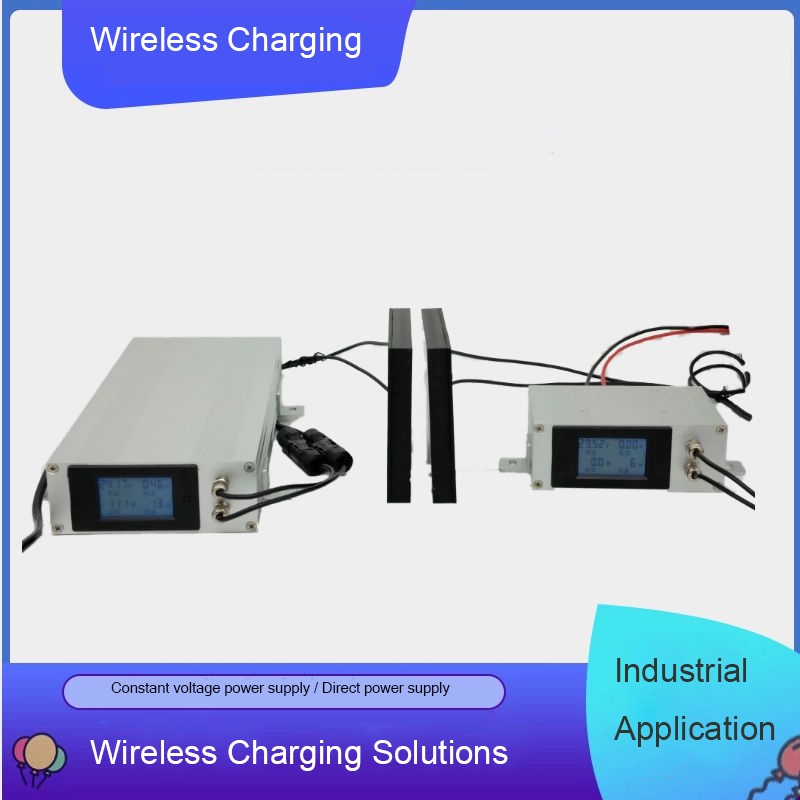

industrial battery charger.jpg


industrial wireless charging.jpg


wireless ev car charger.jpg


agv wireless charging.jpg


wireless electric vehicle charging.jpg



wireless electric charging.jpg





4.Application:


wireless charging battery charegr.jpg
