5kw/12kW Three Phase 2 MPPT Hybrid Inverter for Low Voltage Battery

Product Details:
Place of Origin: China
Brand Name: Hybrid Inverter
Model Number: 5kw-12kw
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: Wooden box or carton
Payment Terms: T/T
Nominal Capacity: Nominal Voltage:
Internal Impedence: Operating Votage: 40-60v
Dimension: 422*702*281 Battery Weight: 33.6kg

Product Description

5kw/12kW Three Phase 2 MPPT Hybrid Inverter for Low Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.


100% unbalanced output, each phase; Max. output up to 50% rated power

AC couple to retrofifit existing solar system

Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 240A

6 time periods for battery charging/discharging

Support storing energy from diesel generator

48V low voltage battery, transformer isolation design

6 time periods for battery charging/discharging

Inverter picture:

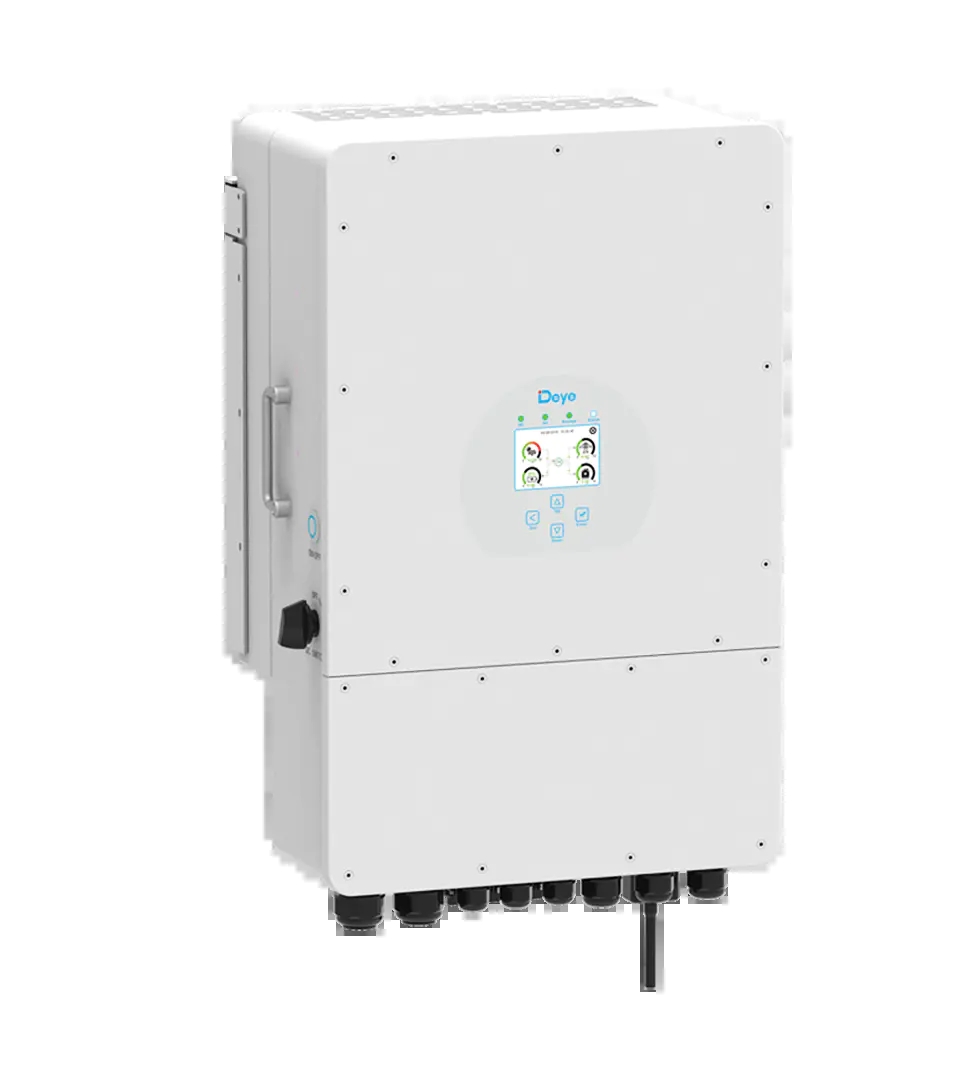

5kw inverter.jpg

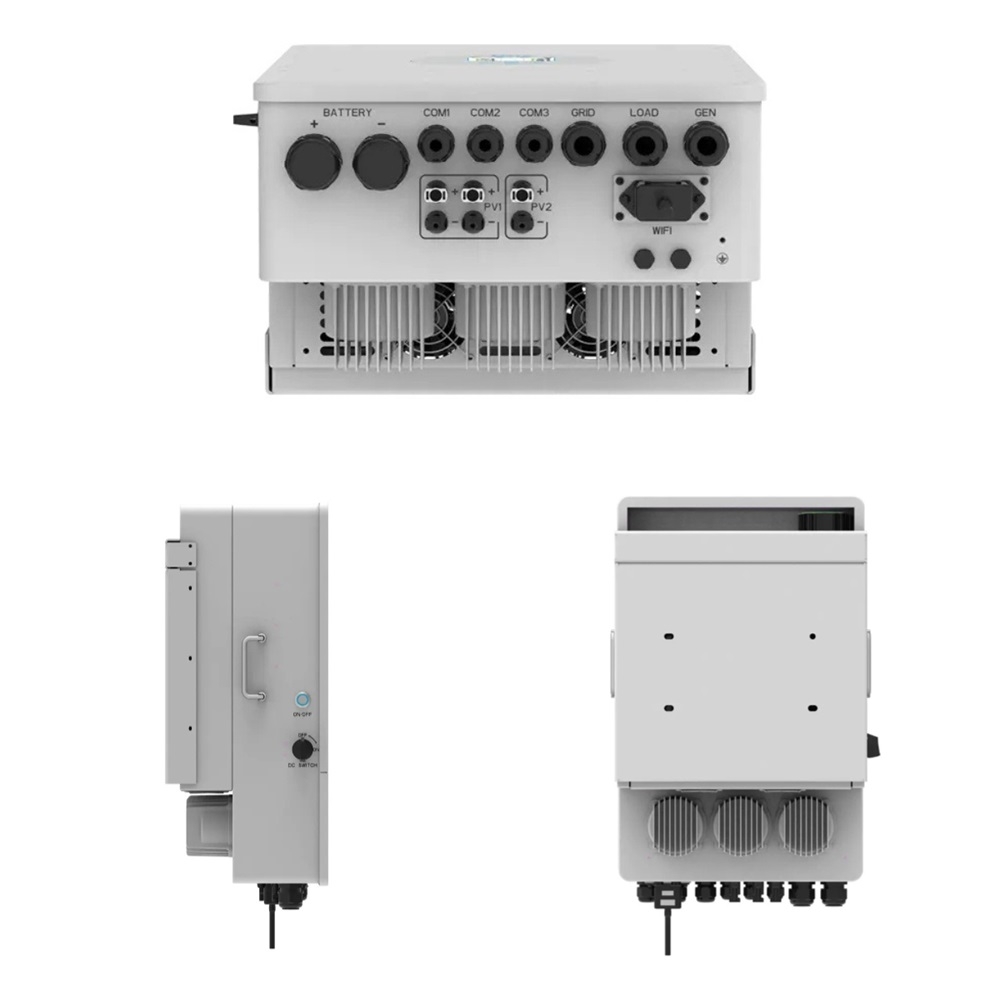

12kw power inverter.jpg

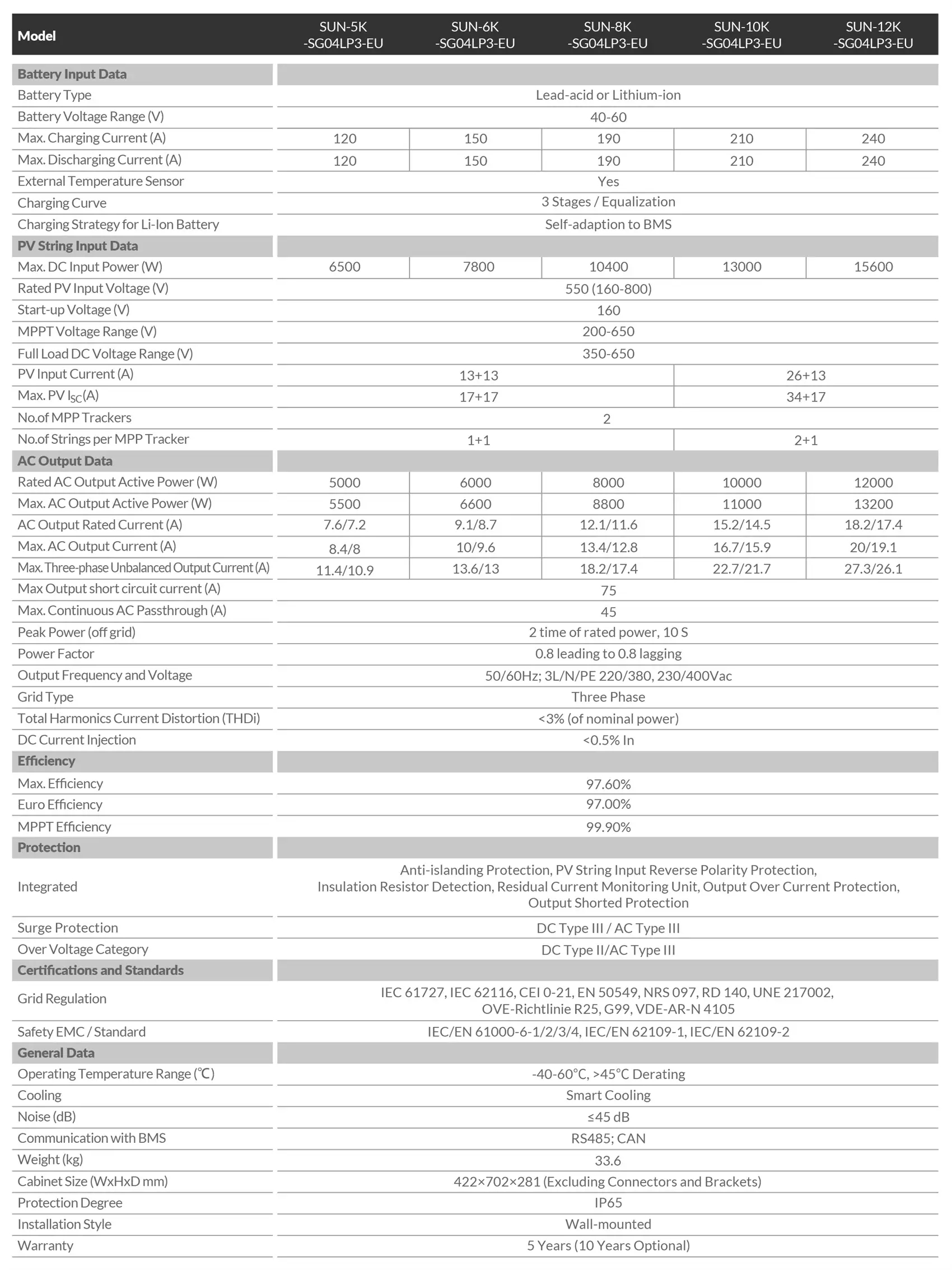

Specification Sheet:

inverter specification.jpg
