Product Details:
|
| Nominal Capacity: | 2100mAh | Nominal Voltage: | 3.6V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | 3.3~3.6V |
| Dimension: | φ14.5 X50.5 | Battery Weight: | 20g |

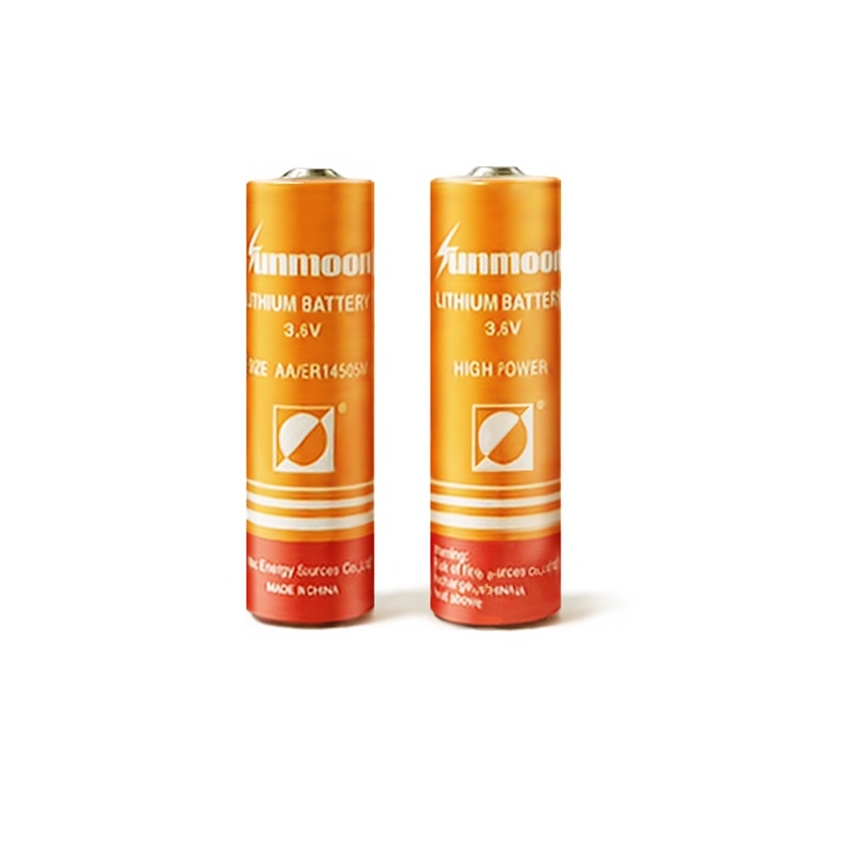

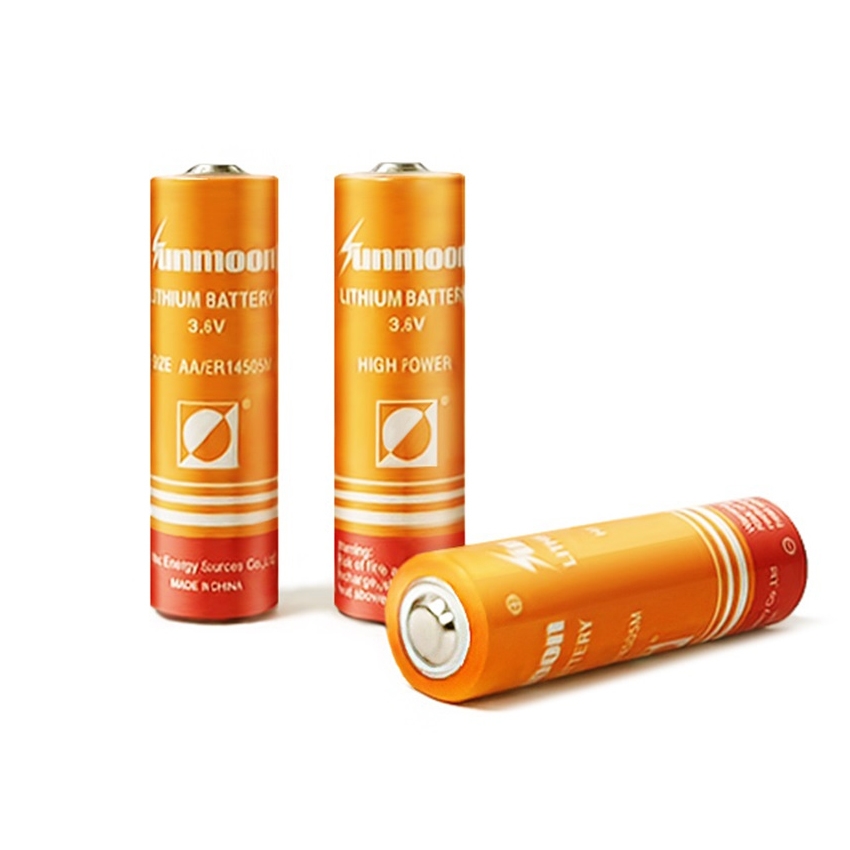

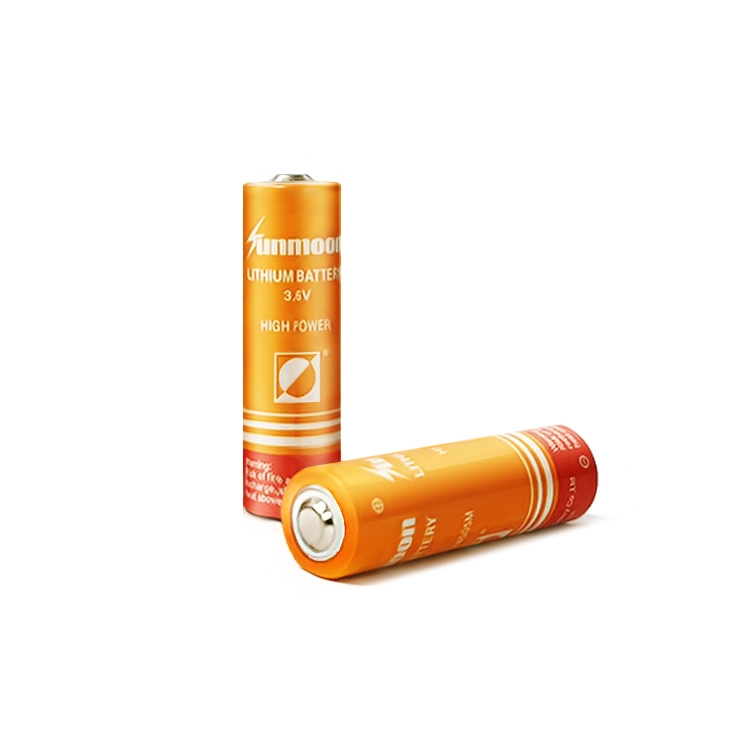

ER14505M LiSOCL2 Battery is characterized by long-time micro current operation, stable operating voltage and good safety. Specific energy up to 430Wh/kg. The open circuit voltage ≥3.65V, the working voltage is usually between 3.3 and 3.6V, and more than 90% of the battery capacity is output on a high voltage platform with almost constant voltage. The temperature range is very wide and can reach -55~+85℃.
High Energy Density: Over 430Wh/kg
Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V
Wide Operating Temperature Range: -55°C+85C
Long Storage Life: Over 10 years [Under normal room Temperature]
Operation Characteristic: Suitable for high-power continuous discharge and pulse discharge
Item | Specifications |
Product Model | ER14505M |
Product type | LI/SOCl₂ |
Battery charging | No |
Nominal voltage | 3.6V |
Maximum Continuous Current | 300mA |
Nominal Capacity | 2100mah |
Maximum Pulse Current | 1000mA |
Weight | 20g |
Operating Temperature | -55℃~+85℃ |
Discharge cut-off voltage | 2V |
Maximum Profile Size | φ14.5 X50.5mm |
Rated Discharge Current | 3mA |
Suitable for high-power continuous discharge and pulse discharge
Mainly used for smart meters (water, electricity, gas meters), computer-powered power supplies, medical devices, wireless communication, oil drilling, portable communication equipment, scientific research instruments, automotive electronics, military equipment, etc.
