Product Details:
|
| Nominal Capacity: | 280Ah | Nominal Voltage: | 1000V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | 280V～408.8V |
| Dimension: | 1130*1000*1600mm | Battery Weight: | 1.4t |

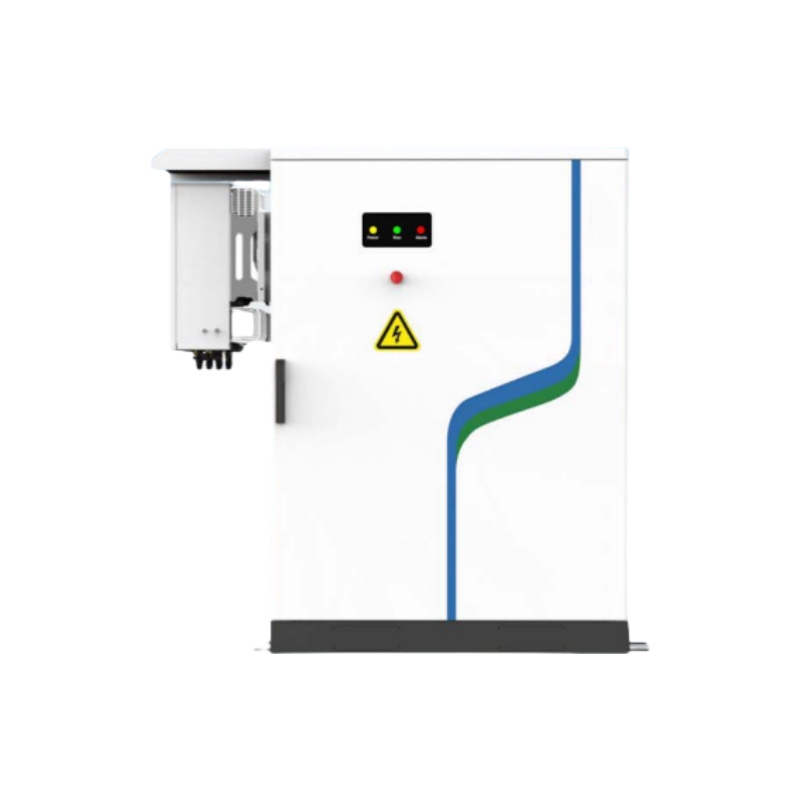

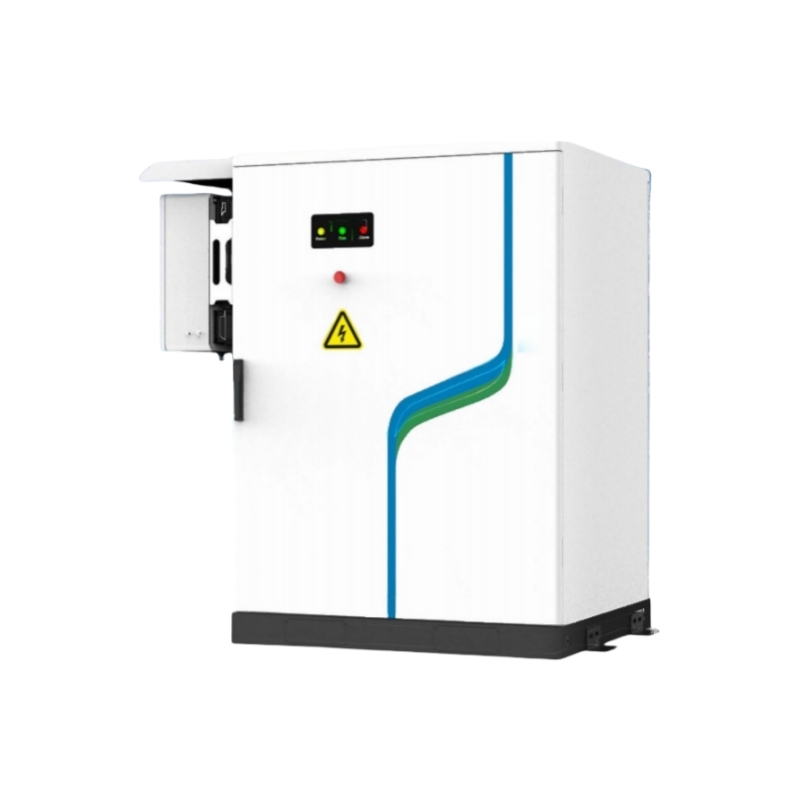

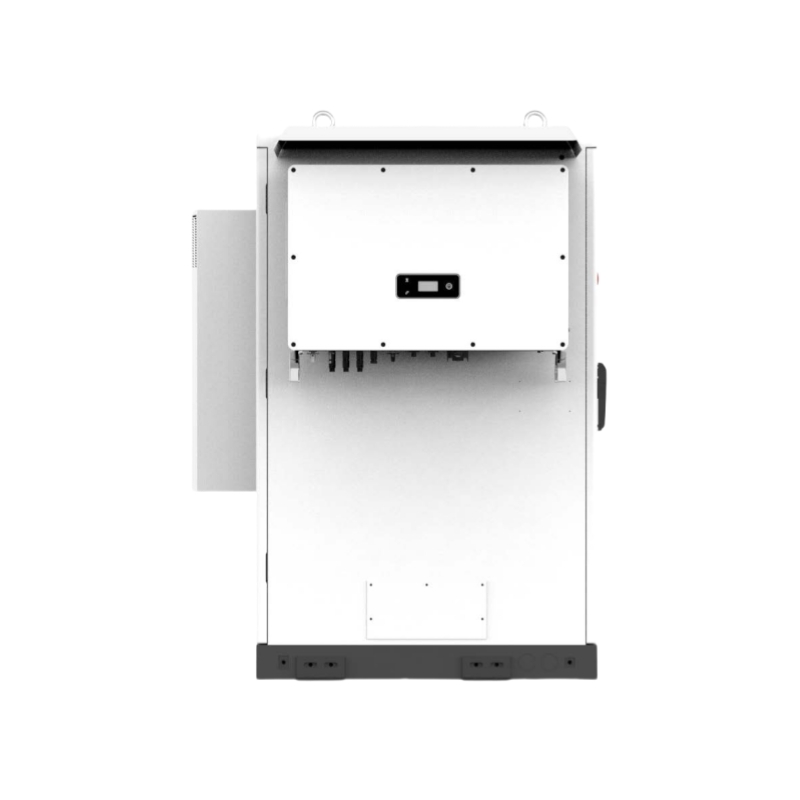

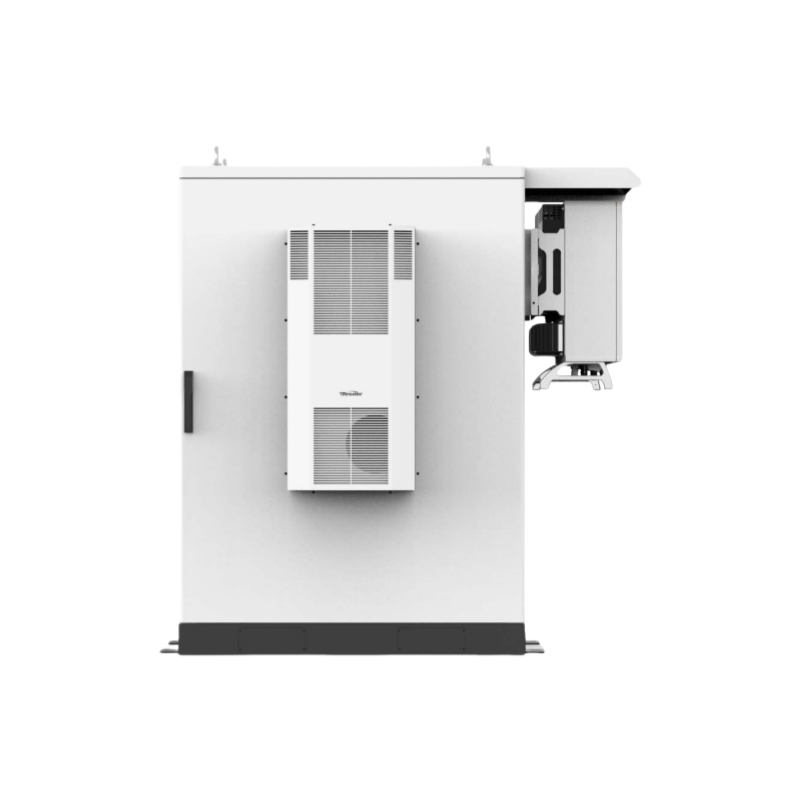

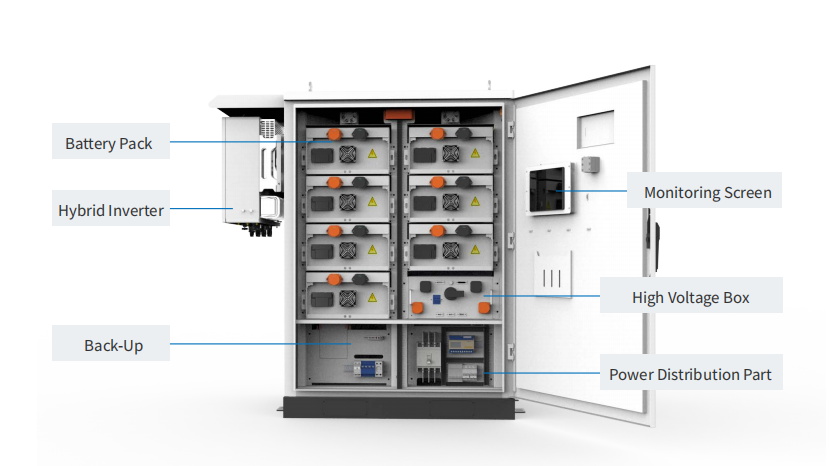

Energy Cube 50kW-100kWh C&i ESS integrates photovoltaic inverters and a 100 kWh energy storage system. It includes battery cells, Battery Management System (BMS), photovoltaic inverters, fire protection system, distribution system, thermal management system, and energy management system. This achieves an integrated "PV + Energy Storage" solution. The cabinet system adopts a modular design, allowing flexible configurations for photovoltaic, batteries, and loads, meeting various user-side applications.
● High Integration
The equipment is highly integrated, with a compact product size, occupying only 1.2 square meters per cabinet.
● Reliable Performance
Low loss series connection on the DC side dynamic temperature regulation enhanced ESS cycling efficiency.
● Security and stability
Utilizing top-tier battery cell suppliers, battery safety warnings and fault-switching automatic fire system response.
● PV / DG Application
Directly connecting photovoltaic modules or diesel generators to establish an independent power grid.
● Multi-Unit Parallel Expansion
Flexible scalability, on-demand configuration supports multiple units in parallel cooperative control.
● APP Intelligent Control
Enhance energy efficiency by controlling the operational status and strategies of the devices through a mobile app.
Item | Specifications |
PV Parameter | |
Maximum Input Power | 75kW |
Maximum Dc Input Voltage | 1000V |
Mppt Operating Voltage Range | 200-850V |
Maximum Input Current | 30A×4 |
Rated Output Power | 50kW |
Maximum Conversion Efficiency | 98.8% |
System Parameter | |
Operating Environment | -20℃～50℃（Power derating 45℃+） |
Size (W*D*H mm) | 1130*1000*1600 |
Weight | About 1.4t |
Class Of Protection | IP54 |
Allowable Relative Humidity | 0-95% |
Allowable Altitude | ≤2000m（Power derating 2000m + ） |
Certification Standard | IEC62619、EN62477-1、IEC 63056 |
Item | Specifications |
DC Parameter | |
Battery Type | LFP |
Combination Mode | 1P112S |
Rated Capacity | 280Ah |
Rated Energy | 100kWh |
Rated Voltage | 358.4V |
Rated Power | 50kW |
Operating Voltage Range | 280V～408.8V |
Charge/Discharge Current | 100A/100A |

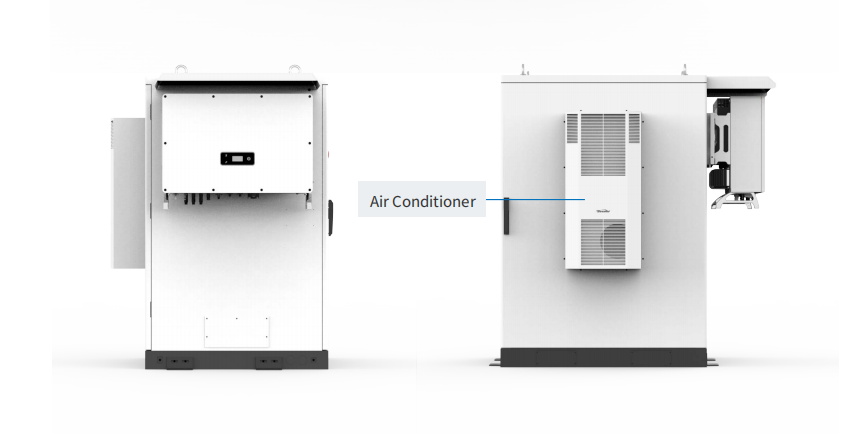

Cooling Mode | Air Cooling |
Cycle Number | 6000 |
Fire Protection System | Aerosol Extinguishing |
Detector Type | Temperature / Smoke Sensor / Water Leak |
AC Parameter | |
Rated Output Power | 50kW |
Rated Voltage | 3L/N/PE; 220/380V;230/400V;240/415V |
Grid Frequency | 50/60Hz |
Maximum Output Current | 83A |
Power Factor | 0.8 Lead... 0.8 lag |

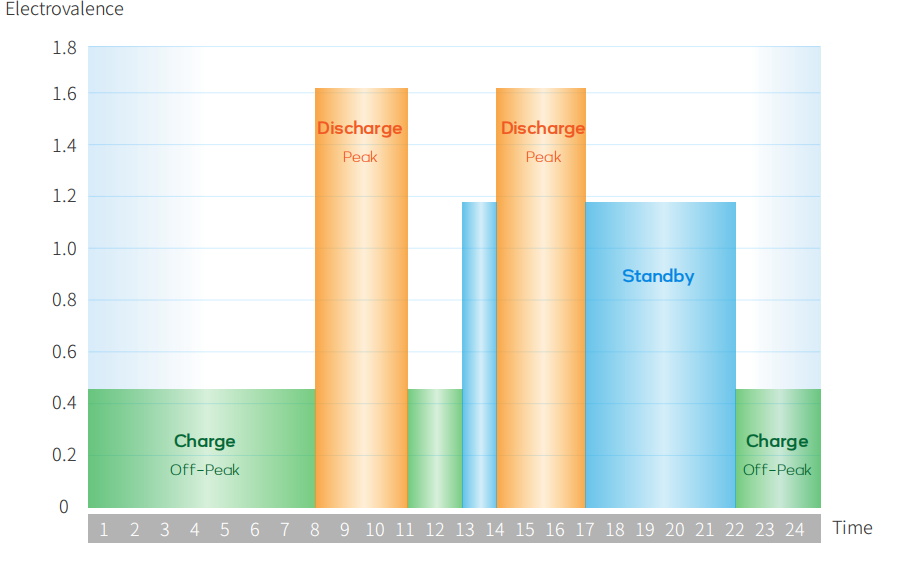

22:00-8:00
Charging during off-peak electricity price periods, 8:00-11:00, 14:00-17:00. Discharging during peak electricity price periods.
During device charging, the system automatically monitors the current electrical load and PV generation under the transformer and adjusts the charging power
of the system based on real-time load conditions. This control ensures that the total power consumption remains below the transformer capacity, preventing overload.
● Savings on Electricity Costs through Peak-Off-Peak Price Differentials
During periods of low electricity prices, use the grid to charge the devices. During periods of high electricity prices, discharge the batteries to power the load.
● Used as a Backup Power Source during Power Outages
It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.
● Providing Power Compensation
Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation
● PV and Energy Storage Integration: Building an Independent Grid
Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.
