Product Details:
|
| Nominal Capacity: | Nominal Voltage: | ||
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |

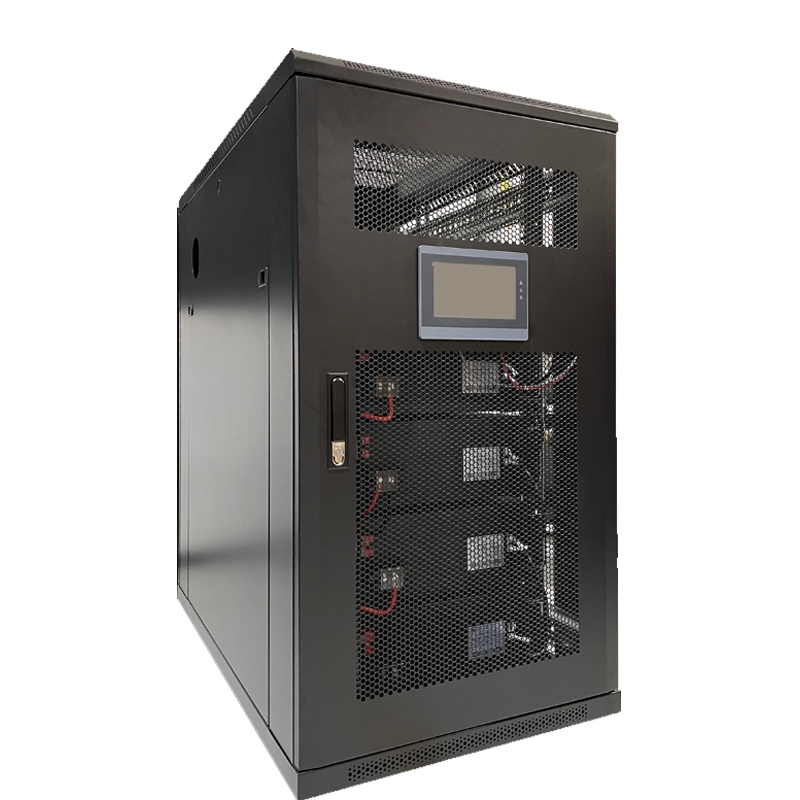

200 kWh Outdoor Sodium-Ion Cabinet System – a complete, all-in-one energy storage solution engineered for outdoor deployment.
Liquid-Cooled 160 Ah IP52 Sodium Battery Packs with an integrated 6 kW cooling unit for consistent thermal performance.
High-Voltage Box (DC 1500 V, 200 A) paired with a full aerosol fire protection system for enhanced operational safety.
160 kW Power Conversion System (PCS) – wide 720–1500 V DC input range, 400 V / 50 Hz AC output.
Integrated EMS, Lightning Protection & Circuit Breaker Accessories for intelligent control and reliable protection.
Unified Liquid Cooling Pipeline Design throughout the outdoor cabinet, ensuring efficient heat dissipation and a clean, compact layout.
Product Name | Specifications |
Intelligent sodium-ion battery energy storage System - Outdoor Cabinet | Single set capacity: 200kWh |
battery pack | The IP52 battery pack utilizes a 160Ah sodium battery |
high-voltage box | Liquid-cooled battery cluster high-voltage box, W480*D610*H210mm, rated current 200A |
Liquid cooling unit(including liquid cooling pipeline) | 6kW cooling capacity liquid cooler |
cabinet body | (D*W*H) 1600*1375*2450mm |
fire protection system | PACK-level aerosol + cluster-level aerosol |
Attachment | Circuit breaker, lightning protector, miniature circuit breaker |
PCS | The rated power of a single unit is 160kW, with an AC output of 400V/50Hz and a DC input range of 720-1500V |
Energy management system | EMS |
