Product Details:
|
| Nominal Capacity: | 300/342/600Ah | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | 43.2-57.6V |
| Dimension: | 810*550*270 | Battery Weight: | 128 |
The 51.2V 300Ah/342Ah/600Ah vertical residential household energy storage lithium battery, a long-lived lithium iron phosphate battery, vertical energy storage battery can move freely and conveniently, high-performance BMS protection and management battery system, with a wider range of use and longer lifespan than traditional batteries.
This battery BMS supports simultaneous communication and docking with multiple inverter brands.
LiFePo4 cell class A
Support 15pcs In Parallel

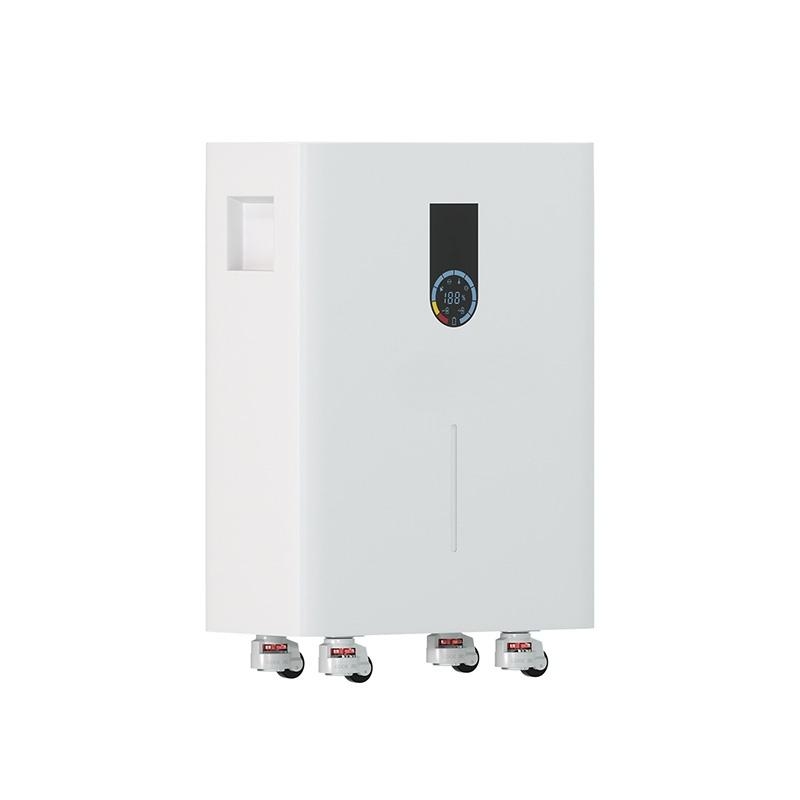

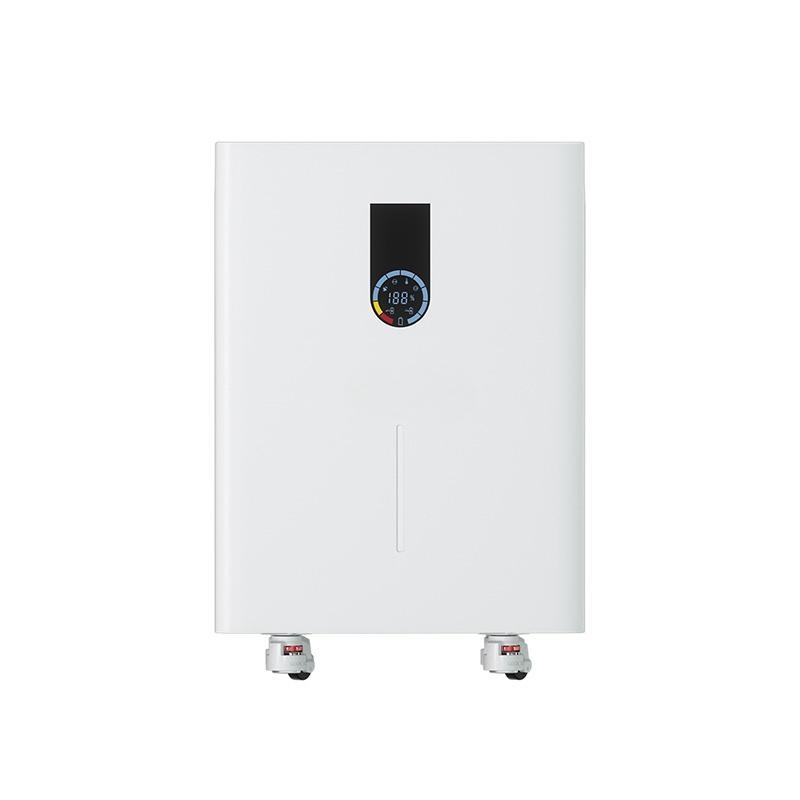

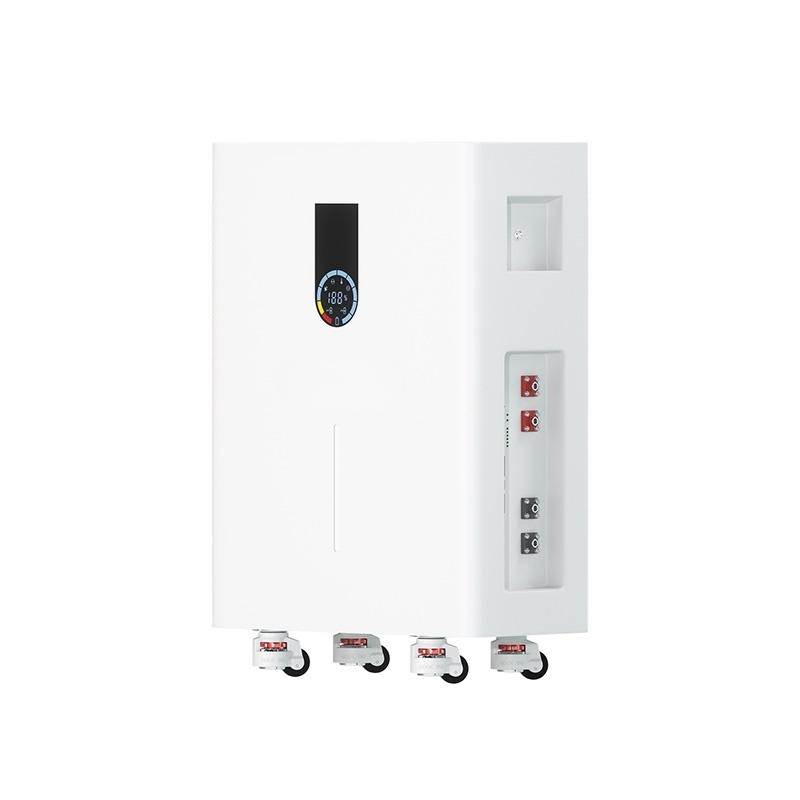

Vertical Design With Wheels ls Easier To Move
Compatible With Multiple Inverter Brands
6000 cycle times DoD 80%
BT/WlFl is optional
lp67 0ptional
Model | SPV-51.2V-300Ah | SPV-51.2V-342Ah | SPV-51.2V-600Ah |
Standard Voltage | 51.2V | ||
Standard Capacity | 300Ah | 342Ah | 300Ah |
Standard Energy | 15.36kWh | 17.5kWh | 30.7kWh |
Working Voltage | 43.2 - 57.6V | ||
Standard Charge Current | 150A | 150A | 300A |
Standard Discharge Current | 200A | ||
Suggested DOD | 80% | ||
Cycle Life | >6000 cycles | ||
IP Rating | IP21 (IP67 optional) | ||
Operating temperature for discharge | -20℃ - 60℃ | ||
Operating temperature for charge | 0℃ - 45℃ | ||
Max Parallel | 15pcs | ||
Communication | RS232/CAN/RS485(WIFI/BT optional) | ||
Display | LCD | ||
Warranty | 5 years | ||
Certificate | UN38.3/MSDS/CE/ROHS/FCC | ||
N.W./unit(kg) | 120 | 128 | 250 |
G.W./unit(kg) | 139 | 147 | 284 |
Product Size/unit(mm) | 810*550*270 | 810*550*270 | 1150*800*270 |
Meas/unit(mm) | 880*633*422 | 880*633*422 | 1210*885*470 |
Wind Power / Solar system / telecommunications / home / RV / Marine
