Product Details:
|
| Nominal Capacity: | 1200mAh | Nominal Voltage: | 3.6V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | 2.0 V～3.65 V |
| Dimension: | φ14.5 X 25.2 | Battery Weight: | 11g |

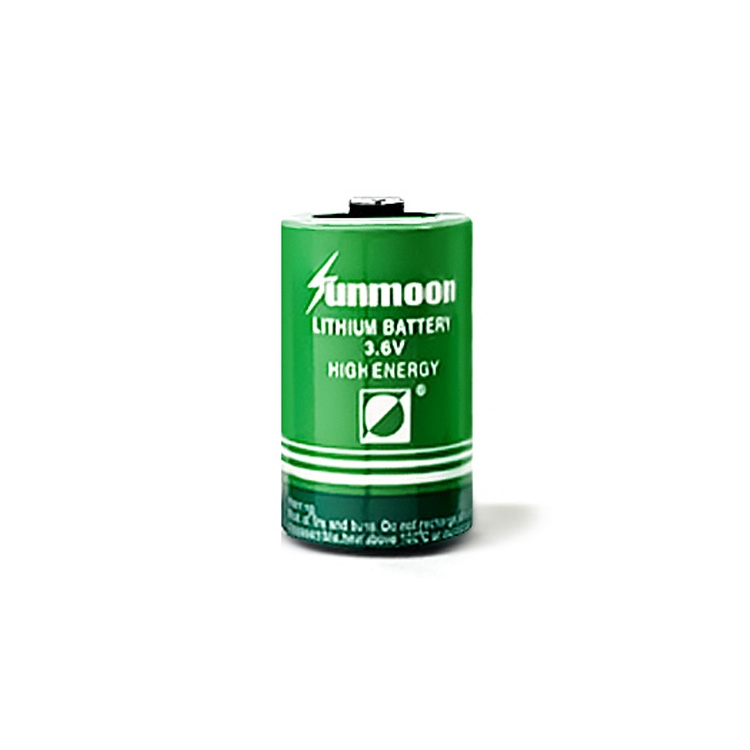

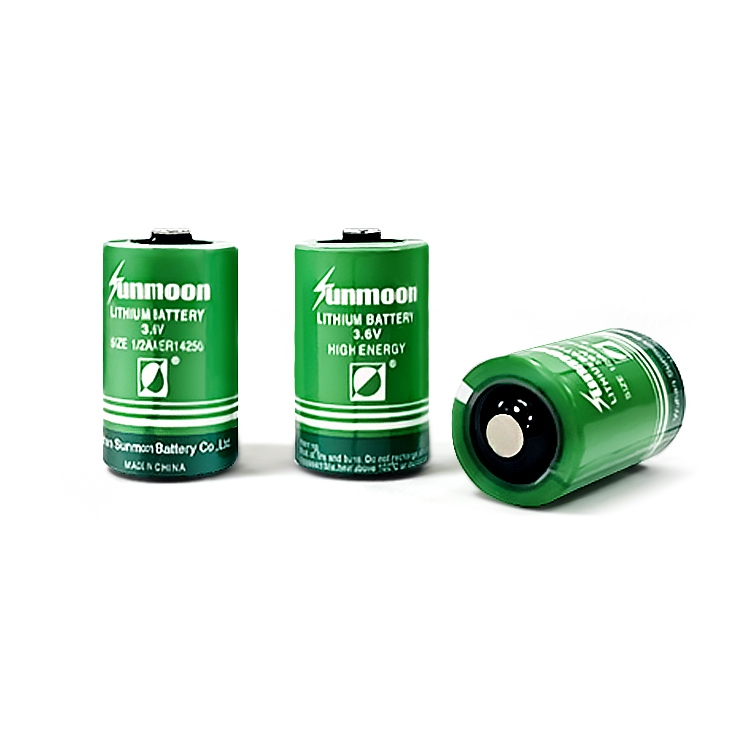

ER14250 LiSOCL2 Battery is characterized by long-time micro current operation, stable operating voltage and good safety. Specific energy up to 620wh/kg. The open circuit voltage ≥3.65V, the working voltage is usually between 3.3 and 3.6V, and more than 90% of the battery capacity is output on a high voltage platform with almost constant voltage. The temperature range is very wide and can reach -55~+85℃.
1. High energy density over 620wh/kg [highest among all the chemical batteries]
2. Open circuit voltage ≥ 3.65V, and operating voltage ranging from3.3~3.6V
3. Wide operating temperature range: -55°C~+85°C
4. Long storage life over 10 years [under normal room temperature]
5. Suitable to operate under long-term tiny current with stable voltage

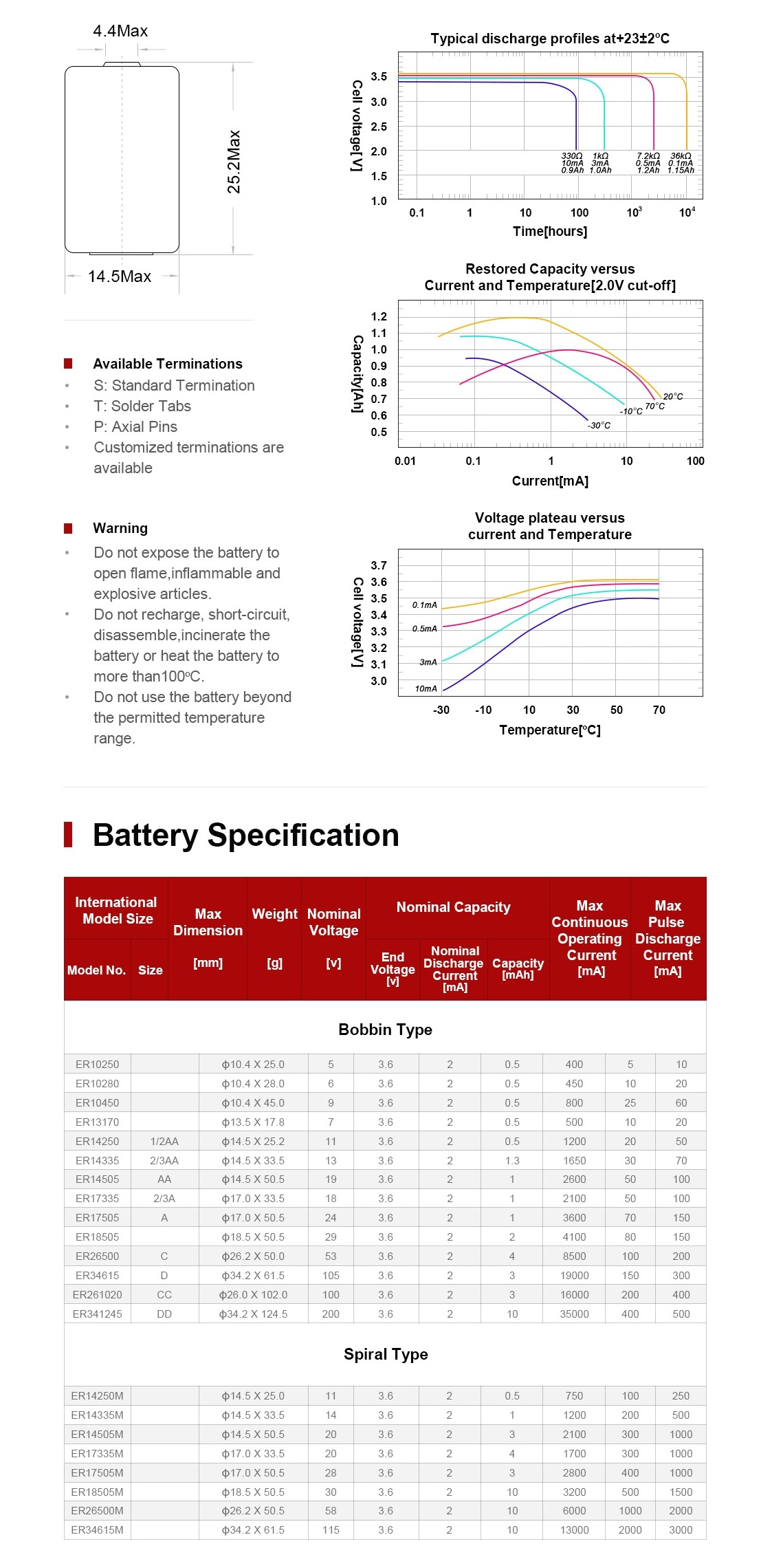

Parameter | Specification |
Product Model: | ER14250 |
Battery Charging: | No |
Maximum Profile Size（mm）: | φ14.5 X 25.2 |
Weight: | 11g |
Nominal Capacity（mAh）: | 1200 |
Use Temperature Range: | -55℃~+85℃ |
Nominal Voltage（V）: | 3.6 |
Discharge Cut-off Voltage（V）: | 2.0 |
Maximum Continuous（mA）: | 20 |
Maximum Pulse Discharge（mA）: | 50 |
Mainly used in smart meters (water, electricity, gas meters), computer support power supply, medical equipment, wireless communication, oil drilling, portable communication equipment, scientific research equipment, automotive electronics, military equipment and so on
