Product Details:
|
| Nominal Capacity: | 165mAh | Nominal Voltage: | 3V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |

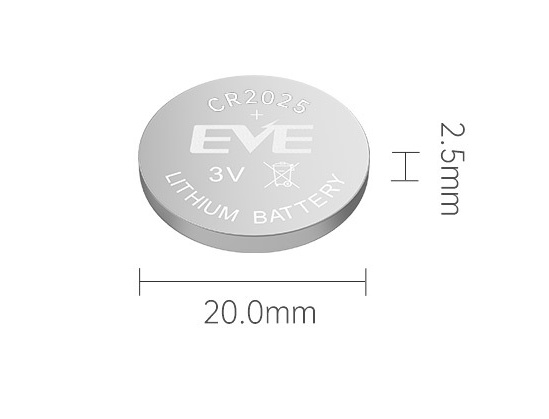

| Dimension: | 20.0×2.5mm | Battery Weight: | 2.5g |
1. Low self-discharge rate: annual self-discharge is less than 1%
2. Long cycle life: to meet long-term needs
3. High security: technical leak proof, safe and durable
4. Ultra-wide temperature application: -40℃-70℃, suitable for various extreme environments
Comprehensive customized solutions-Power solutions for smart security/smart life/smart healthcare
Parameter | Specification |
Model | CR2025 |
Nominal Voltage | 3V |
Nominal Capacity | 160mAh |
Max Discharge Current | 3mA |
Max Pulse Current | 5mA |
Standard Discharge Current | 0.2mA |
Maximum pulse Current (mA) | 15 |
Operating Temperature | -20 ~+70°C |
Approx Weight | 2.5g |
Standard Charge Current | 1550mA (1.55A) |
Dimension (mm) | 20.0×2.5 |
Customized Application Solutions
Reliable power solutions for health care devices, such as blood glucose meters, thermometers, insulin pumps, AEDs, etc.
Comprehensive and reliable power solutions to satisfy the needs of smart life in various fields such as municipal services, retail services, and home services.
Comprehensive and reliable power solutions for security to realize functions such as intelligent management and early warning.

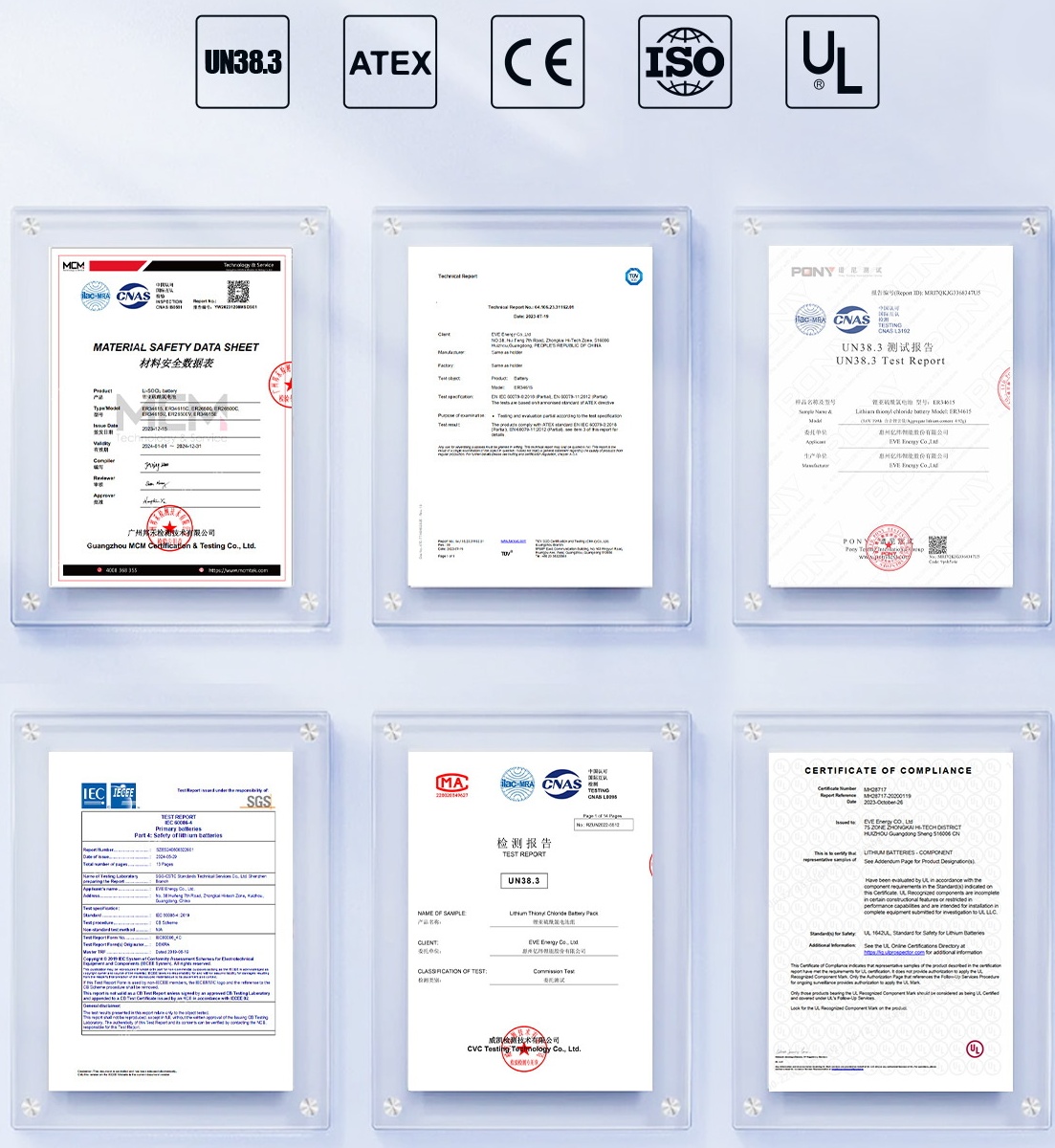

Meet the UL1642, UN38.3, ATEX and other certificates

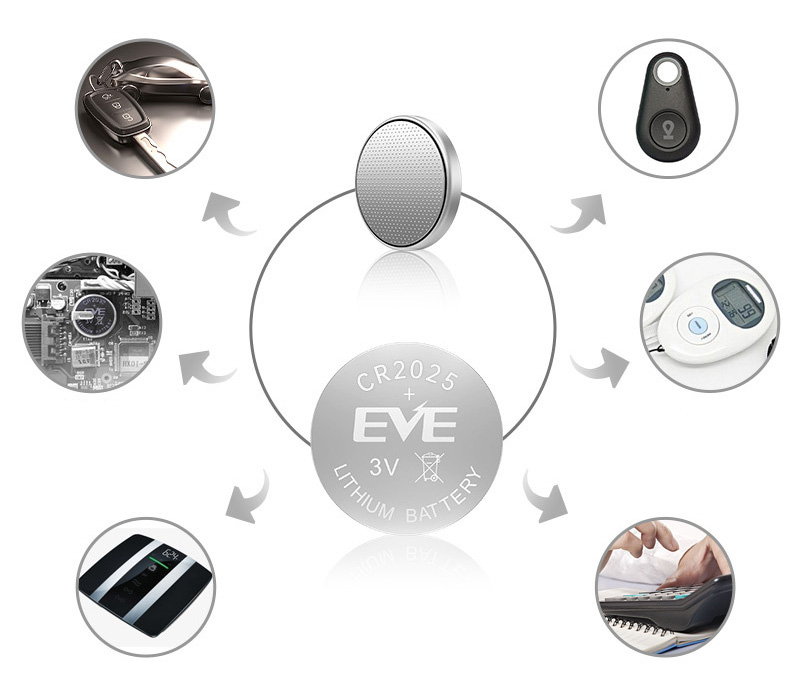

EVE Lithium CR2025 3V Battery Wide application range. Widely used in smoke detector, smart meters, water meters, heat meters, gas meters, memory backup, clock power, data backup electricity, Source, smoke alarm, temperature monitor, positioning device, Marine telemetry system, tire pressure monitoring system, ETC (Toll collection System without stopping), automatic, instrumentation equipment, oil Wells, mines, medical equipment, Burglar alarm, wireless communication, Marine life saving, etc
During the use of batteries, the following requirements must be observed

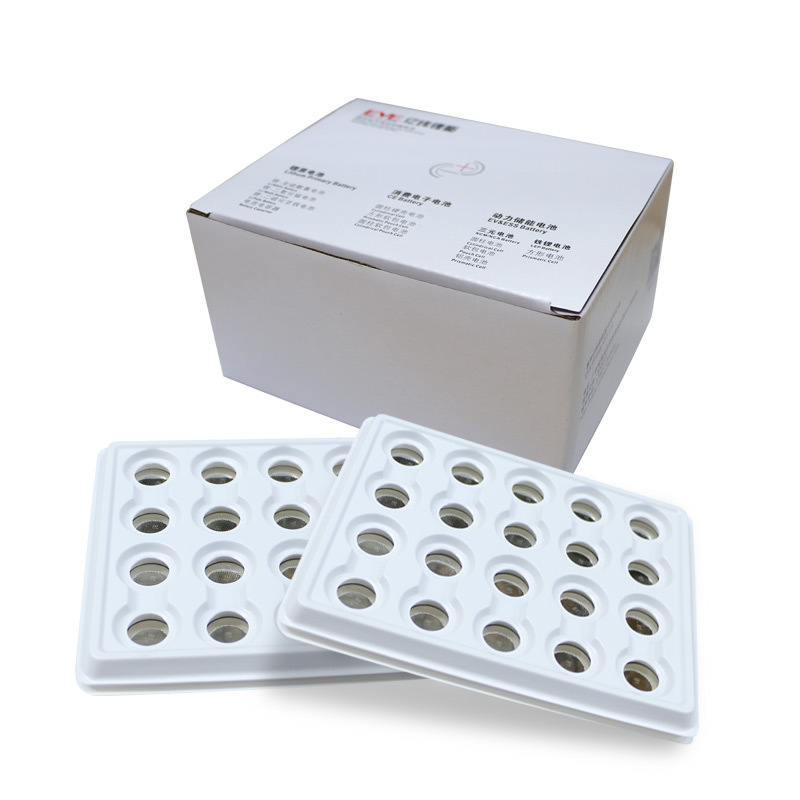

1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid accidental short circuit.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
