Product Details:
|
| Nominal Capacity: | 30Ah | Nominal Voltage: | 3.67V |
|---|---|---|---|
| Internal Impedence: | 1.4 mΩ | Operating Votage: | 2.8~4.2 V |
| Dimension: | （46.16±0.15)×(96.50±0.35)mm | Battery Weight: | 415±10 g |

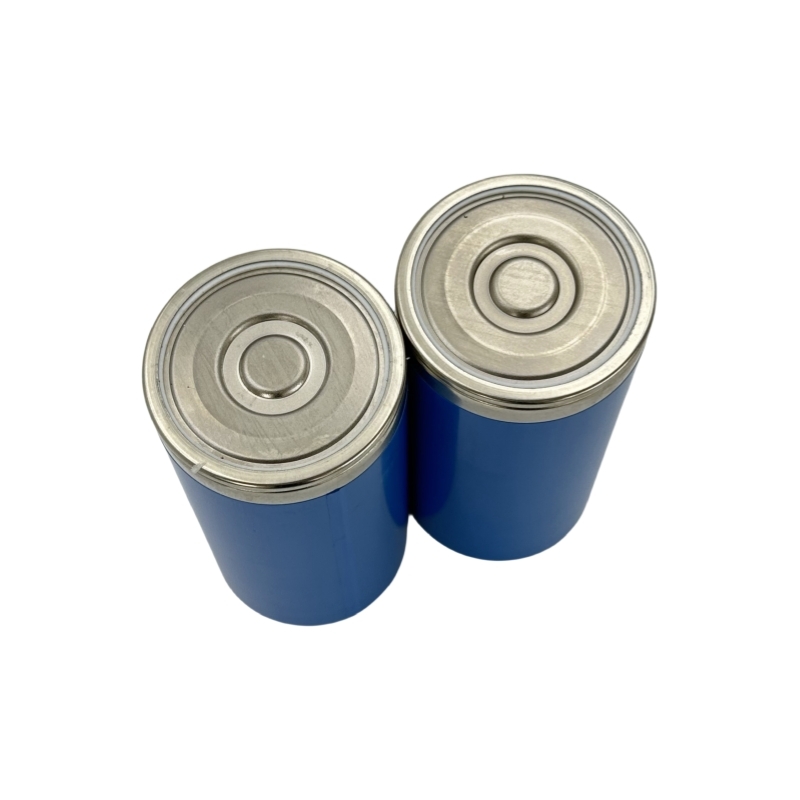

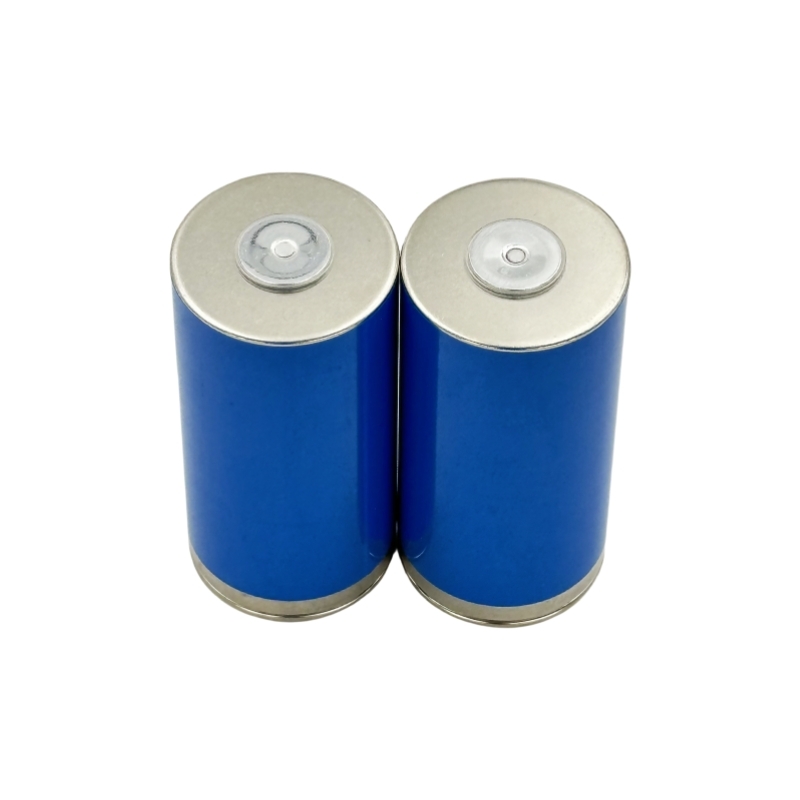

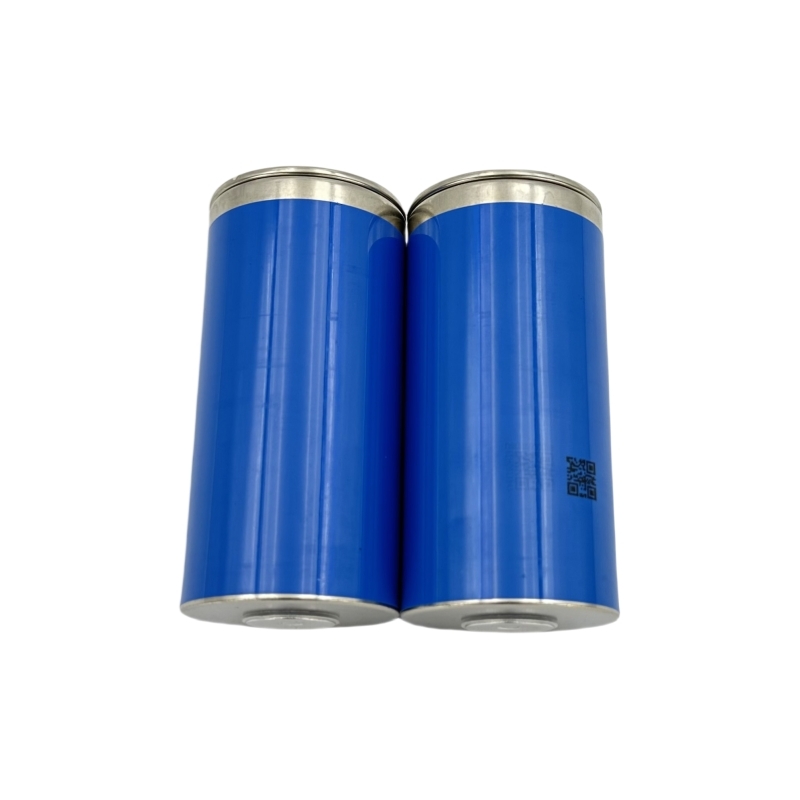

EVE 4695E is a 3.67V voltage, 30Ah capacity, 1.46mΩ full-tab battery cell, with a maximum discharge current of 120A and a weight of 415g. It is suitable for various applications such as electric sightseeing vehicles, electric scooters, two-wheelers, and energy storage batteries. It measures 46*96.5 millimetres and has a cycle life of 1,000 times, making it an ideal, durable power source for your custom battery pack assembly.
● High Capacity: Rated capacity is 30Ah
● Compact size: 46*95mm, weight is 415±10g.
● Wide Application: Suitable for energy storage batteries, AGV, two-wheel electric vehicles, electric scooters and electric bicycle battery packs.
● Flexible Warranty: 1-year warranty for your peace of mind.
● Rechargeable: Lithium-ion technology ensures long-term availability.
● Customizable: Supports custom assembly, providing PCB, wire and connector options.
● International Compliance: CE, RoHS, UN38.3 and other certifications ensure safety and quality.
● Long Cycle Life: Can withstand up to 1000 charge and discharge cycles, maintaining long-lasting performance.
Item | Specifications |
Normal Capacity | 30.0 Ah; 1/3C; 25±2°C, 2.8~4.2 V |
Normal Energy | 110.0Wh; 1/3C, 25±2°C, 2.8~4.2 V |
Nominal Voltage | 3.67V (1/3C) |
Discharge Capacity | ≥30.0 Ah; 25°C, 1/3C, 2.8~4.2 V; |
Discharge Energy | ≥110.0 Wh25°C, 1/3C, 2.8~4.2V |
AC Internal Resistance of BOL Status | ≤1.8 mΩ |
DC Internal Resistance of BOL Status | ≤4.0 mΩ |
Standard Charge Current | 10Ah (1/3C) |
Standard Discharge Current | 10Ah (1/3C) |
Maximum Continuous Charging Current | 1C; (0%, 90%) SOC |
Cycle Life | 1000 cycle, 25°C, 3.0~4.15 V, 0.5C/0.5C |
Environmental Temp | 0~45°C; Charge Temp |
-20~45°C; Discharge Temp | |
Storage Temp | 0~25°C; 1 Year |
0~45°C; 3 Month | |
-20~55°C; 1 Month | |
Self Discharge Rate@25℃ | First month 0.05 V/month Followed by 0.03V/month |
Shipping Voltage Range | 3.5~3.8V |
Multiple Rate Discharge | 25°C, 3C; ≥90% Of 1C Discharge Capacity |
High and Low Temperature Discharge | -20°C, 1C; Capacity Retention Rate ≥80 % |
55°C, 1C; Capacity Retention Rate ≥90 % | |
Cell Weight (With Insulating Film) | 415±10 g |

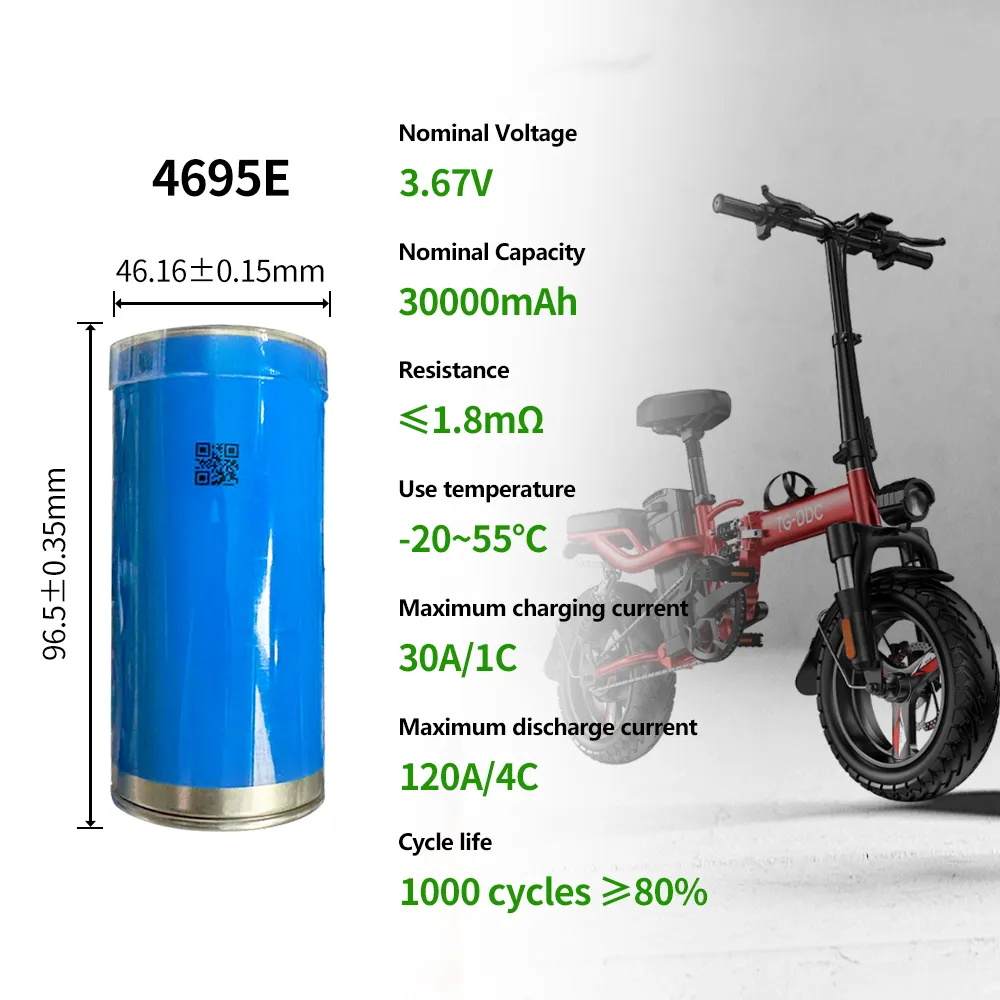

Cell Dimension | （46.16±0.15)×(96.50±0.35)mm |
4695E battery cells are used in various fields due to their versatility and reliability.
Its main applications include:
Toys: Power electronic toys and gadgets to extend play time.
Power Tools: Provide energy for a variety of cordless power tools for efficient operation.
Consumer Electronics: Support a variety of portable electronic devices, ensuring long service life and stable performance.
E-bike Battery Pack: Provides energy for electric bicycles, ensuring long driving distances and stable performance.
These applications prove the adaptability and reliability of 4695E battery cells in different industries, making it a versatile choice for many electronic and transportation equipment.
