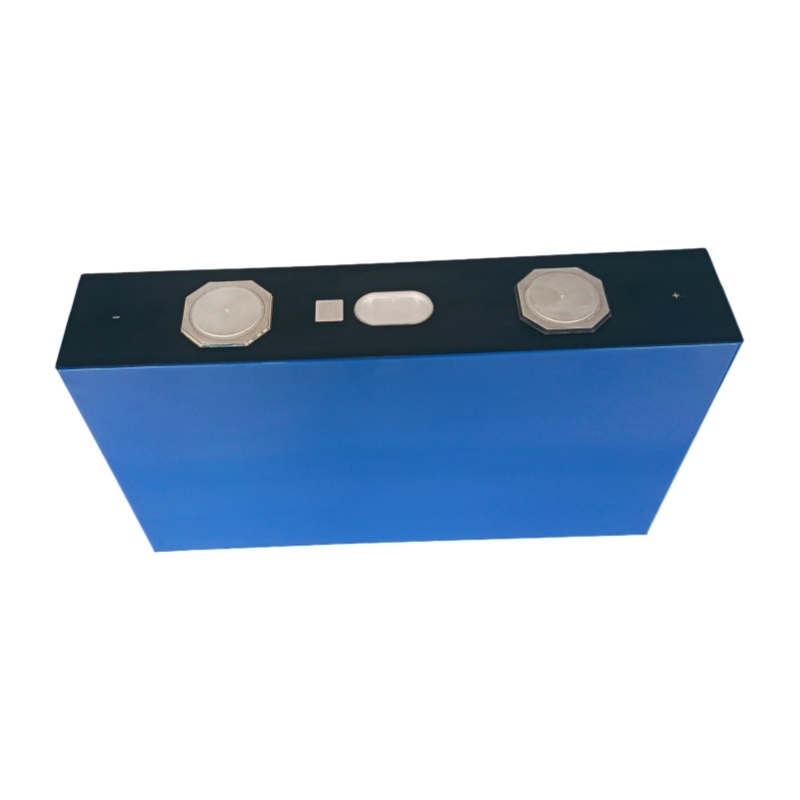

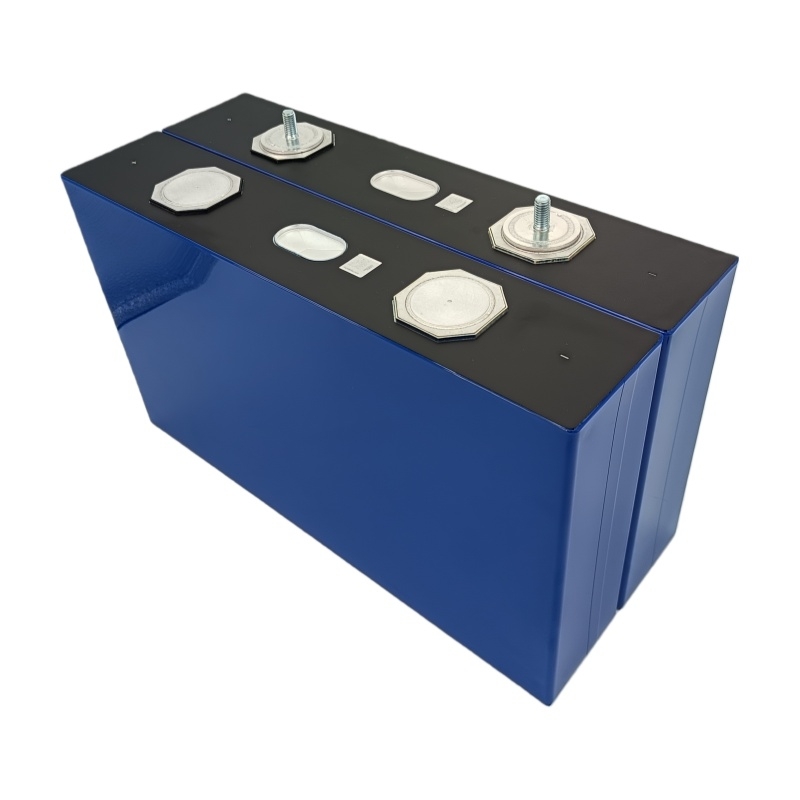

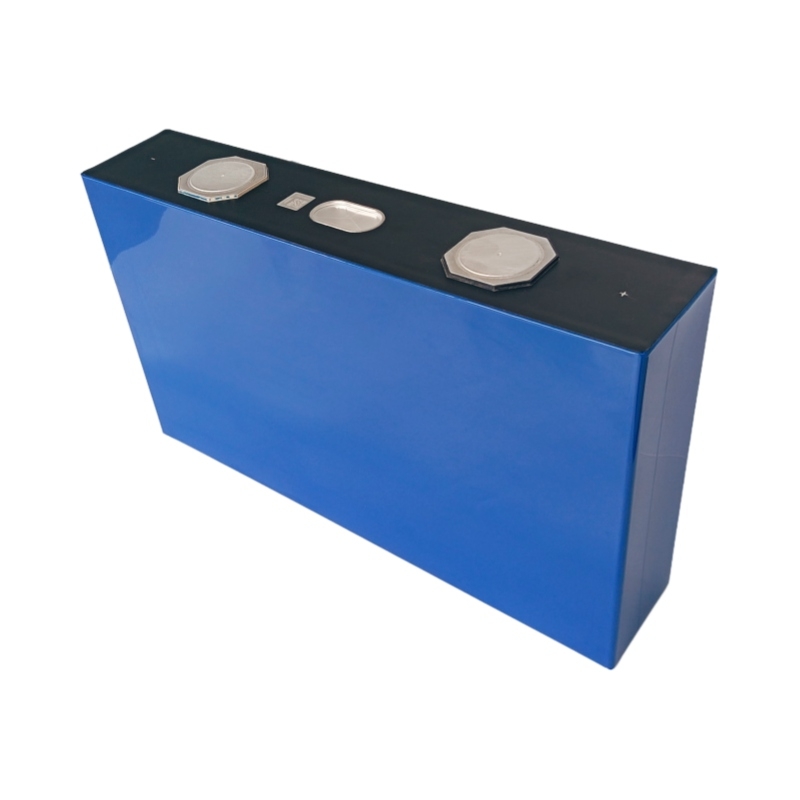

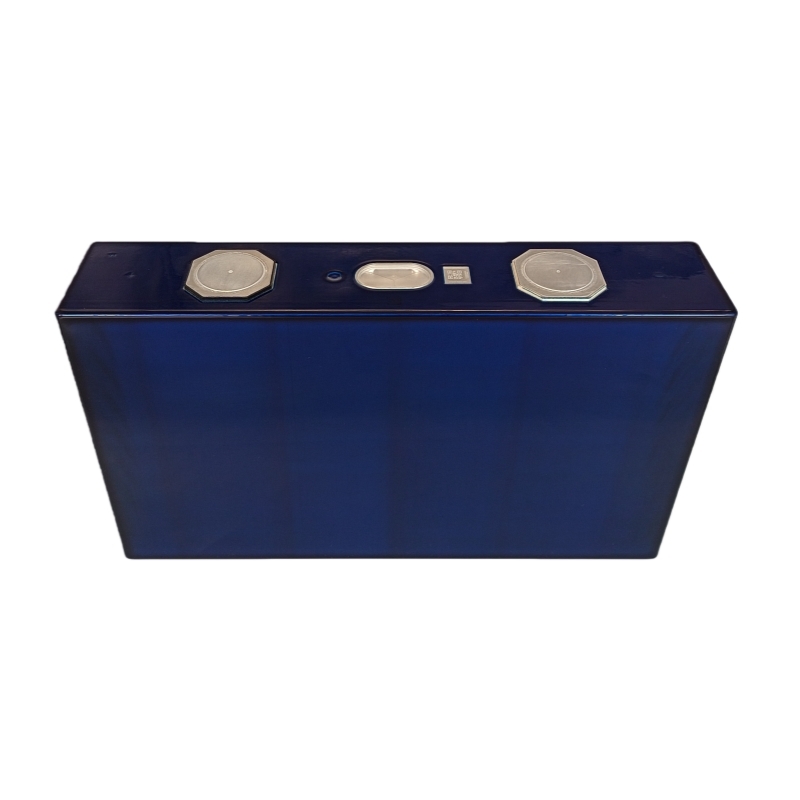

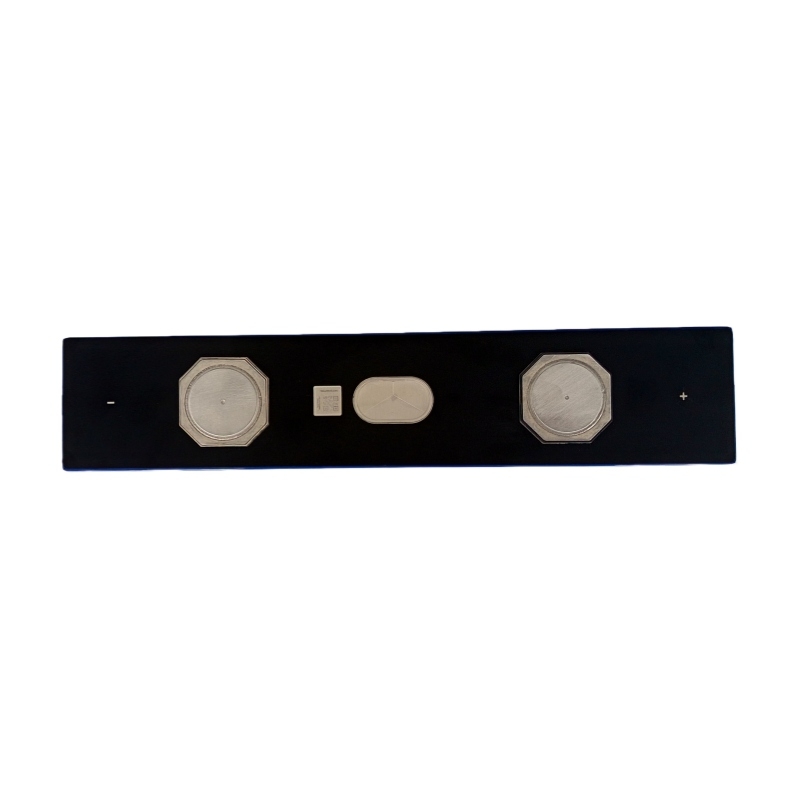

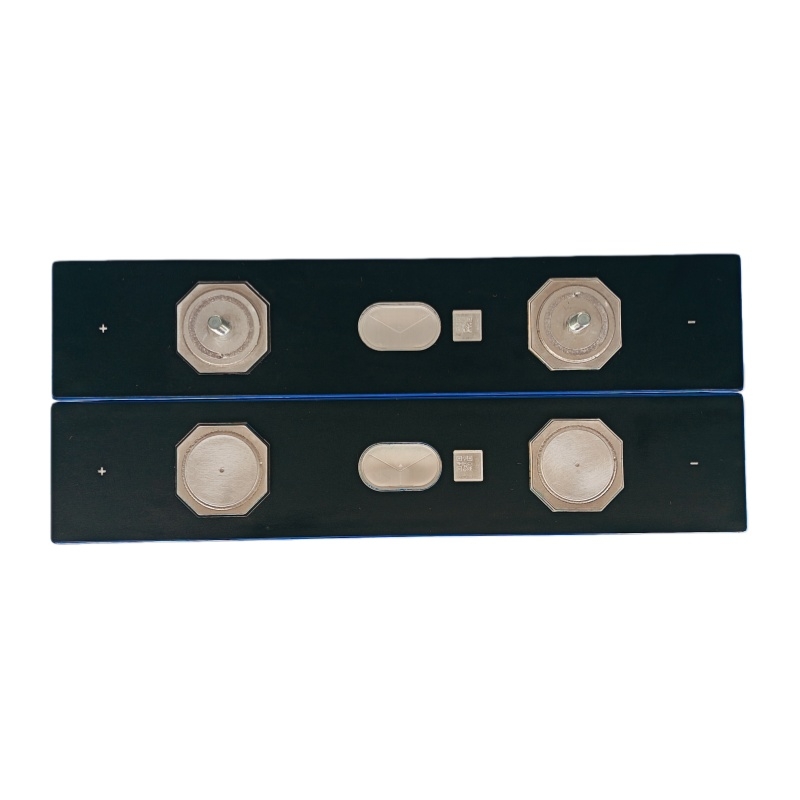

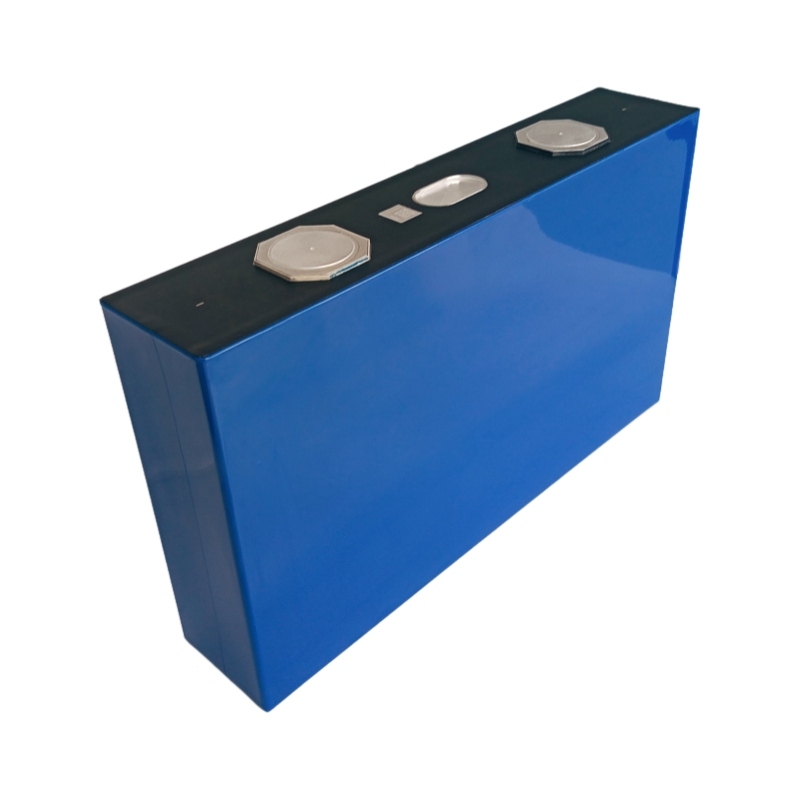

EVE MB56 3.2 V 628Ah LiFePO4 Prismatic Battery Cell For ESS

Contact Now

Product Details:

Place of Origin:	China
Brand Name:	EVE Energy
Certification:
Model Number:	MB56

Payment & Shipping Terms:

Retail Price:	/
Wholesale Price:	Negotiable
Packaging Details:	cartons or plywoods
Payment Terms:	/

Contact Now

Nominal Capacity:	628Ah	Nominal Voltage:	3.2V
Internal Impedence:	0.10mΩ±0.05mΩ	Operating Votage:	/
Dimension:	206.7352.271.7	Battery Weight:	11500g±300g

Product Description

The EVE MB56 628Ah LiFePO4 battery cell is a premium-grade, high-capacity lithium iron phosphate (LiFePO4) energy storage solution engineered for demanding applications. Featuring a nominal voltage of 3.2V and an impressive typical capacity of 628Ah, this prismatic LiFePO4 cell is ideal for Commercial and Industrial ESS, Utility ESS, Telecom ESS, Residential ESS. For more information on EVE MB56, please contact us.

Features

High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.

Stable Performance: Low internal resistance, high discharge rate, and stable discharge.

Long Lifespan: Up to 8000 cycles, with a capacity retention rate of ≥70% under (25°C 0.5C/0.5C) conditions.

High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.

Environmentally Friendly: Certified by environmental management systems.

Customization: Tailored to customer requirements.

Specifications

Items	Specifications	Remarks
Nominal Capacity	628Ah	0.5P / 0.5P, 25℃ ± 2℃, 2.5V ~ 3.65V Fresh cell
Nominal Energy	2009.6Wh	0.5P / 0.5P, 25℃ ± 2℃, 2.5V ~ 3.65V Fresh cell
Nominal Voltage	3.2V	/
End-of-charge Voltage (Umax)	3.65V	/
End-of-discharge Voltage (Umin)	2.5V (T >0℃) 2.0V (T ≤0℃)	/
Cycle Life	8000 cycles, 70% SOH	25℃ Cycle
Standard Charging Power	0.5P	25℃ ± 2℃
Max. Continuous Charging Power	0.5P	25℃ ± 2℃
Standard Discharging Power	0.5P	25℃ ± 2℃
Max. Continuous Discharging Power	0.5P	25℃ ± 2℃
Initial Internal Resistance	0.10mΩ ± 0.05mΩ	AC, 1 kHz, Delivery SOC, Fresh cell
Weight	11500g ± 300g	/
Dimensions (With insulation film)	Height1 207.2mm ±0.5mm	With Terminal
	Height2 205.1mm ±0.5mm	Without Terminal
	Length 352.3mm ±0.5mm	/
	Thickness 71.7mm ±0.5mm	(300 kgf ±20 kgf compression force, Delivery SOC)
	Center distance between the poles 180.0mm ±0.3mm	/
Charging Temperature	0℃ ~ 60℃	/
Discharging Temperature	-30℃ ~ 60℃	/
Storage Temperature 1 year	0℃ ~ 35℃	Delivery SOC status
Storage Temperature 1 month	-20℃ ~ 45℃	Delivery SOC status
Self-discharge First Month	≤3.5% / M	Delivery SOC status, 25°C ±2°C storage
Self-discharge After First Month	≤3.0% / M	Delivery SOC status, 25°C ±2°C storage

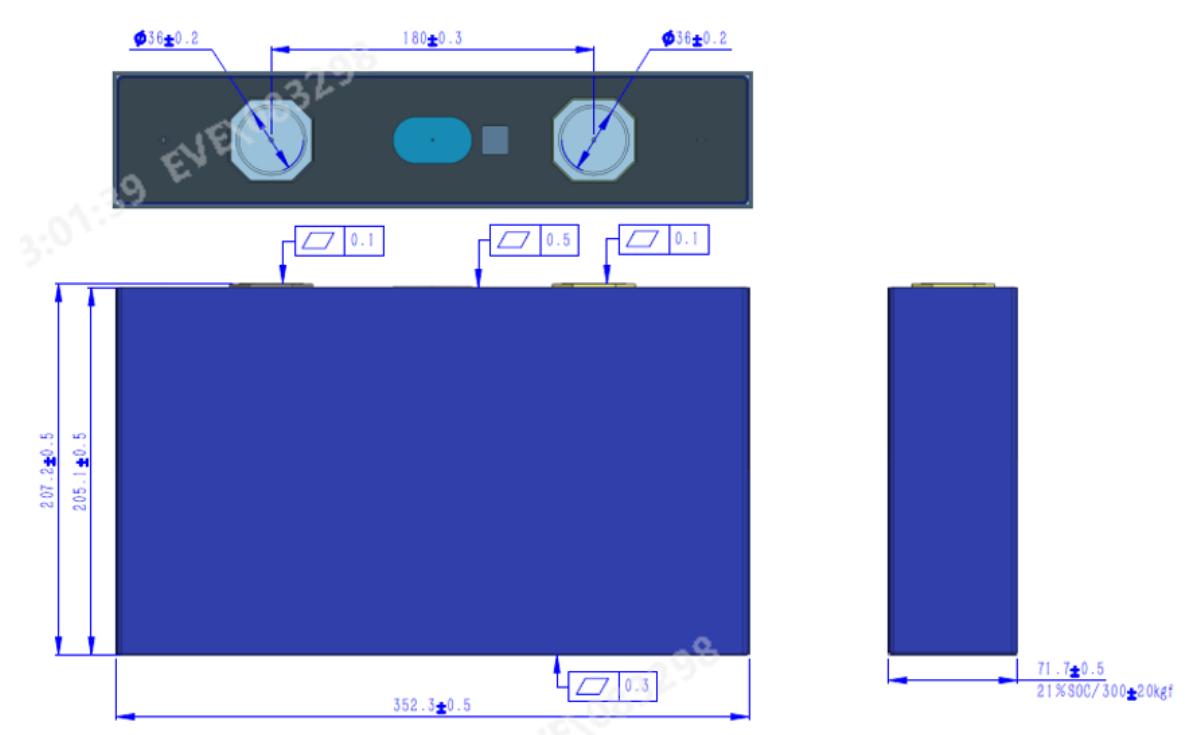

Dimension

dimension of eve mb56

Applications

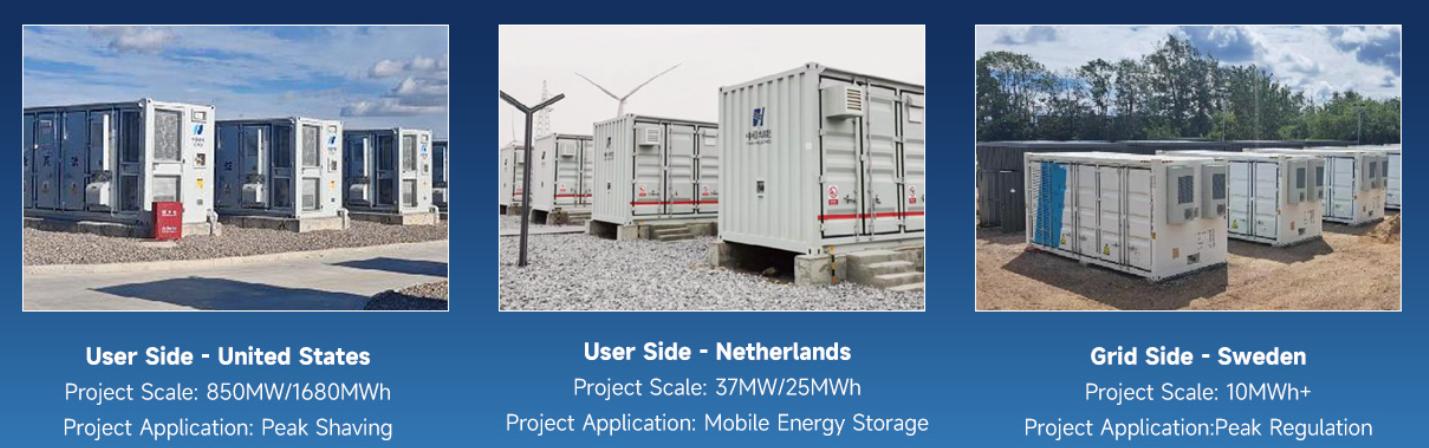

Commercial and Industrial ESS/Utility ESS/Telecom ESS/Residential ESS/Marine Power
