Product Details:
|
| Nominal Capacity: | 67Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.33mΩ≤R≤0.47mΩ | Operating Votage: | 1.8V~3.65V |
| Dimension: | (100.24±0.2)×43.2×(144.9±0.5)mm | Battery Weight: | 1235g±37g |
This 3.2V 67Ah lithium battery cell is an excellent lithium iron phosphate (LiFePO4) battery cell designed for electric vehicles, energy storage systems and industrial power supplies. It has high energy density, long cycle life and excellent safety performance. Its stable output and efficient charging and discharging characteristics can meet the needs of multiple scenarios and are an ideal choice for electric vehicles and energy storage equipment.
High energy density: The capacity of a single battery cell is 67Ah, which supports efficient energy storage and maximizes the endurance performance.
Long cycle life: The cycle life exceeds 4,000 times, and it still maintains excellent performance under 80% DOD conditions, which is suitable for long-term use scenarios.
Excellent safety performance: It uses lithium iron phosphate positive electrode material, has excellent thermal stability, and has passed many international safety tests (such as short circuit, overcharge, acupuncture, etc.).
Fast charging and discharging capability: Supports 2C discharge and 1C fast charging, greatly improving the use efficiency, suitable for applications with high power requirements.
Green and environmental protection: No heavy metal components, in line with RoHS and environmental protection requirements, is an important part of clean energy solutions.
Wide temperature adaptability range: The operating temperature range is -20°C to 55°C, suitable for stable operation in a variety of complex environments.
Item | Specifications |
Battery Type | LFP |
Combination Mode | IFP42100140A-67Ah |
Nominal Capacity | 67Ah |
Nominal Voltage | 3.2V |
Charge Voltage Range | 2.0 V～3.65V; T>0℃ |
Discharge Voltage Range | 1.8V~3.65V; T≤0℃ |
Weight | 1235g±37g |
Weight Energy Density | 175Wh/kg; 0.33C |
Volume Energy Density | 350Wh/L; 0.33C |
ACR | 0.33mΩ≤R≤0.47mΩ; Fresh cell (17%±3%SOC) |
DCR | 1mΩ≤R≤2mΩ; 50%SOC@3C30S, 25±2C |
High Temperature Cycle Life | 1000 cycles |
Room Temperature Cycle Life | 2500 cycles |
Calendar Life | 10 years; 25±2℃, 50%SOC,80%EOL |

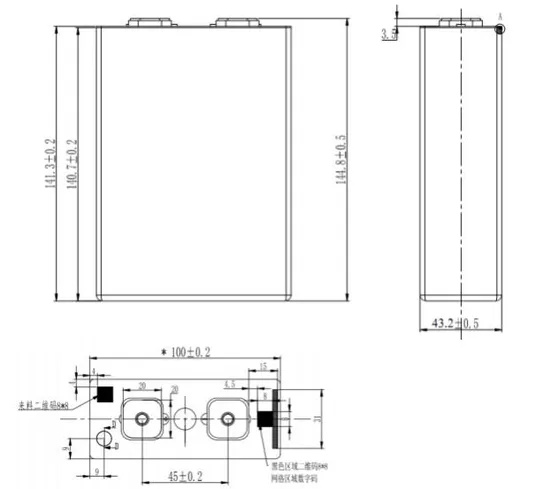

Dimension | (100.24±0.2)×43.2×(144.9±0.5)mm |
Electric scooter/Golf cart: As a power battery unit, it provides stable, high-energy output and is suitable for electric cars, logistics vehicles, and electric buses.
Energy storage system (ESS): Used in home, commercial, and industrial energy storage projects, combined with photovoltaic systems to achieve green energy management.
Backup power supply: Provide reliable backup power support in scenarios such as medical equipment and communication base stations.
Industrial equipment: Suitable for industrial power equipment with high power requirements, such as forklifts, power tools, etc.
