Product Details:
|
| Nominal Capacity: | 52Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |
Parameter | Specification | Condition |
Capacity | 52Ah | |
Nominal Voltage | 3.2V | 1C |
3.1V | 0.33C | |
Charge and Discharge Voltage Range | 2.0V～3.65V | >0℃ |
1.8V～3.65V | ≤0℃ | |
Weight | 966g±30g | Does not contain the outer membrane |
Mass Energy Density | 175Wh/kg | 0.33C |
Volume Energy Density | 350Wh/L | 0.33C |
AC-Internal Resistance | 0.5mΩ≤R≤0.8mΩ | 25℃±2℃ |
DC-Internal Resistance | ≤2.5mΩ | 50%SOC, 25℃±2℃ |
Charging Temperature Range | -20℃～55℃ | |
Discharging Temperature Range | -30℃～60℃ | Maximum cell temperature ≤60℃ |
Optimum Operating Temperature | 10℃～35℃ | |
Conventional Charging(Slow) | 26A | 10℃≤T<45℃ |
Step Charging (Fast) | 1C | 20℃≤T<45℃ |
Cycle Life | 2000 | 80%DOD, 25℃, 1C |
Calendar Life | 8 Years | 80%DOD, 25℃, 50%SOC |
Thickness | (28.2±0.5)mm | 5%SOC, 10kgf |
Dimension | 148(W)*28.2(T)*118.6(H)mm |

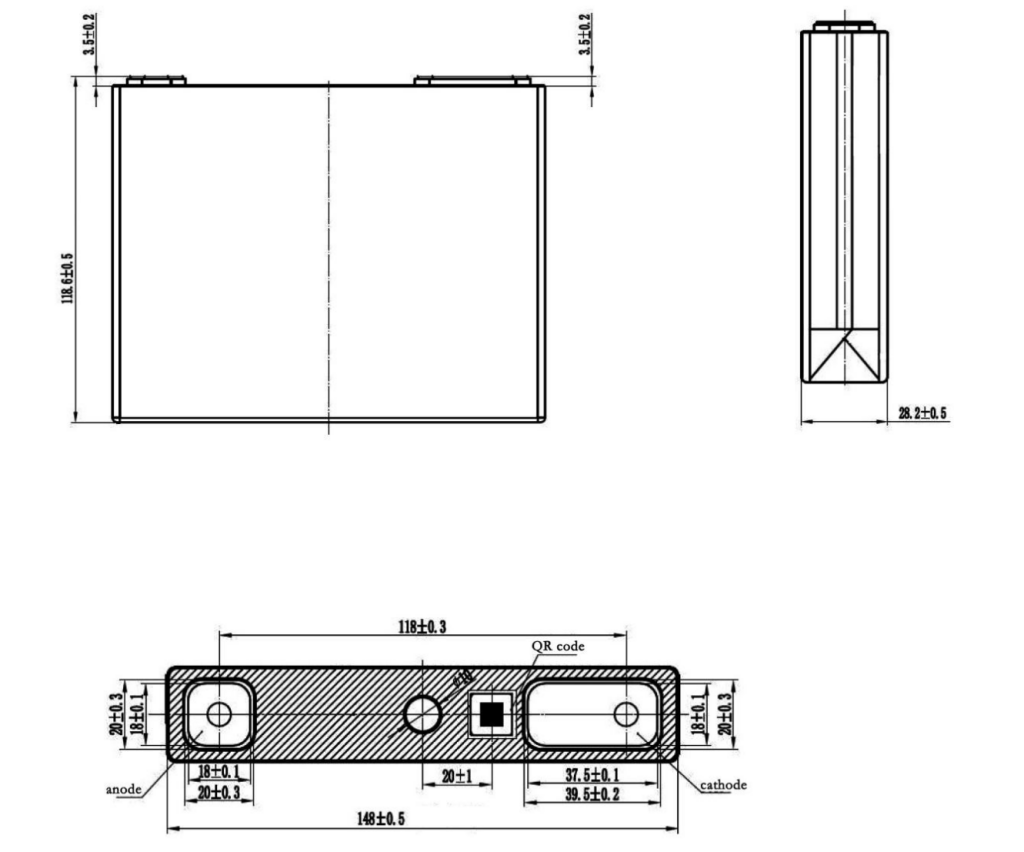

Dimension:

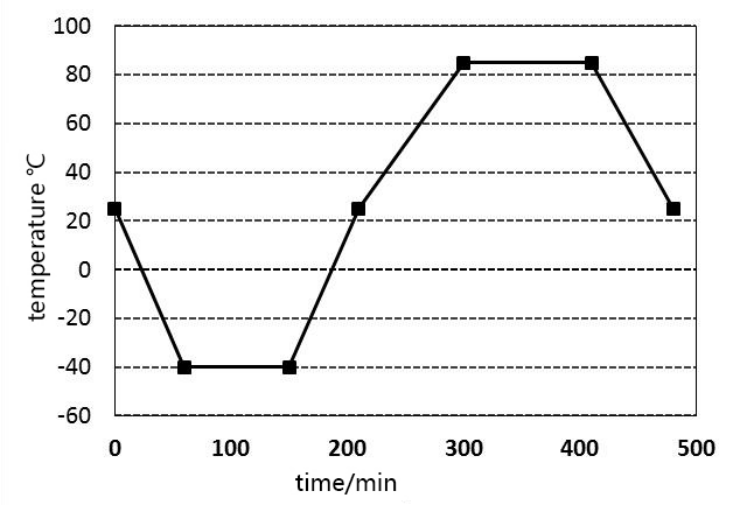

Temperature cycle curve vs time:

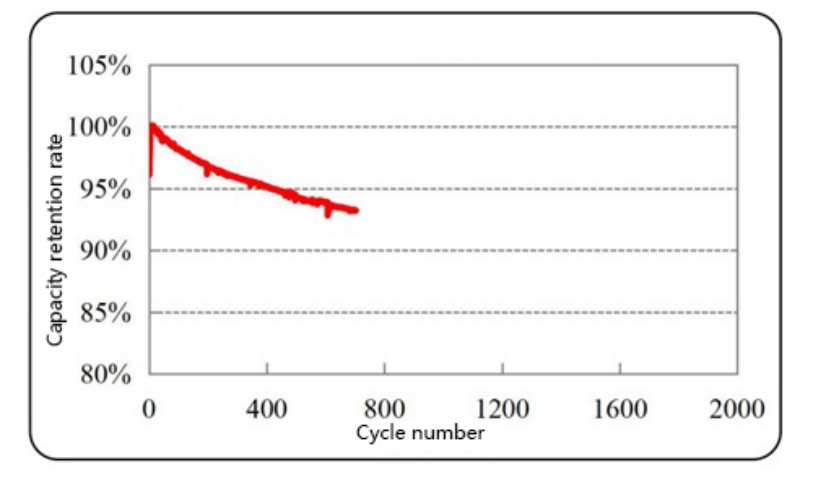

52Ah 25℃ Step cycle curve:
Details:

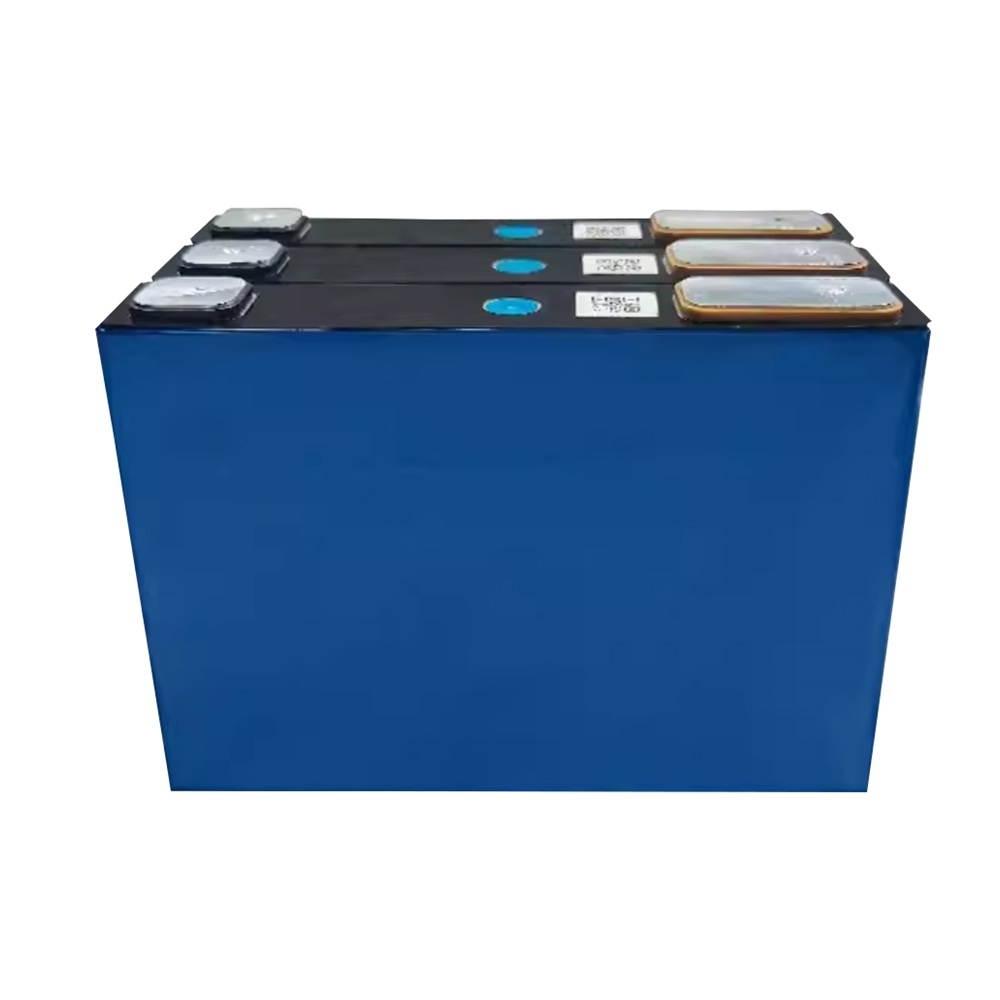

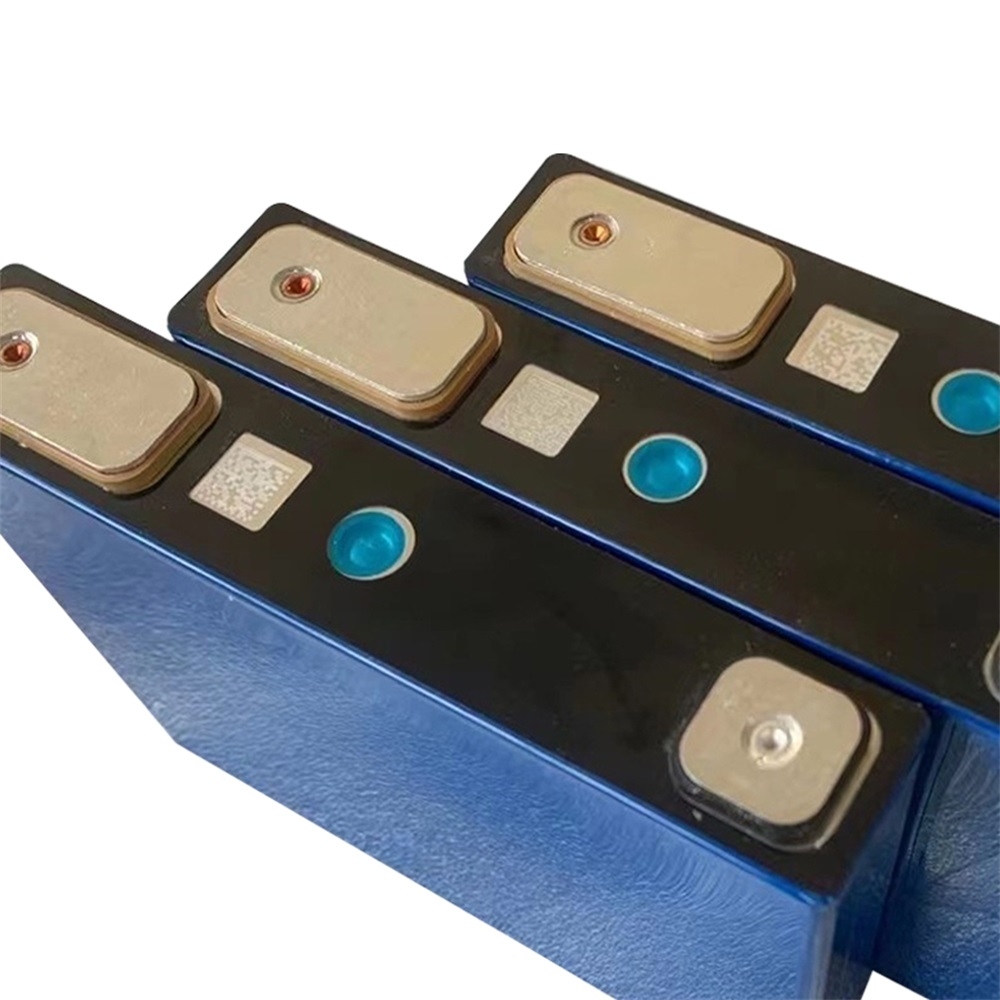

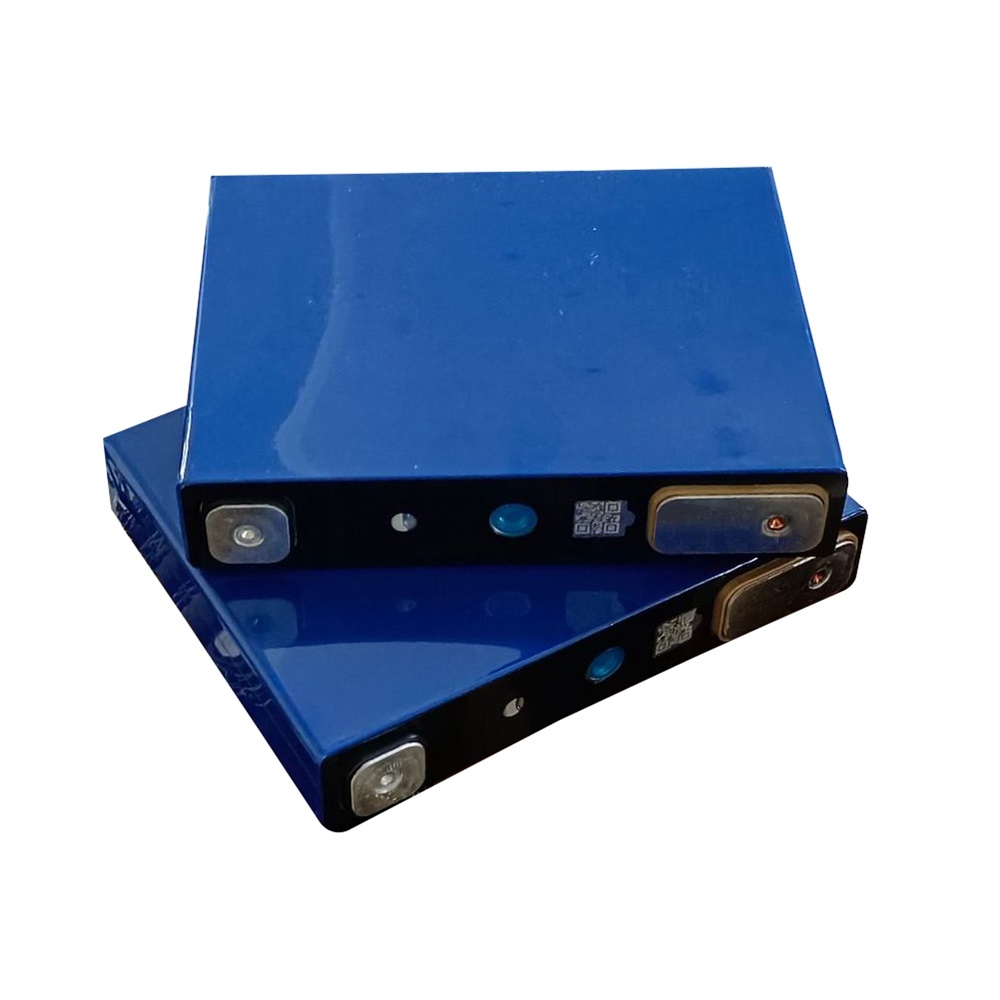

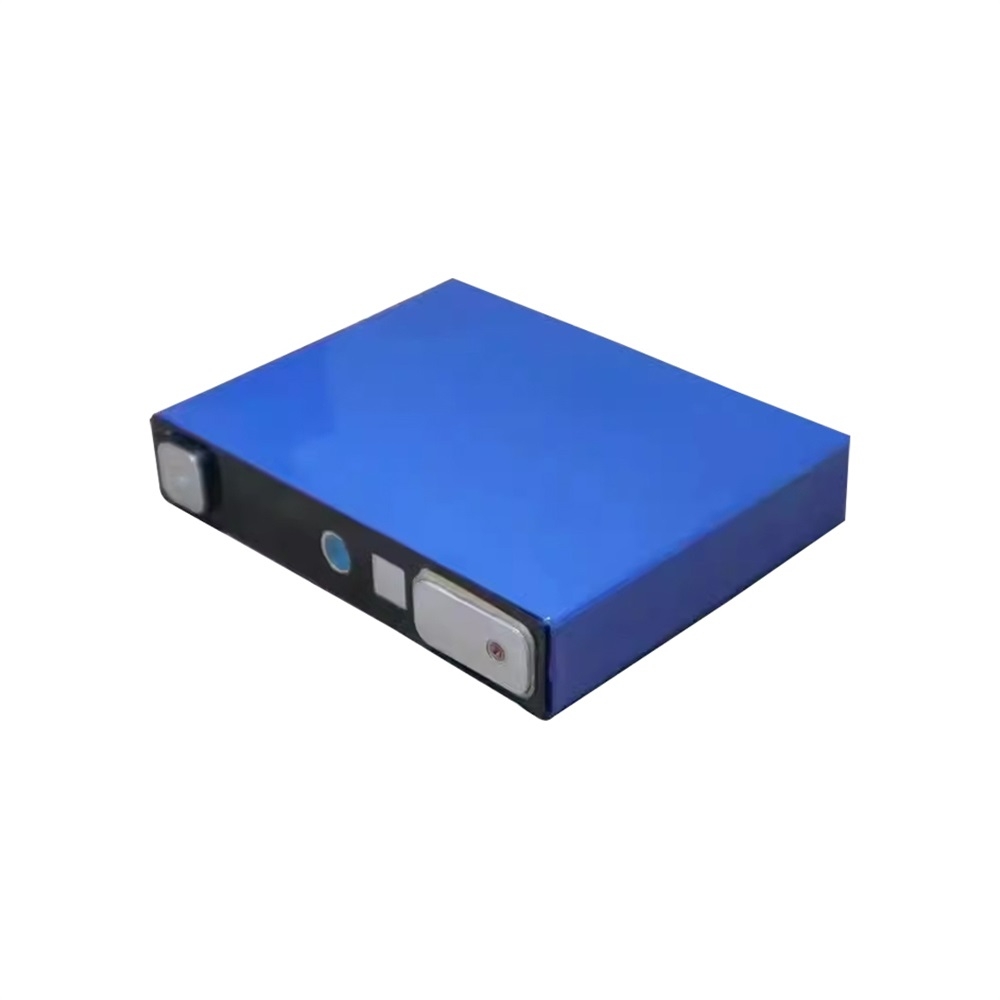

Gotion 3.2V 52Ah LiFePO4 battery mainly used in the field of pure electric vehicles, it is a power battery with high energy density and consumption resistance.
