Product Details:
|
| Nominal Capacity: | 2600mAh | Nominal Voltage: | 3.65V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | 4.20V | |
| Dimension: | (18.3±0.2)×(64.9±0.3)mm | Battery Weight: | 47g |

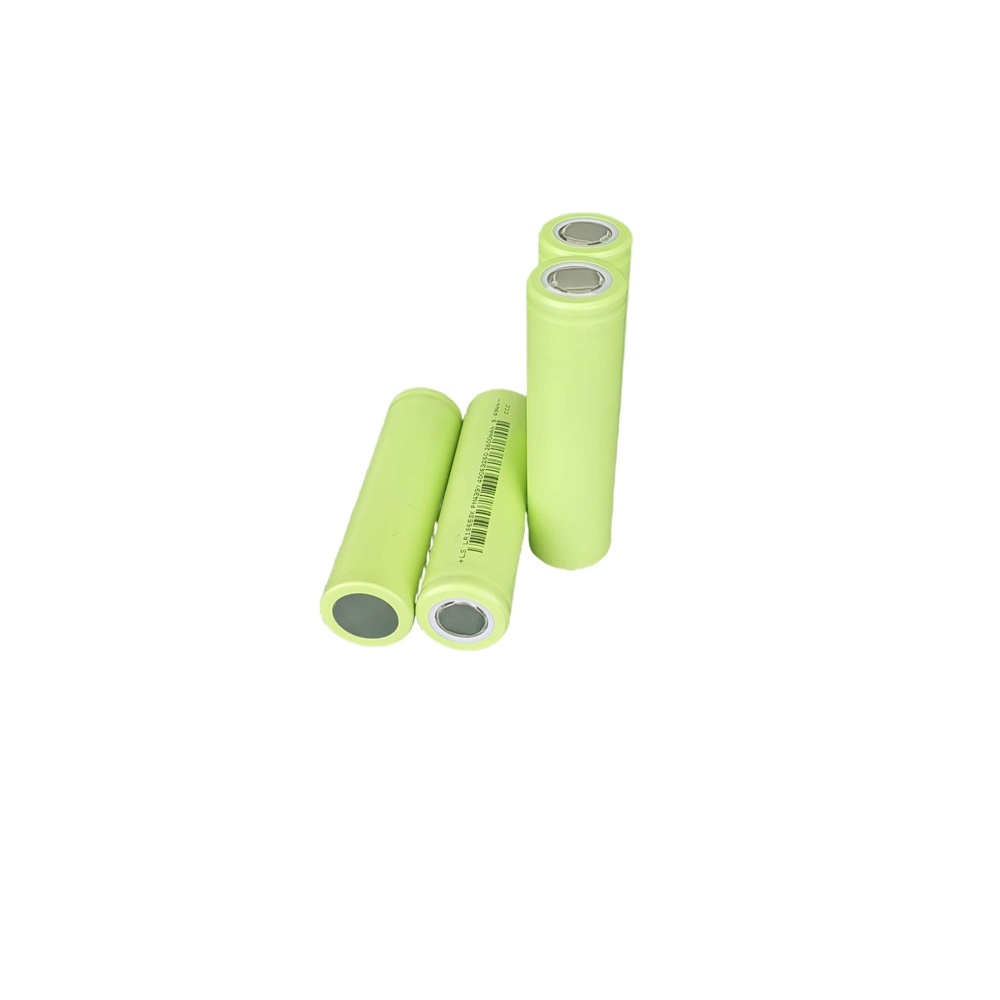

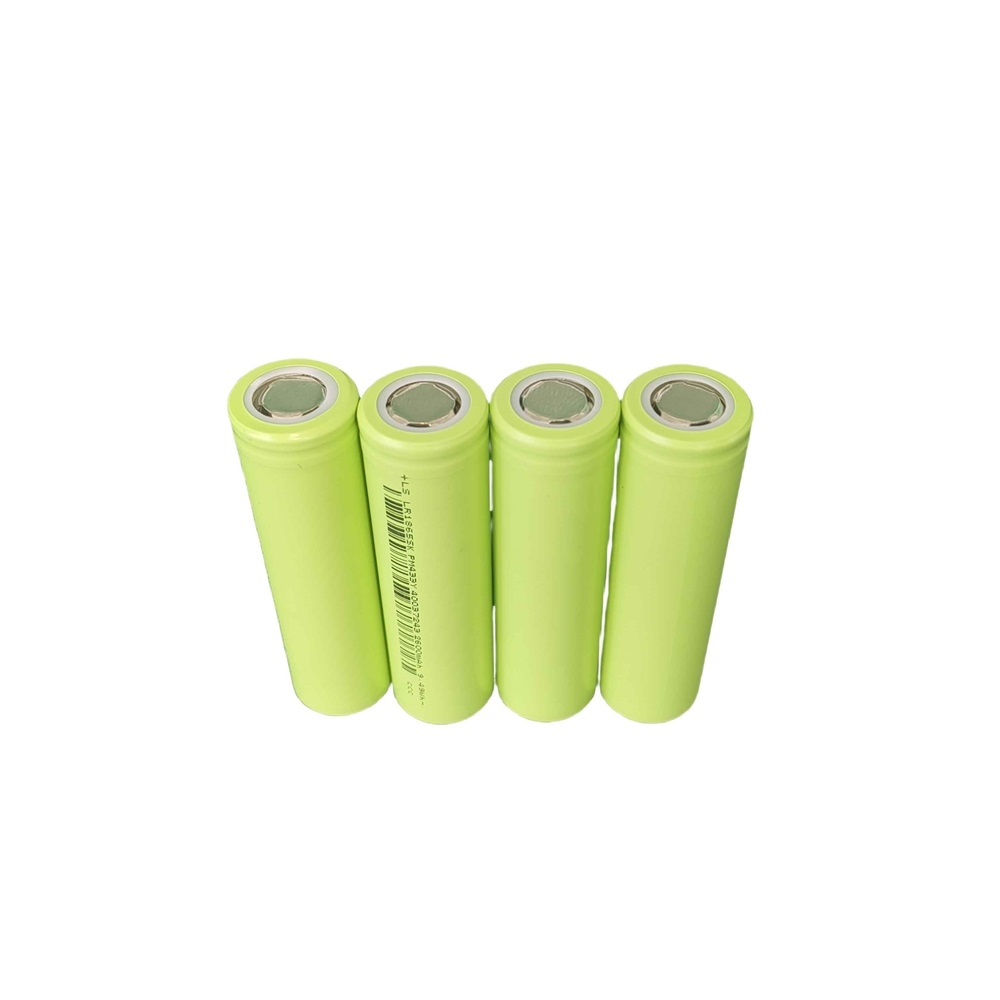

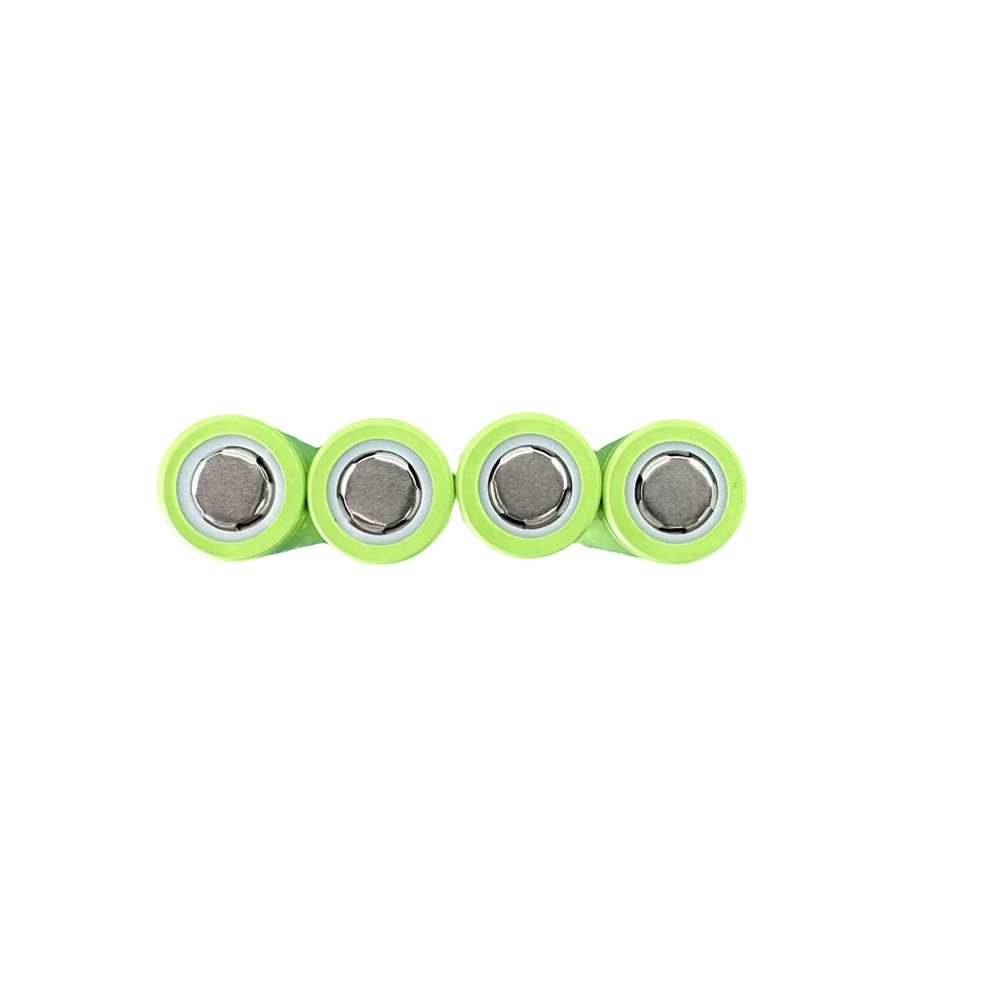

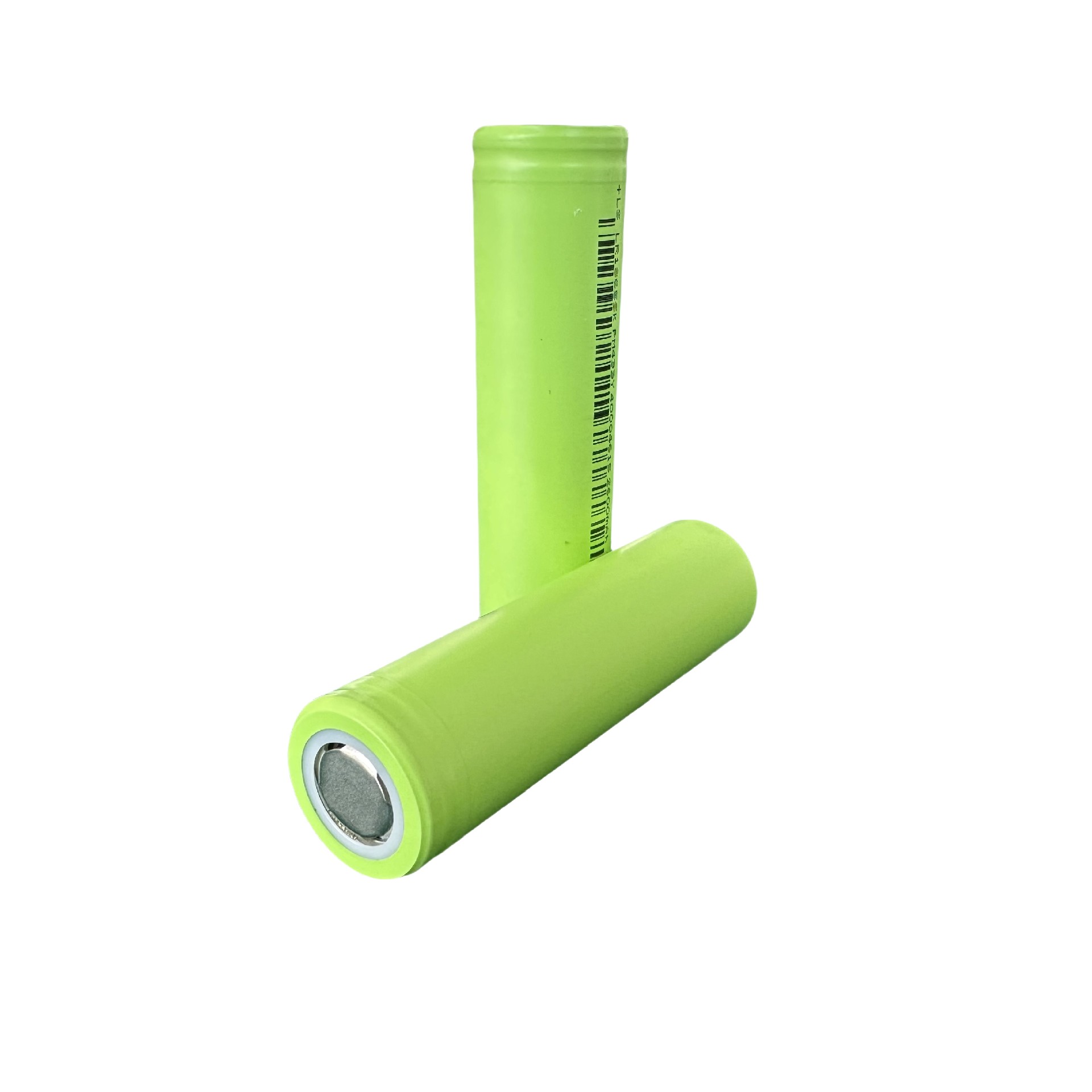

The LiShen LR1865SK 3.65V 2600mAh NMC 18650 Ternary Lithium Battery Cell features high quick charge, high energy density, high rate, high low-temperature performance advantage, extensive application and high safety. It is applied in electric four-wheeler, sweeping robot, portable energy storage and etc.
1. High quick charge
2. High energy density
3. High rate
4. High-low temperature performance advantage
5. High safety
6. Extensive application
Item | Specifications |
Charge Voltage | 4.20V |
Nominal Voltage | 3.65V@0.2C |
Maximum Continues Charge Current (Not for cycle life) | 1C(2600mA),25℃ |
Maximum Continues Charge Current | 0℃≤T≤5℃ 0.1C(260mA) 5℃<T≤15℃ 0.2C(520mA) 15℃<T≤45℃ 0.5C(1300mA) |
Maximum Continuous Discharge Current(Not for Cycle life) | 3.0C(7800mA),25℃
|
Operating Environmental Temperature | Charge 0℃～45℃ Discharge -20℃～60℃ |
Storage Temperature※ (Shipping state,Recovery capacity≥80%) | 1 month -20℃～60℃ 3 months -20℃～45℃ 12 months -20℃～25℃ |
Weight of Bare Cell | 47g(Max) |
Nominal capacity | 2600mAh(0.2C) |

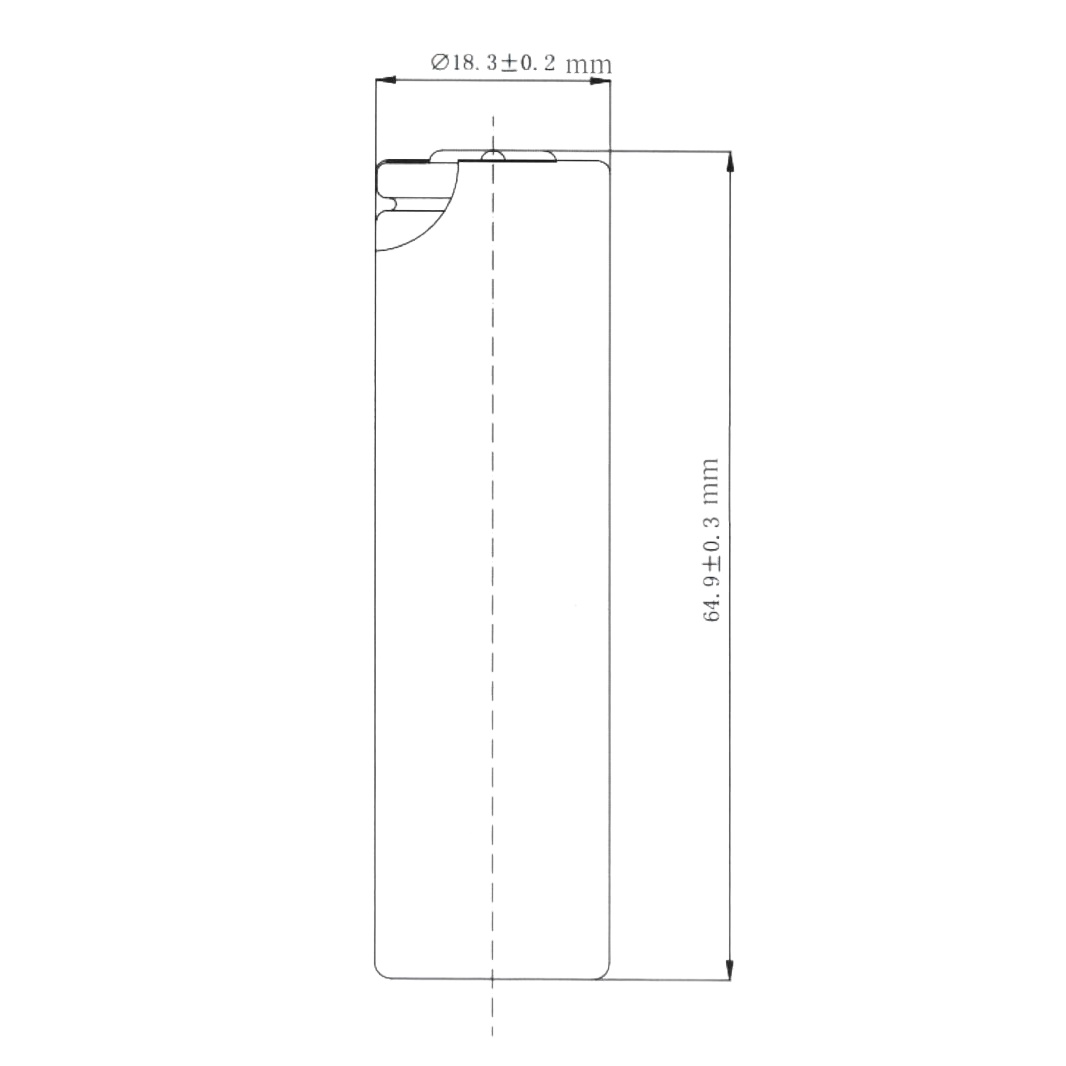

Dimension | Diameter 18.3mm±0.2mm Height 64.9mm±0.3mm |
It is applied in electric four-wheeler, electric two-wheeler, power tool, vacuum cleaner, sweeping robot, portable energy storage, garden tool and quick charge power bank.
