Lishen LR2170LA 3.6v 4000mAh Lithium Ternary NMC Cylindrical Battery

Product Details:
Place of Origin: China
Brand Name: LiShen
Certification:
Model Number: LR2170LA
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: /
Nominal Capacity: 4000mAh Nominal Voltage: 3.6V
Internal Impedence: / Operating Votage: 4.20V
Dimension: (21.2±0.2)×(70.5±0.2)mm Battery Weight: 67g

Product Description

The LiShen LR2170LA 3.6V 4000mAh Cylindrical Lithium Ternary NMC Battery features high quick charge, high energy density, high rate, high low-temperature performance advantage, extensive application and high safety. It is applied in electric four-wheeler, sweeping robot, portable energy storage and etc.


Product Feature


1. High quick charge

2. High energy density

3. High rate

4. High-low temperature performance advantage

5. High safety

6. Extensive application


Specification


Item

Specifications

Charge Voltage

4.20V

Nominal Voltage

3.60V@0.2C

Maximum Continuous

Charge Current

0℃≤T≤15℃ 3000mA

                 15℃<T≤50℃ 6A

Maximum Continuous

Discharge Current

45A(80℃ cut-off)

Operating Environmental

 Temperature

Charge 0℃~45℃

Discharge-20℃~60℃

Storage Temperature and Humidity

 (For shipping state)

1 month-20℃~60℃(≤65%RH)

3 months -20℃~45°℃(≤65%RH)

12 months-20℃~25℃(≤65%RH)

Weight of Bare Cell

≤67g

Nominal capacity

4000mAh(0.2C)

Cycle Life



300 cycle≥60% of first Capacity

(25℃,6A charge/35A discharge,

4.20V-2.5V,80℃ cut off)

Dimension

Diameter 21.2±0.2mm

Height 70.5±0.2mm

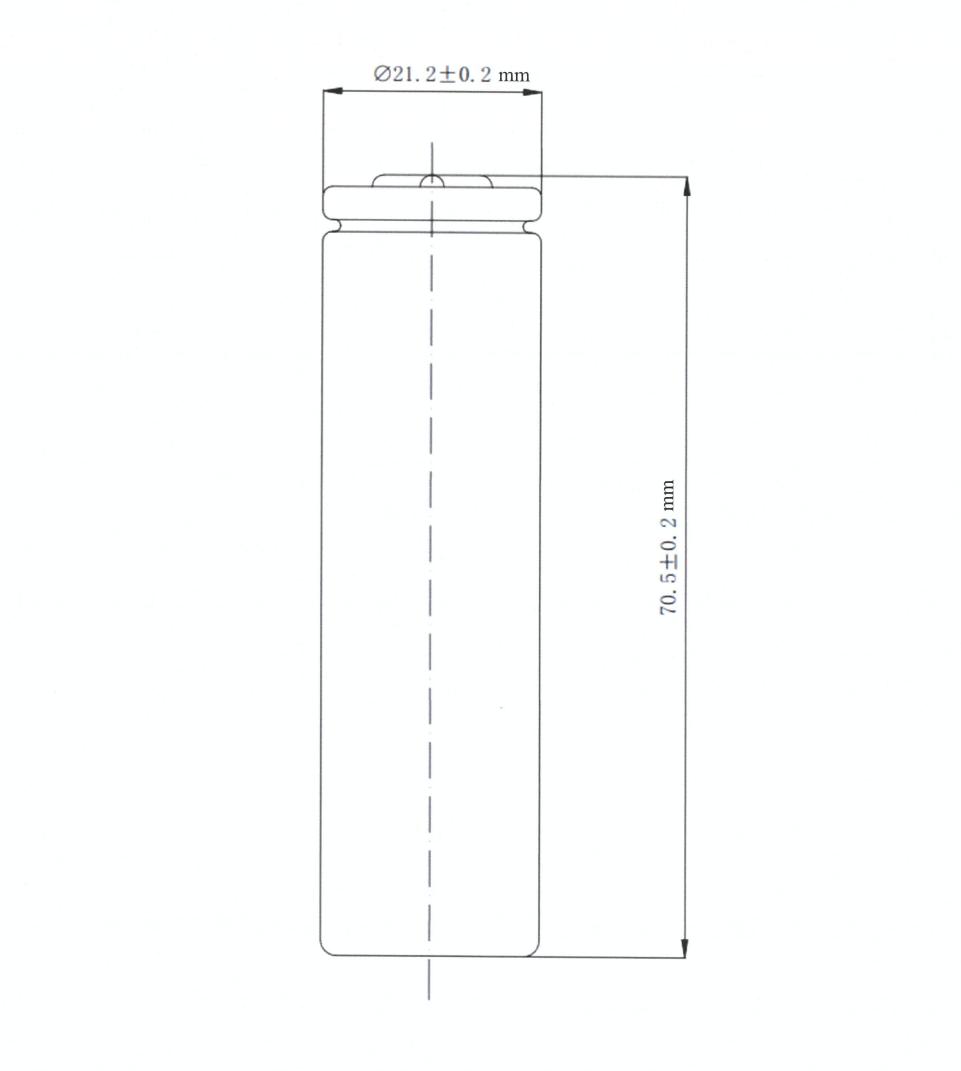

Dimension


LR2170LA DimensionLR2170LA deatils


Application

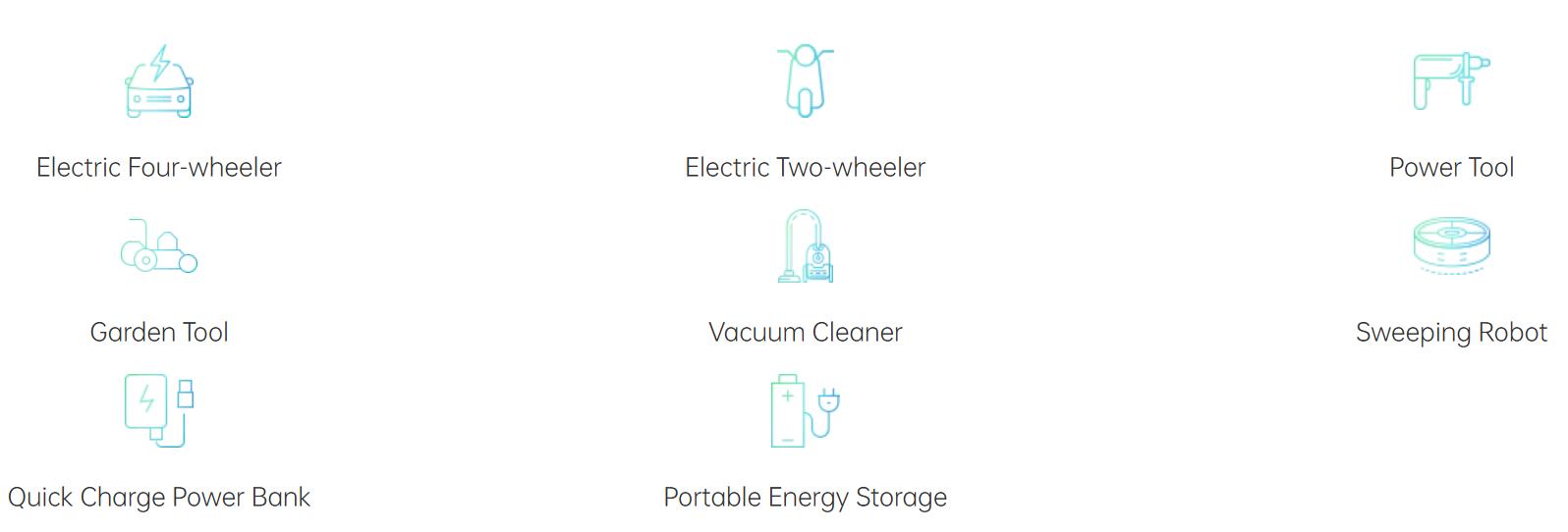

It is applied in electric four-wheeler, electric two-wheeler, power tool, vacuum cleaner, sweeping robot, portable energy storage, garden tool and quick charge power bank.


3.6V 4Ah application



3.6v 4ah
