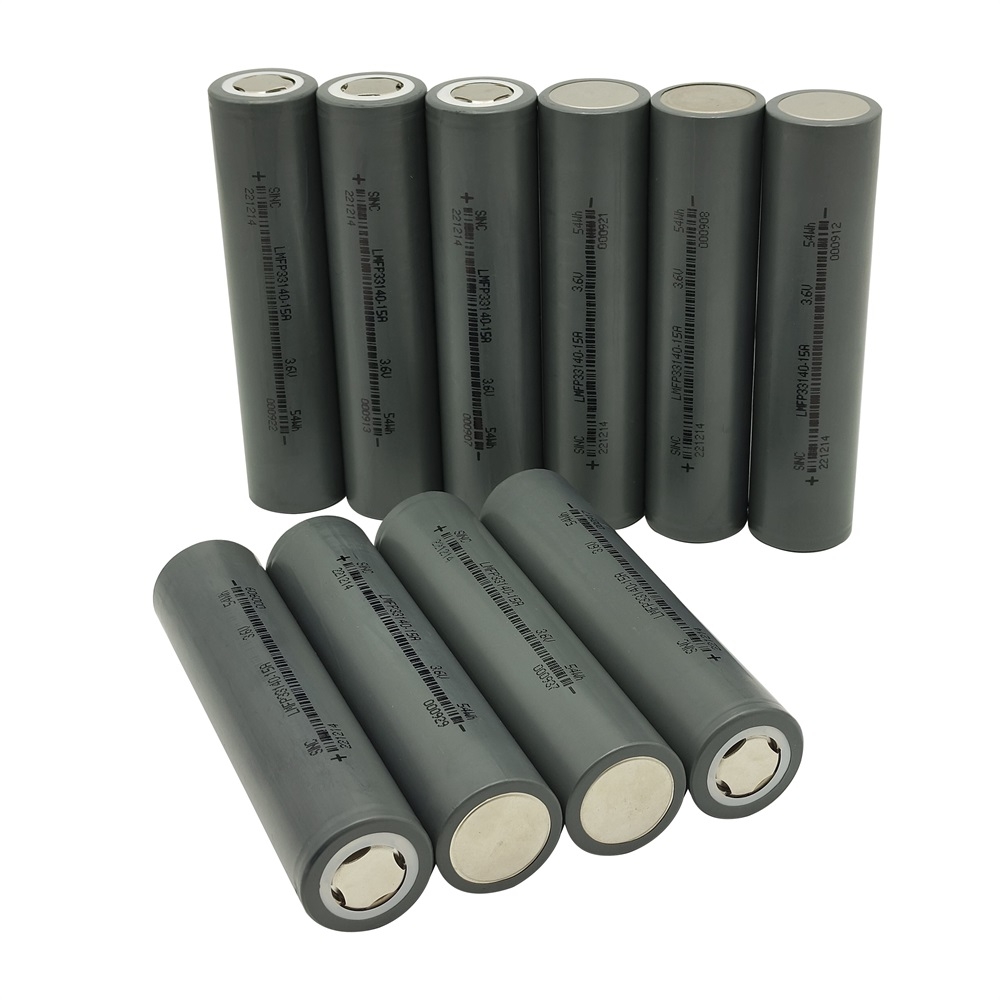

33140-15A 3.6V 15Ah lithium LMFP battery cell

Product Details:
Place of Origin:
Brand Name:
Certification:
Model Number: 33140-15A 3.6V
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms:
Nominal Capacity: 15000mAh(0.5C) Nominal Voltage: 3.6V
Internal Impedence: ≤3mΩ (AC Impedance, 1000 Hz) Operating Votage:
Dimension: Height: 140.5 mm Max Diameter: 33.3mm Max Battery Weight: ≤ 305g

Product Description

Features of LMFP Battery 33140 3.6V 15Ah


1. High security, close to LiFePO4 lithium battery

2. Low-temperature resistance, better than traditional NMC battery, can support a 75% discharging rate at minus 20℃

3. High cycle life, with more than 2000 times cycle life, better than traditional NMC battery

4. Adopting full tab technology, with low internal resistance, which is suitable for fast charging

5. High voltage platform, same voltage platform as NMC battery



Specification


ITEM

SPECIFICATION

Normal capacity

15000mAh(0.5C)

Minimum capacity

14500mAh(0.5C)

Normal voltage

3.6V

Charge voltage

4.2V

Discharge end voltage

2.5V

Standard charge current

0.5C(7500mA)

Standard discharge current

0.5C(7500mA)

Max charge current

1C (10℃-45℃), 0.2C (0℃-10℃)

Max continuous discharge current

Continuous 3C, (Pulse 6C, 10S, T>0℃)

1C (-10℃<T≤0℃)

0.5C (-20℃<T≤-10℃)

Surface charge and discharge

batteries maximum temperature

Charge: 0°C ~ 45°C

Discharge: -20°C ~ 55°C

Recommended Storage temperature

15°C ~ 35°C

Internal resistance

≤3mΩ (AC Impedance, 1000 Hz)

Cell dimension

Height: 140.5 mm Max

Diameter: 33.3mm Max

Weight

≤ 305g

Cycle life

≥2000cycle, 70%DOD




Details


curve
