Product Details:
|
| Nominal Capacity: | 5000mAh | Nominal Voltage: | 3.6V |
|---|---|---|---|
| Internal Impedence: | 14±3mΩ | Operating Votage: | 2.50V~4.2V |
| Dimension: | (71.20±0.20)×(21.65±0.15)mm | Battery Weight: | 69±2g |
Svolt 3.6 V 5000mAh NMC Ternary Lithium Battery 21700 Cylindrical Cells features high capacity, lightweight, low internal resistance and etc.
High capacity and stable discharge voltage.
Longer working time and high performance.
Lightweight and compact size.
Good discharge performance and low internal resistance.
No memory effect
Good discharge capability under high loads and high temperature resistance.
Environmentally friendly and non-polluting.
100% genuine original lithium-ion rechargeable battery.
Built-in explosion-proof protection and circuit protection.
With an explosion-proof valve: In the event of high temperature, short circuit, or other abnormal conditions, internal pressure will rupture the explosion-proof valve to prevent fires and explosions.
Item | Specification |
Nominal Capacity | 5000 mAh@0.2C |
Nominal Voltage | 3.60V |
Charge voltage | 4.20V |
Discharge cut-off voltage | 2.50V |
Max charge current | 1C（4900mA; not for cycle life) |
Max discharge current | 3C（14700mA; not for cycle life) |
Storage temperature | 1 year: -20~25℃ 3 months:-20~45℃ 1 month: -20~60℃ |
Humidity range | 0~60% RH (non-condensing) |
Operating Temperature | Charge: 0~45℃ Discharge: -20~60℃ |
Internal resistance | 14±3mΩ (AC Impedance, 1000 Hz) |
Weight | 69±2g |

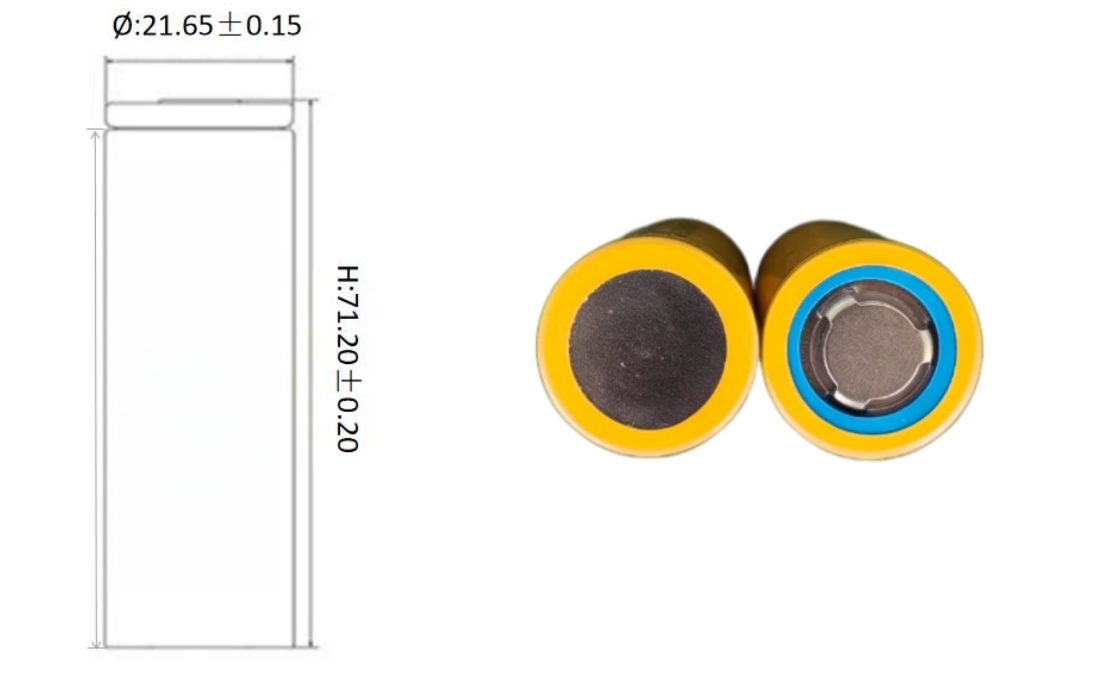

Cell Dimension | Height: 71.20±0.20mm Diameter: 21.65±0.15mm |
