Product Details:
|
| Nominal Capacity: | 62.5Ah | Nominal Voltage: | 3.7V |
|---|---|---|---|
| Internal Impedence: | ≤0.50mΩ | Operating Votage: | 2.1-4.2V |
| Dimension: | (148.3±0.3)*(26.72±0.22)*(108.9±0.3)mm | Battery Weight: | 1.030±0.030 Kg |

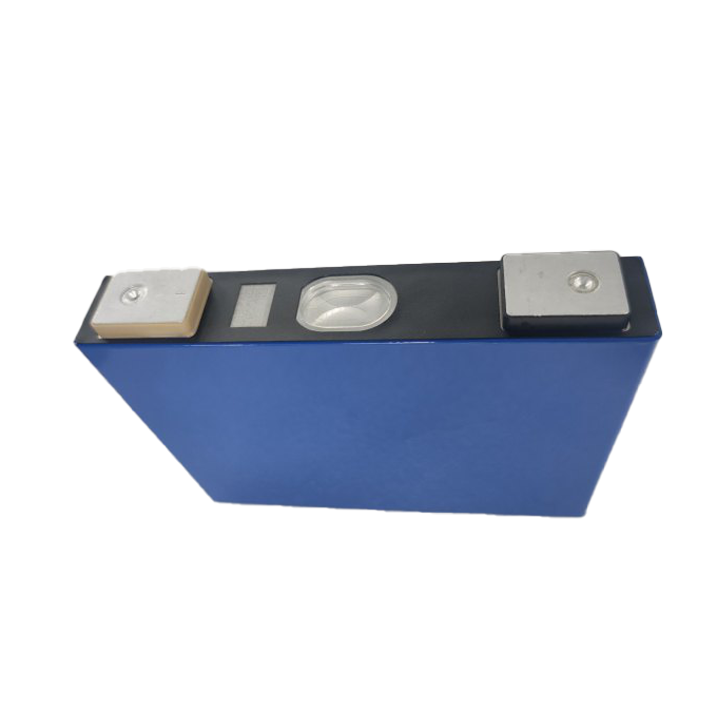

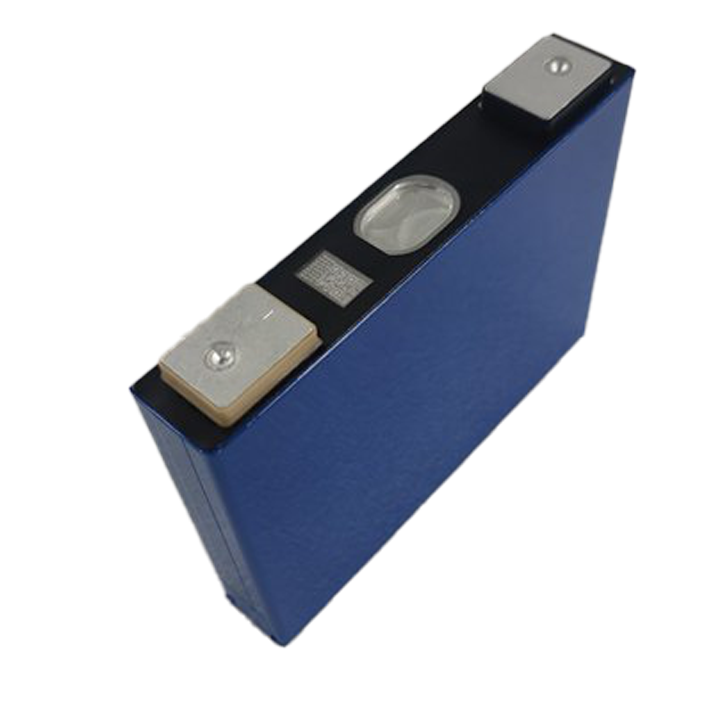

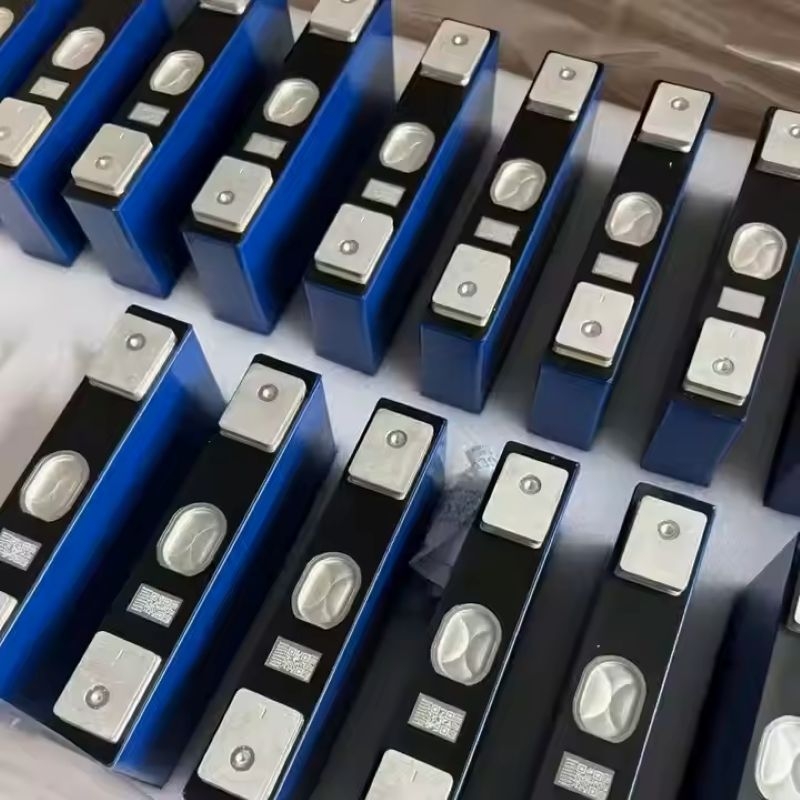

SVOLT 3.7V 62.5Ah Brand New Grade A Prismatic Ternary Lithium NMC Battery Cell For EV, e-bike, motorcycle, etc.
Our batteries are sourced directly from SVOLT, ensuring they are Grade A, brand new, and have the guaranteed capacity.
For more information on SVOLT 3.7V 62.5Ah Ternary Lithium Battery, please contact us.
High discharge rate of 3C
Long cycle life
High energy density
l Good consistency
Low resistance, Better power Performance
Better Thermal Stability (Passed 140℃ hot box)
Item | Specification |
Capacity | ≥62.5Ah(25℃ Discharging current of 62.5A (1C) Discharging cut-off voltage of 2.8V) |
Discharge Energy | ≥226Wh |
Energy Density | ≥219Wh/Kg |
Operating Voltage | 2.8-4.2V(T＞5℃) 2.5-4.2V(-20℃＜T≤5℃) 2.1-4.2V(T≤-20℃) |
Internal Resistance(1KHz) | ≤0.50mΩ;25℃ fresh cell SOC=40%，AC 1KHz |
Average Internal Resistance (1KHz) | 0.40±0.10mΩ;25℃ fresh cell SOC=40%，AC 1KHz |
Voltage of Cell Shipment | 3.677±0.005V;25℃ 48%SOC |
Capacity of Shipment | ≥62.5Ah(25℃ Discharging current of 62.5A (1C) Discharging cut-off voltage of 2.8V) |
Operating Temperature | Charge: -20℃ ~ 55℃ Discharge: -30℃ ~ 55℃ |
Cycle Life | ≥2000 cycles(25℃ 1C/1C 100%DOD) |
Recommended SOC | 10%-95% |
Cell Weight | 1.030±0.030 Kg(The weight of the film is included) |

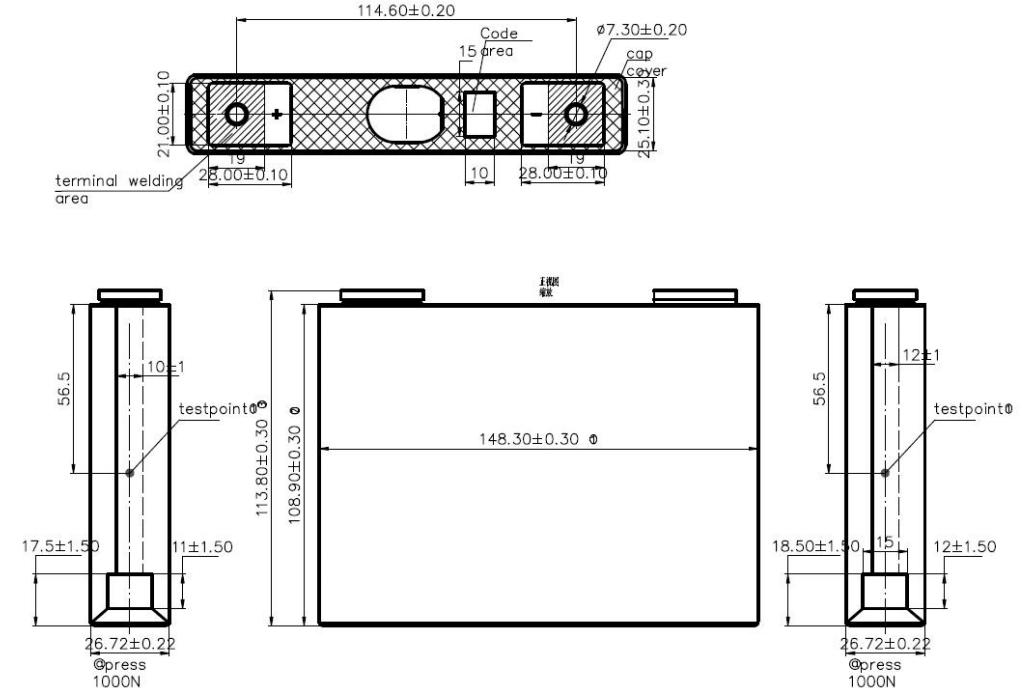

Cell Dimension (mm) | (148.3±0.3)*(26.72±0.22)*(108.9±0.3)mm |
