On board charger charging Time and efficiency

In recent years, the rapid evolution of electric vehicles (EVs) has transformed the automotive industry and redefined the way we think about transportation. As the world shifts towards more sustainable and environmentally-friendly solutions, the demand for efficient charging technologies has become increasingly critical. Among the innovative technologies shaping the EV landscape, on-board chargers (OBCs) have emerged as a pivotal component, playing a crucial role in determining both the charging time and overall efficiency of electric vehicles.


Understanding On Board Charger: The Heart of the Charging Process

An on-board charger is an essential component of an electric vehicle's charging system. Essentially, it serves as the bridge between the power source, typically an electric grid or charging station, and the EV's battery pack. The primary function of an OBC is to convert the alternating current (AC) from the grid into direct current (DC) that is suitable for storing in the EV's battery. This conversion process is a pivotal step in the charging cycle, as it directly impacts both the efficiency of energy transfer and the time required to charge the vehicle.


Efficiency Matters: The Quest for Energy Conversion

Efficiency is a paramount concern in the realm of electric vehicle technology. It encompasses the ratio of usable energy stored in the battery to the total energy drawn from the grid. In simpler terms, it measures how effectively the charging system converts electrical energy into stored energy. The efficiency of an on-board charger has far-reaching implications, impacting everything from the environmental footprint of electric vehicles to the economics of operating them.

One of the key factors influencing OBC efficiency is the choice of power electronics components and the overall design of the charger. Modern OBCs employ advanced semiconductor devices and control algorithms that optimize the energy conversion process. These components are selected to minimize losses during energy conversion, thus maximizing the amount of energy transferred to the battery. Additionally, efficient thermal management systems are often integrated into OBCs to dissipate excess heat generated during the charging process, further enhancing overall efficiency.

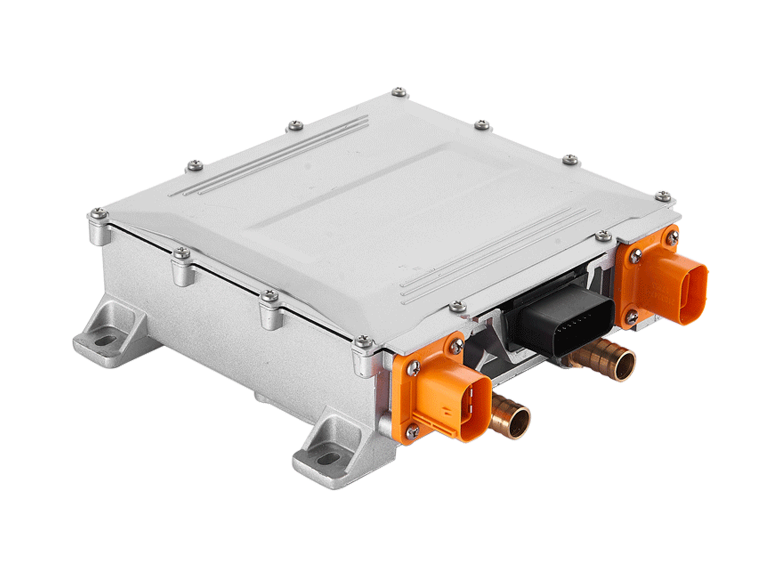

on board charger.png


The Balancing Act: Charging Time vs. Efficiency

The relationship between charging time and efficiency is a delicate balancing act that EV manufacturers and engineers must navigate. At its core, it revolves around the concept of power transfer. To reduce charging time, a higher power transfer rate is desired, requiring a more potent on-board charger. However, this pursuit of speed must be tempered by the need to maintain optimal efficiency levels. A larger, more powerful charger might achieve faster charging, but if its efficiency drops significantly, it could lead to higher energy consumption, increased heat generation, and potentially even accelerated battery degradation.

Therefore, engineers face the challenge of developing on-board chargers that strike an ideal equilibrium between charging speed and efficiency. Achieving this balance requires a comprehensive understanding of various factors, including the battery chemistry, thermal management, and power electronics, as well as the specific charging infrastructure available to the vehicle's users.


The Impact of Battery Technology

The relationship between on-board chargers, charging time, and efficiency is also intertwined with the state of battery technology. Advances in battery chemistry and design have a significant influence on the overall charging process. As battery technology evolves, the capabilities of on-board chargers must also adapt to ensure optimal performance.

Modern lithium-ion batteries, which are commonly used in EVs, have specific charging characteristics that influence the charging process. To prevent overcharging and maintain battery health, charging rates often vary throughout the charging cycle. This necessitates intelligent charging algorithms that coordinate with the on-board charger to adapt to the battery's needs. As battery technology continues to evolve, on-board chargers will need to become increasingly adaptable to these nuances, further contributing to the efficiency of the charging process.

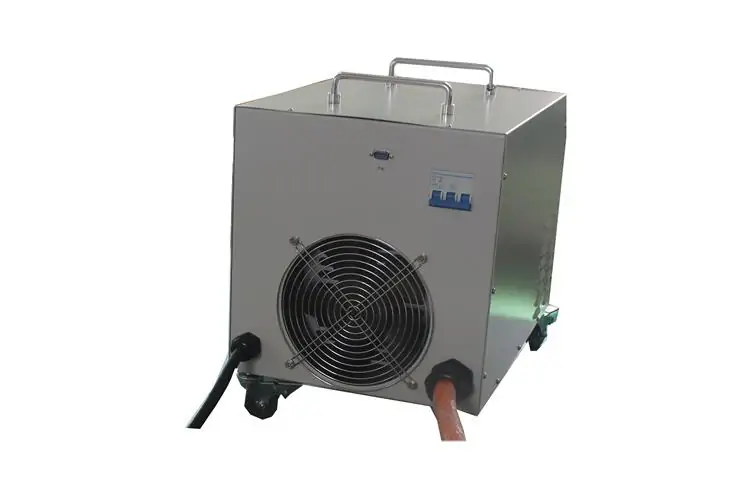

obc charger.webp


The Role of Charging Infrastructure

Efforts to improve on-board charger efficiency and charging time cannot be discussed without addressing the broader charging infrastructure. The development of high-power charging stations is instrumental in facilitating fast and efficient charging for electric vehicles. These stations are equipped with powerful chargers that can significantly reduce charging times compared to standard home charging setups.

However, the success of these high-power charging stations hinges on the compatibility and capabilities of the on-board charger within each electric vehicle. Manufacturers must ensure that their vehicles can leverage the full potential of these high-power charging stations without compromising efficiency or risking damage to the battery. This highlights the necessity of a cohesive approach that encompasses both on-board charger design and charging infrastructure development.


Conclusion: A Symbiotic Relationship

The on board charger is undeniably the heart of the electric vehicle charging process, influencing both charging time and efficiency. This critical component exemplifies the intricate dance between technology and practicality that defines the electric vehicle landscape. Striking the right balance between rapid charging and optimal energy transfer requires a multidisciplinary approach that incorporates advancements in battery technology, power electronics, thermal management, and charging infrastructure.

As the world embraces the transition to electric mobility, the evolution of on-board chargers will continue to play a pivotal role in shaping the future of transportation. The quest for maximum efficiency and minimized charging times remains an ongoing journey, driven by the collective efforts of engineers, researchers, and innovators who are dedicated to ushering in a cleaner and more sustainable automotive era.


Pub Time : 2024-02-19 11:26:57 >> News list
