On Board Charger are a win-win solution

Vicor demonstrates a modular approach to "virtual batteries" that can solve the problem of DC fast charging for electric vehicles


Many existing DC fast chargers use 400V battery packs rather than the 800V version. 2020, there are around 400,000 publicly available DC fast chargers worldwide, but only 2% support 800V vehicles. In Europe, for example, only 400 of the 40,000 charging stations support 800V.


This incompatibility can be addressed by using compact, efficient and bi-directional power modules for on board charger, says Haris Muhedinovic, Vicor's Principal Automotive Senior Field Applications Engineer.


Installing new DC fast charging stations with a wide voltage capability of 250 to 920V is one solution, but it requires a significant investment of time and money. Another approach is to upgrade a 400V charging station to support 800V, which also poses a number of challenges. Charging at speeds in excess of 150kW is not always available, and charging times can be slower than what is expected for 800V.


Instead, adding on board charger with modular DC-DC virtual batteries offers flexibility and 99% efficiency, which Muhedinovic says can be adopted much faster and without the need for bonus investment in charging infrastructure.

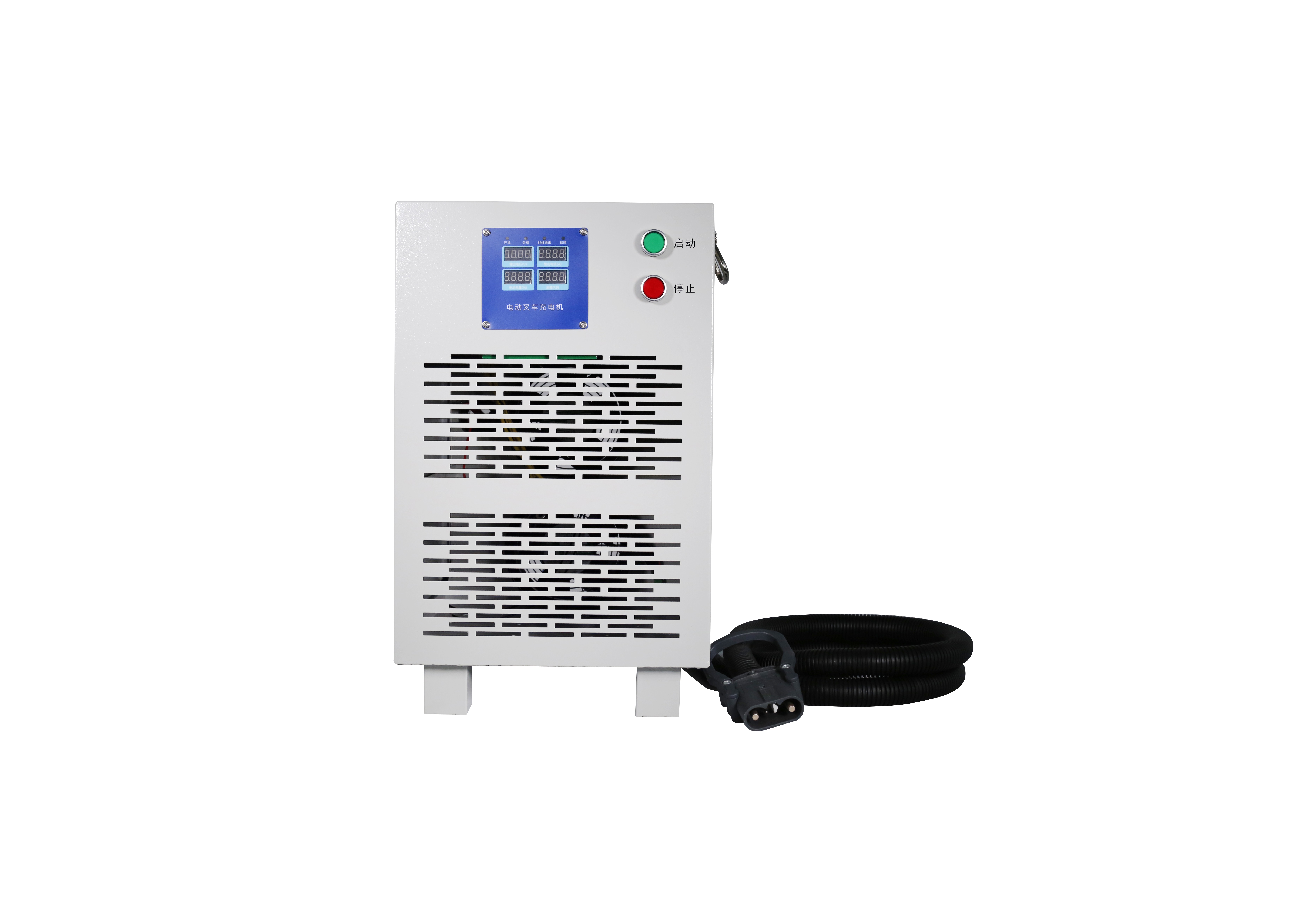

on board charger.jpg

Incompatibilities between 800V batteries and 400V chargers can be resolved by battery virtualisation. Using this technique, the charger can see the 400V battery on one side of the on-board charger even if the 800V battery is connected to the other side. This method starts with the battery voltage and adapts it to the voltage range accepted by the charging station.


Vicor NBM bi-directional modules support tens of kilowatts with power densities of 550kW/L and 130kW/kg. These use a resonant sinusoidal amplitude converter topology with zero voltage and current switching to reduce power losses by up to 50%. The fixed-ratio conversion simplifies the power supply architecture by using separate modules, while still maintaining up to 99% efficiency throughout the supply chain.


This comes from the use of higher frequencies with silicon transistors to reduce the size of the magnetic material. The resonant architecture takes into account the inductance and resistance of the components in the module to optimise efficiency.


Connecting a battery to one side of the NBM module will immediately virtualise the other side of the battery, dividing or multiplying the voltage or current by a constant factor to extend the voltage range of the charging station from 250 to 460 V and from 500 to 920 V. This increases the number of suitable charging points and makes the EV compatible with any DC charging station.


The module can also be used to maximise the efficiency of the supply system as it can integrate traction batteries to provide higher efficiency for low-speed driving. For example, city driving requires lower revs and the efficiency of the 800V traction inverter drops by more than 15%.


The module can supply half the battery voltage to the inverter in this auxiliary way, halving switching losses and extending the driving range. This is another advantage of how an integrated, modular approach to the power supply can optimise the supply network so that peak efficiency can be partially maintained using DC-DC converters.


Modular packaging technology simplifies the assembly and manufacture of electric vehicle powertrains and also provides power supply flexibility and scalability. Designers can use the same module configuration to extend charging power from 50 to 150kW without the need for additional qualification and certification.
